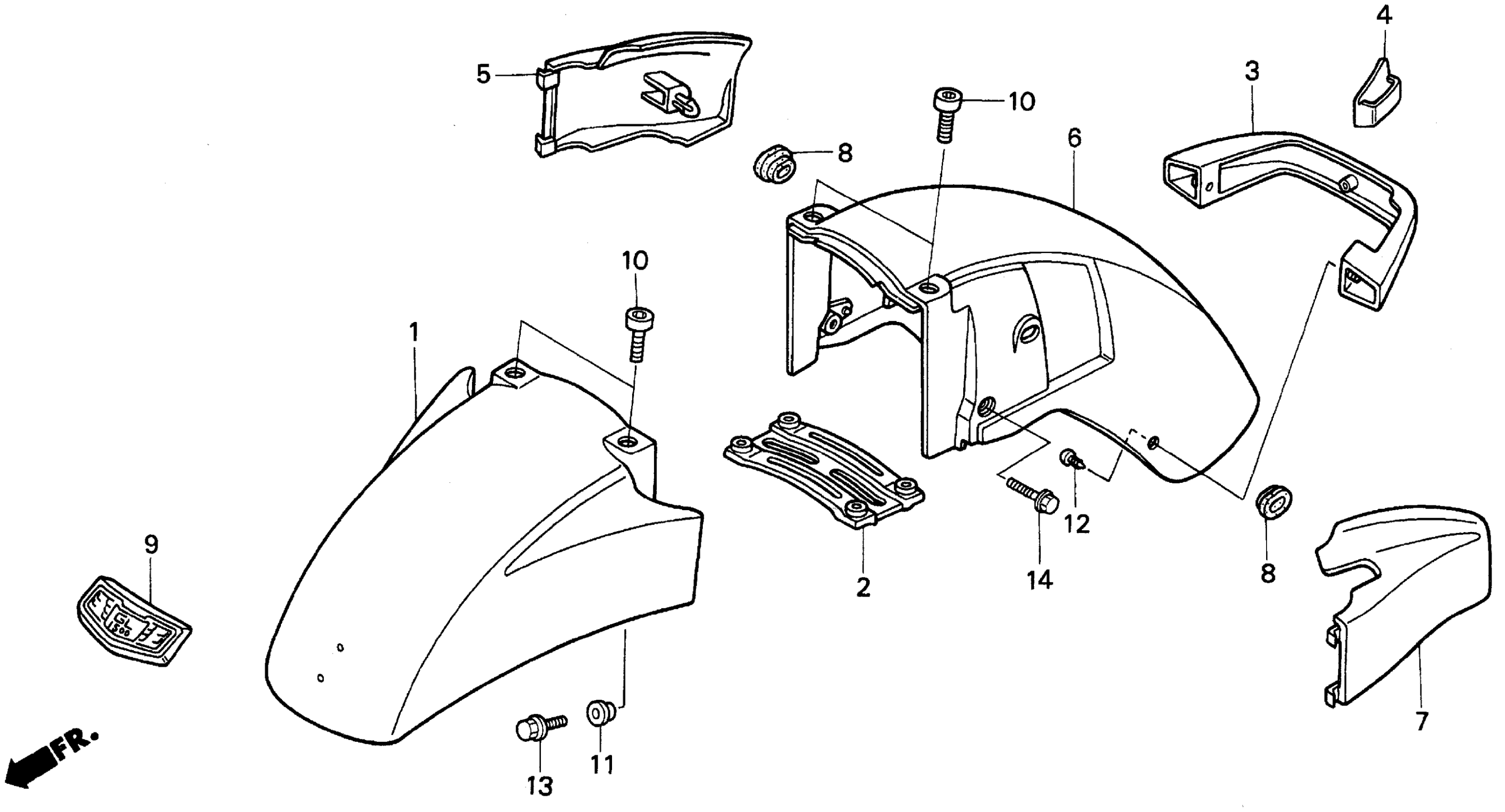

Honda GL1500AA (97) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-VA900001 FRONT FENDER Diagram

FENDER A, FR. *R176C* (CANDY SPECTRA RED)

61105-MN5-000ZN

$466.02

FENDER A, FR. *NH326P* (PEARL GLACIER WHITE)

61105-MN5-000ZS

Unavailable

FENDER A, FR. *G159P* (PEARL SONOMA GREEN)

61105-MN5-000YB

Unavailable

STAY, FENDER

61101-MN5-000

$98.34

GUARD, FENDER *TMRCR2* (CHROME PLATING) This part replaces 61102-MW5-000ZA.

61102-MW5-000ZK

Unavailable

GUARD, FENDER *TMRCR2* (CHROME PLATING)

61102-MW5-000ZK

Unavailable

GUIDE, CABLE

61103-MN5-000

Unavailable

COVER, R. FR. FENDER *R176C* (CANDY SPECTRA RED)

61104-MN5-000ZN

Unavailable

COVER, R. FR. FENDER *NH326P* (PEARL GLACIER WHITE)

61104-MN5-000ZQ

$212.64

COVER, R. FR. FENDER *G159P* (PEARL SONOMA GREEN)

61104-MN5-000ZY

Unavailable

FENDER B, FR. *R176C* (CANDY SPECTRA RED)

61106-MN5-000ZN

Unavailable

FENDER B, FR. *NH326P* (PEARL GLACIER WHITE)

61106-MN5-000ZS

Unavailable

FENDER B, FR. *G159P* (PEARL SONOMA GREEN)

61106-MN5-000YB

$319.90

COVER, L. FR. FENDER *R176C* (CANDY SPECTRA RED)

61114-MN5-000ZN

Unavailable

COVER, L. FR. FENDER *NH326P* (PEARL GLACIER WHITE)

61114-MN5-000ZQ

Unavailable

COVER, L. FR. FENDER *G159P* (PEARL SONOMA GREEN)

61114-MN5-000ZY

Unavailable

GROMMET, SPEAKER PANEL

64266-MG9-770

$2.99

EMBLEM, FR. FENDER This part replaces 87124-MT8-000.

87124-MT8-010

Unavailable

BOLT, SOCKET (7X17)

90124-MN5-000

Unavailable

WASHER, FLANGE (6X3.5)

90555-197-890

$3.10

SCREW, TAPPING (4X10)

93903-24220

$1.49

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

BOLT, FLANGE (6X16)

95701-06016-08

$1.49
