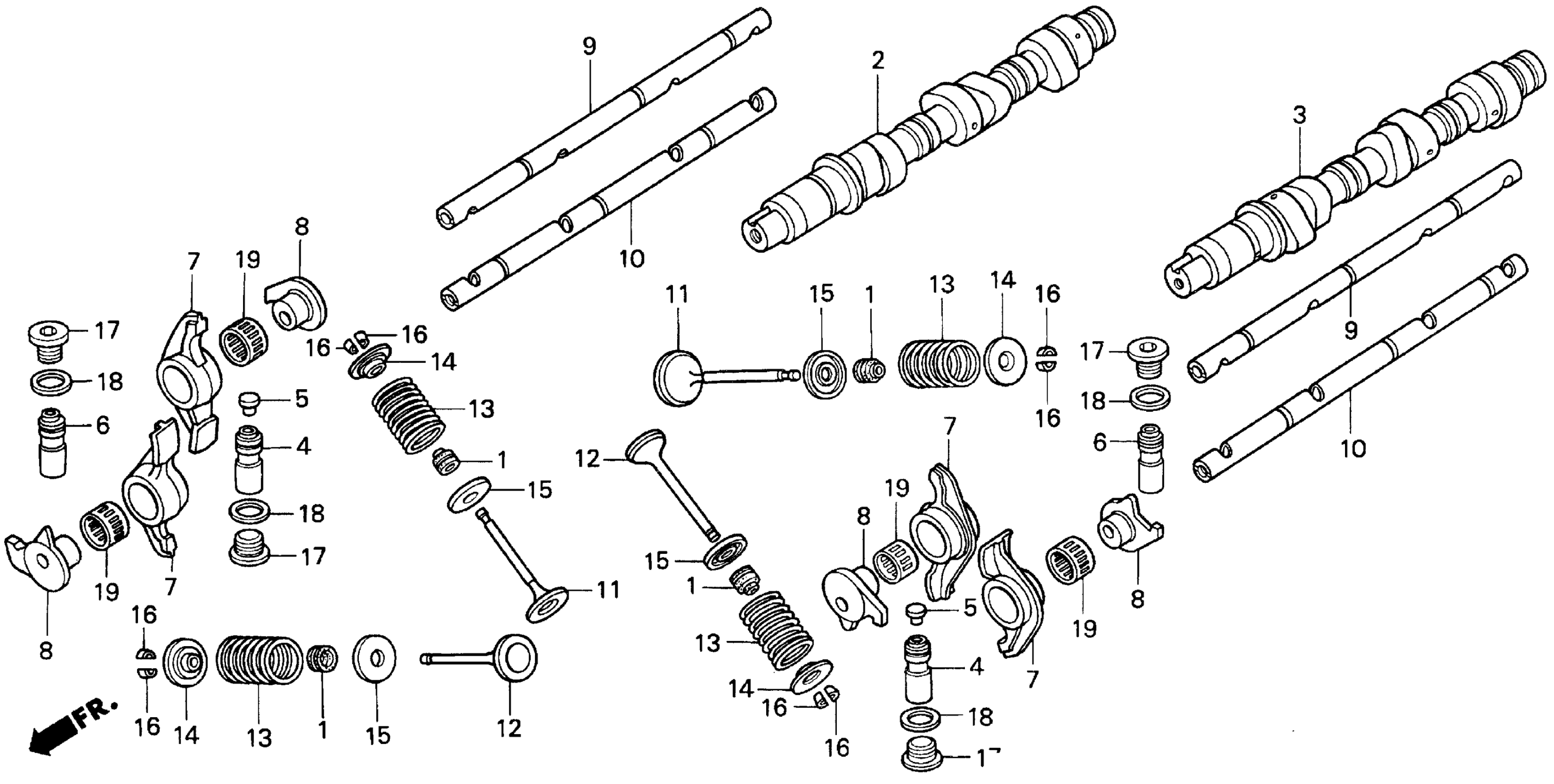

Honda GL1500AA (96) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-TA800001 CAMSHAFT Diagram

SEAL, VALVE STEM

12209-422-005

$13.08

CAMSHAFT, R. This part replaces 14110-MT8-000.

14110-MAM-A60

Unavailable

CAMSHAFT, R.

14110-MAM-A60

Unavailable

CAMSHAFT, L. This part replaces 14120-MT8-000.

14120-MAM-A60

Unavailable

CAMSHAFT, L.

14120-MAM-A60

Unavailable

ADJUSTER, IN. HYDRAULIC LASH

14450-MN5-000

Unavailable

CAP, HYDRAULIC LASH ADJUSTER

14454-MN5-000

$6.86

ADJUSTER, EX. HYDRAULIC LASH

14460-MN5-000

$56.59

ARM, VALVE ROCKER

14611-MZ3-000

Unavailable

LOBE, VALVE ROCKER ARM

14621-MZ3-003

Unavailable

SHAFT, IN. ROCKER ARM

14630-MN5-010

$58.65

SHAFT, EX. ROCKER ARM

14640-MN5-010

Unavailable

VALVE, IN.

14711-MZ3-000

$38.49

VALVE, EX.

14721-MZ3-000

$67.80

SPRING, VALVE

14761-MN5-000

Unavailable

RETAINER, VALVE SPRING

14771-MN5-000

$10.42

SEAT, VALVE SPRING

14775-MN5-000

Unavailable

COTTER, VALVE

14781-MB4-000

$2.96

BOLT, HYDRAULIC LASH ADJUSTER STOPPER

90032-MG9-000

$8.90

SHIM, HYDRAULIC LASH ADJUSTER STOPPER (1.0)

90491-MG9-000

$3.03

BEARING, NEEDLE (21X25X15.8) (NTN CORP.)

91012-MZ3-003

Unavailable
