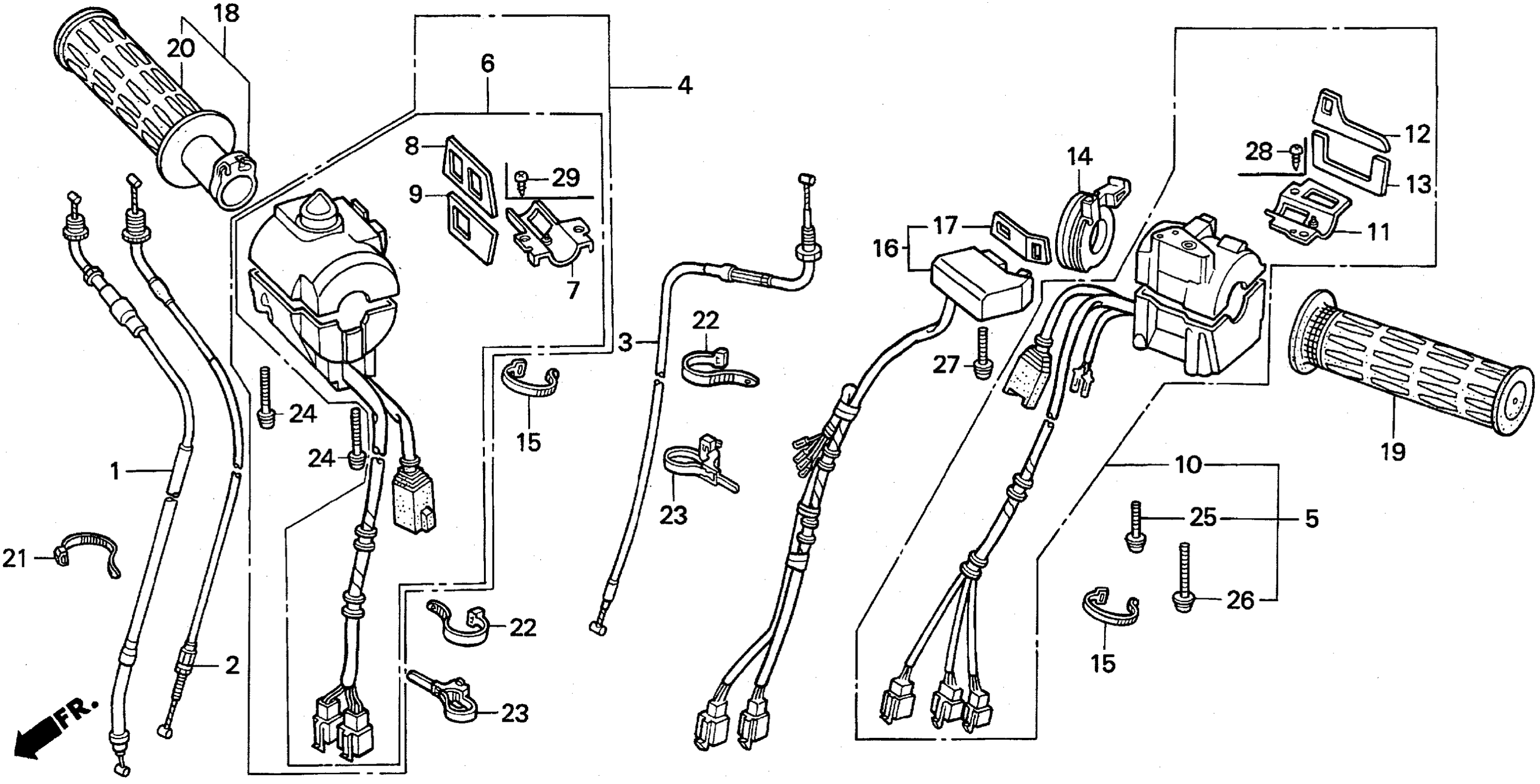

Honda GL1500AA (96) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-TA800001 A HANDLE + SWITCH + CABLES Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MT8-004

$43.95

2

CABLE, HANDLE THROTTLE

17920-MT8-004

$47.74

3

CABLE, CHOKE

17950-MN5-004

$41.83

6

SWITCH ASSY., STARTER STOP & CRUISE

35130-MT2-003

Unavailable

7

PLATE, STOP SWITCH SETTING

35132-MN5-010

Unavailable

8

PLATE A, ORNAMENT

35133-MN5-000

Unavailable

9

PLATE B, ORNAMENT

35134-MN5-000

Unavailable

10

SWITCH ASSY., TURN SIGNAL

35200-MW5-013

Unavailable

11

PLATE, TURN SIGNAL SETTING

35202-MN5-010

Unavailable

12

PLATE A, ORNAMENT

35203-MN5-000

Unavailable

13

PLATE B, ORNAMENT

35204-MN5-000

Unavailable

14

LEVER, CHOKE

35209-MN5-000

Unavailable

15

BAND (BLACK 3.5X140)

35701-MG9-950

$1.81

16

SWITCH ASSY., AUDIO

39210-MAM-A01

Unavailable

17

PLATE, ORNAMENT

39212-MAM-A01

Unavailable

18

GRIP, R.

53145-MG9-680

Unavailable

19

GRIP, L. HANDLEBAR

53167-MG9-315

$9.08

20

GRIP, R. HANDLEBAR

53168-MG9-315

$12.34

22

BAND, WIRE HARNESS

90651-MA6-720

$3.47

23

CLIP, HARNESS BAND (25MM)

90690-GHB-611

$1.99

23

CLIP, CABLE (20MM)

90690-GHB-661

$1.99

24

SCREW-WASHER (5X25)

93892-05025-07

$0.99

24

SCREW-WASHER (5X25) This part replaces 93892-05026-07.

93892-05025-07

$0.99

25

SCREW-WASHER (5X28)

93892-05028-07

$0.80

26

SCREW-WASHER (5X45)

93892-05045-07

$1.17

27

SCREW-WASHER (5X32)

93893-05032-08

Unavailable

28

SCREW, TAPPING (3X8)

93901-32120

$0.75

29

SCREW, TAPPING (3X10)

93901-32220

$0.83
