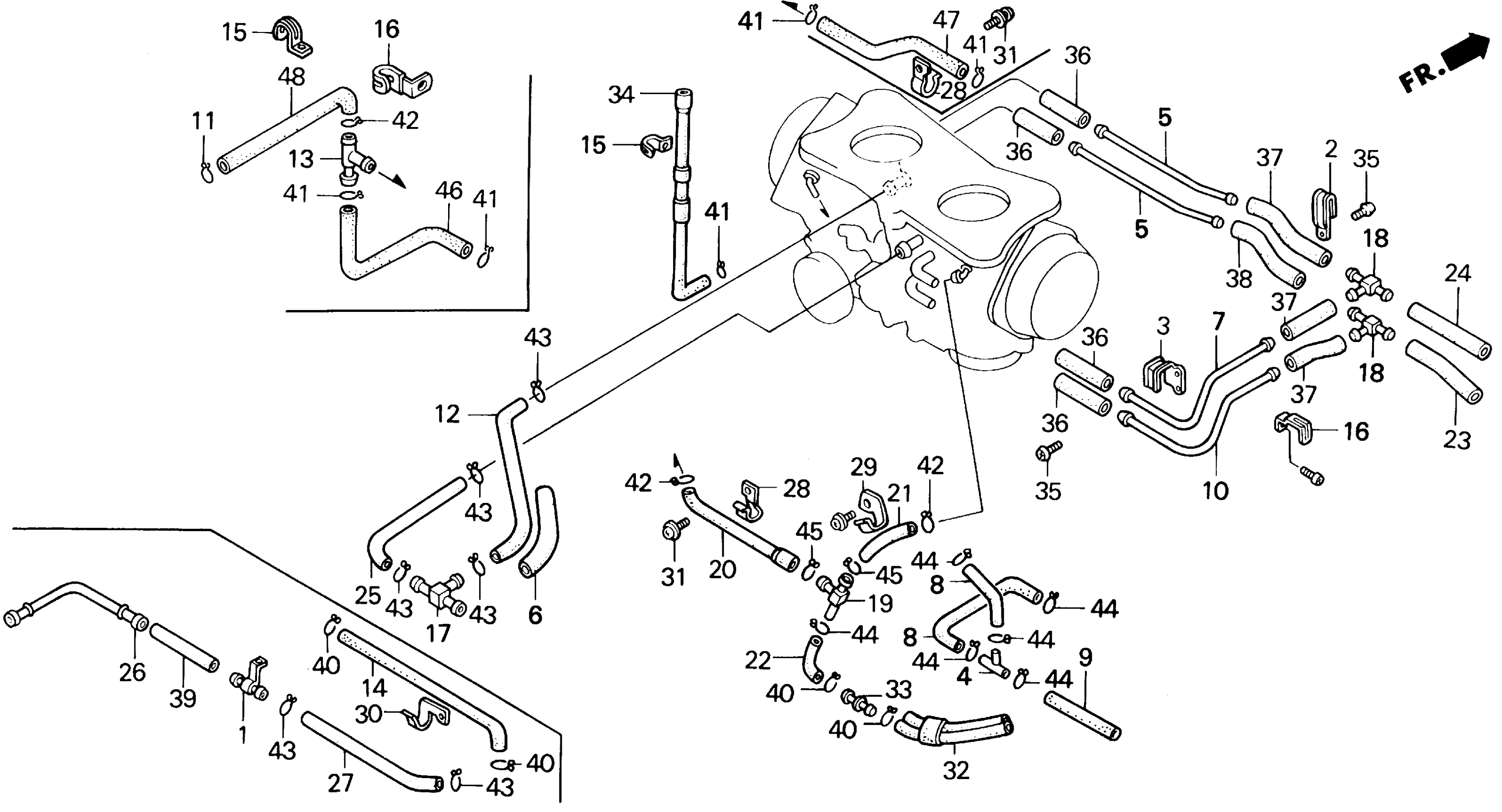

Honda GL1500AA (95) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-SA700001 TUBING 1 Diagram

#

Description
Price

2

BINDER

16134-MT8-000

Unavailable

3

BINDER

16135-MT8-000

Unavailable

4

JOINT (T-TYPE)

16180-195-731

$11.63

5

TUBE

16197-MT8-000

Unavailable

6

TUBE

16198-MN5-000

Unavailable

7

TUBE

16198-MT8-000

Unavailable

8

TUBE, AIR VENT This part replaces 16199-GG2-701.

16199-428-405

$2.88

9

TUBE This part replaces 16199-MN5-000.

16199-MN5-405

$10.64

10

TUBE

16199-MT8-000

Unavailable

12

TUBE, FUEL

17180-MN5-000

$10.54

15

CLIP, PLATE

17191-MN5-740

Unavailable

16

CLIP, PLATE

17191-MT2-740

$3.38

17

T-JOINT

17193-MT2-000

$11.83

18

T-JOINT

17194-MN5-000

$11.13

19

T-JOINT

17194-MT2-000

Unavailable

20

TUBE

17282-MT2-000

Unavailable

21

TUBE

17283-MT2-000

Unavailable

22

TUBE

17285-MT2-010

Unavailable

23

TUBE, AIR PRIMARY (F)

17288-MN5-010

Unavailable

24

TUBE, AIR PRIMARY (E)

17289-MN5-000

$12.67

25

TUBE This part replaces 17290-MN5-000.

16143-KV0-405

$6.62

28

BINDER

17312-MT2-000

Unavailable

29

BINDER

17313-MT2-000

Unavailable

31

SCREW-WASHER (4X6)

93892-04006-00

$0.46

31

SCREW-WASHER (4X6) This part replaces 93892-04006-10.

93892-04006-00

$0.46

32

TUBE, DRAIN

17316-MT2-010

Unavailable

33

JOINT (3.5) (TWO-WAY)

17414-PC6-660

$7.04

34

TUBE

17458-MY4-000

Unavailable

35

SCREW-WASHER (5X10)

93892-05010-00

$0.46

35

SCREW-WASHER (5X10) This part replaces 93892-05010-10.

93892-05010-00

$0.46

36

BULK HOSE, FUEL (4.5X3000) (4.5X30)

95001-45003-60M

$32.93

37

BULK HOSE, FUEL (4.5X3000) (4.5X40)

95001-45003-60M

$32.93

38

BULK HOSE, FUEL (4.5X3000) (4.5X50)

95001-45003-60M

$32.93

40

CLIP, TUBE (B7)

95002-02070

$1.59

41

CLIP, TUBE (B8)

95002-02080

$1.59

42

CLIP, TUBE (B10)

95002-02100

$1.72

43

CLIP, TUBE (B12)

95002-02120

Unavailable

44

CLIP, TUBE (B6.5)

95002-02650

$1.35

45

CLIP, TUBE (C11)

95002-70000

$1.49
