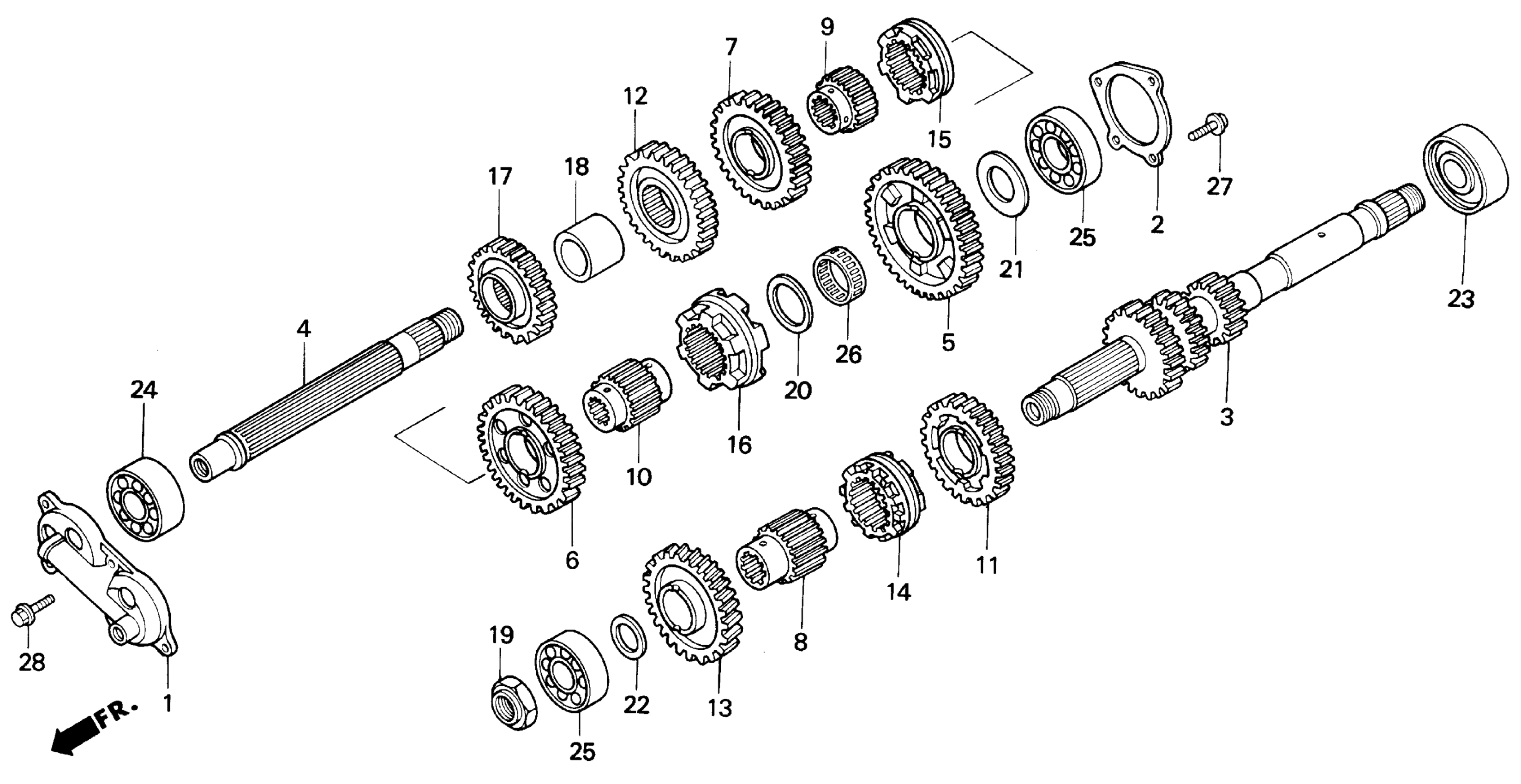

Honda GL1500AA (95) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-SA700001 TRANSMISSION Diagram

#

Description
Price

1

HOLDER, TRANSMISSION BEARING

23150-MN5-000

$87.67

2

PLATE, COUNTERSHAFT BEARING SETTING

23161-MN5-000

Unavailable

3

MAINSHAFT (22T/18T/15T)

23210-MN5-000

Unavailable

4

COUNTERSHAFT

23220-MN5-000

$150.54

5

GEAR, COUNTERSHAFT LOW (40T)

23421-MT8-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (31T)

23441-MT8-000

Unavailable

7

GEAR, COUNTERSHAFT THIRD (28T)

23451-MT8-000

Unavailable

8

COLLAR, SPLINE (28X43X69) (24T)

23455-MN5-010

Unavailable

9

COLLAR, SPLINE (28X43X34.4)

23456-MT8-000

$82.89

10

COLLAR, SPLINE (28X43X59.4) (24T)

23457-MN5-000

$101.59

11

GEAR, MAINSHAFT FOURTH (28T) (NA USE ALT:23010-MAM-305)

23461-MT8-000

Unavailable

12

GEAR, COUNTERSHAFT FOURTH (27T) This part replaces 23471-MT8-000.

23471-MZ0-610

Unavailable

12

GEAR, COUNTERSHAFT FOURTH (27T)

23471-MZ0-610

Unavailable

13

GEAR, MAINSHAFT FIFTH (29T)

23481-MN5-000

Unavailable

14

SHIFTER, FR. (NA USE ALT:23010-MAM-305)

23483-MT8-000

Unavailable

15

SHIFTER, CENTER

23484-MT8-000

Unavailable

16

SHIFTER, RR.

23485-MT8-000

Unavailable

17

GEAR, COUNTERSHAFT FIFTH (22T)

23491-MAM-A60

Unavailable

17

GEAR, COUNTERSHAFT FIFTH (22T) This part replaces 23491-MT8-000.

23491-MAM-A60

Unavailable

18

COLLAR (27.8X35X28)

23492-MT8-000

$19.00

19

NUT, HEX. (22MM) This part replaces 90201-MN5-000.

90201-MZ0-000

$11.89

19

NUT, HEX. (22MM)

90201-MZ0-000

$11.89

20

WASHER (35.2X46X1.6)

90467-MN5-000

$8.16

21

WASHER (25X47X2.6)

90468-MN5-000

$8.16

22

WASHER (25X40X2.6)

90471-MN5-000

$9.36

23

BEARING, BALL (28X54X20.6) (NTN CORP.)

91001-MN5-003

$74.13

24

BEARING, RADIAL BALL (63/22) (KOYO)

91003-MN5-003

Unavailable

25

BEARING, RADIAL BALL (6305) (NTN CORP.)

91006-MN5-003

$33.95

26

BEARING, NEEDLE (35X40X16) (NTN CORP.)

91014-MN5-003

Unavailable

27

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

28

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
