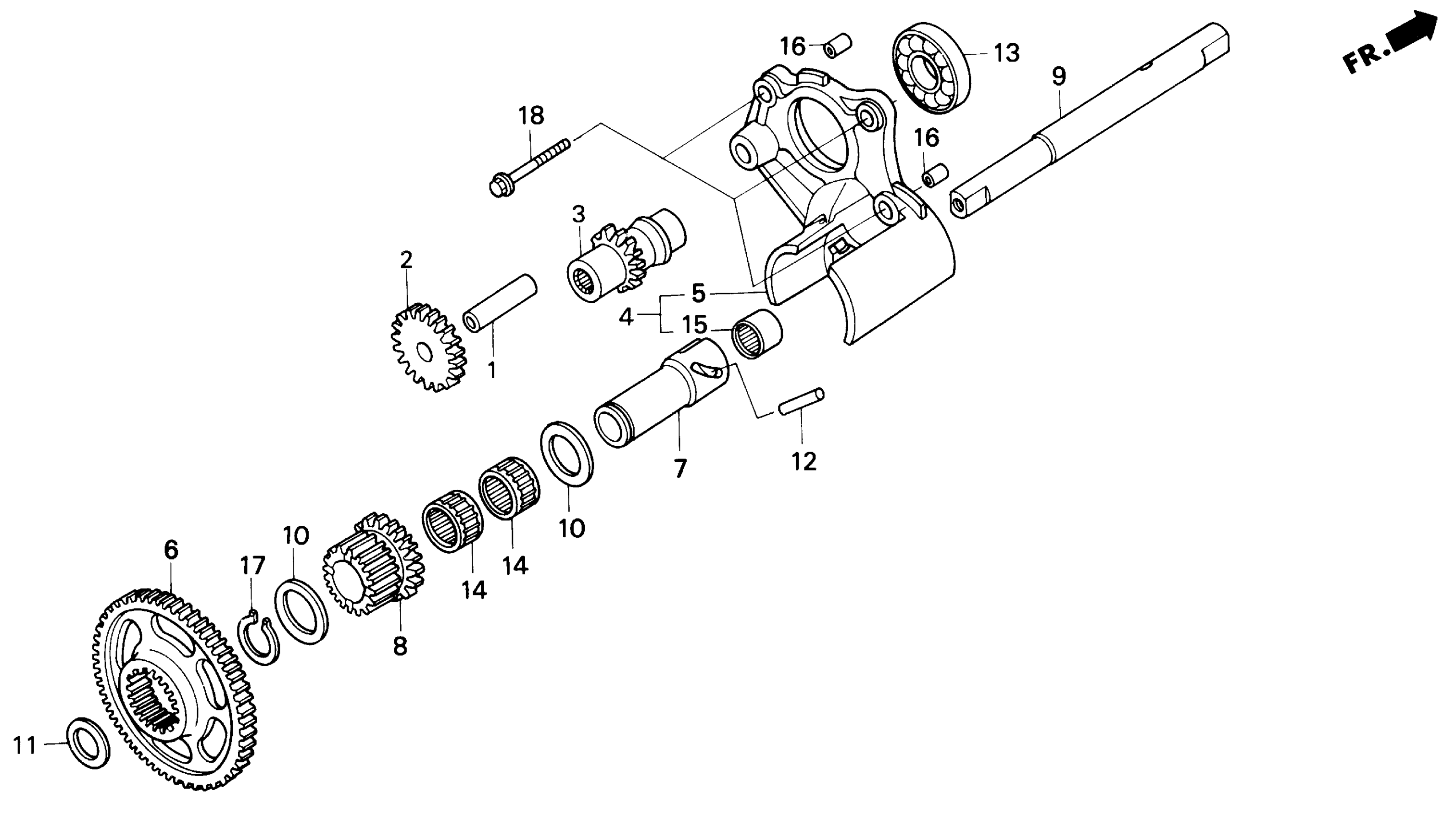

Honda GL1500AA (95) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-SA700001 REVERSE GEAR Diagram

PIN, PISTON This part replaces 13111-GK8-000.

13111-GS7-000

$9.55

PIN, PISTON

13111-GS7-000

$9.55

PIN, PISTON This part replaces 13111-122-000.

13111-GS7-000

$9.55

GEAR, STARTER IDLE (19T)

28106-MN5-010

$33.65

GEAR, STARTER DRIVE (15T)

28141-MN5-000

Unavailable

HOLDER, STARTER DRIVE GEAR

28150-MN5-000

Unavailable

GEAR, REVERSE IDLE (46T)

28162-MN5-000

$134.18

SHIFTER, REVERSE

28165-MN5-000

$134.15

GEAR, REVERSE SHIFT (18T)

28171-MN5-000

$89.21

SHAFT, REVERSE SHIFTER

28211-MN5-000

$46.05

WASHER B, THRUST (30X1.7)

90409-ML4-610

$4.59

WASHER (12.2X23X1.6)

90492-MN5-000

$4.59

ROLLER (5X25)

90702-MN5-000

$2.90

BEARING, RADIAL BALL (6904) (NTN CORP.)

91007-MN5-003

$14.93

BEARING, NEEDLE (20X24X17)

91051-727-000

$28.76

BEARING, NEEDLE

91101-121-691

$27.17

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

BOLT, FLANGE (6X32)

95701-06032-08

$1.89
