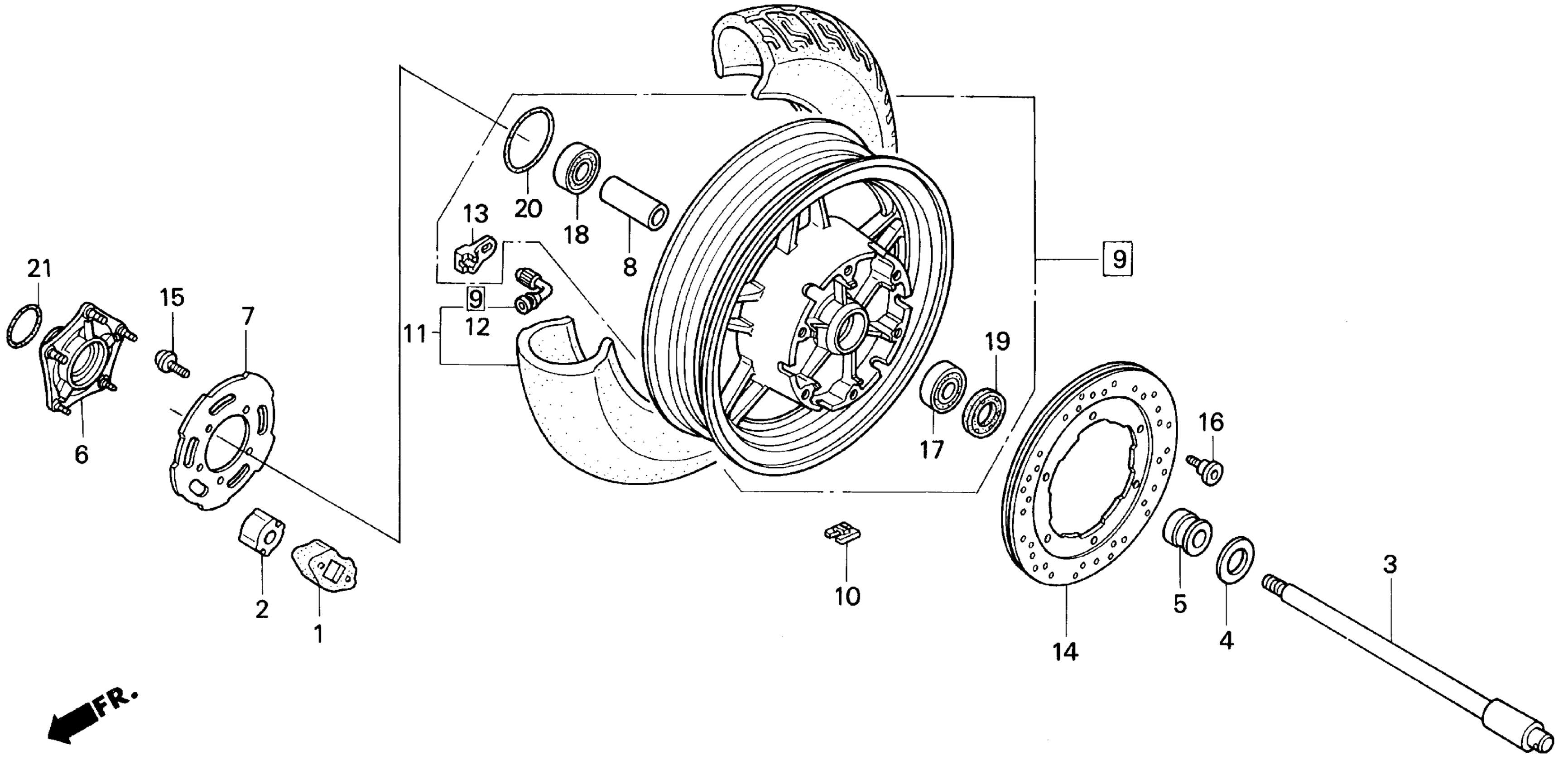

Honda GL1500AA (95) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-SA700001 REAR WHEEL Diagram

DAMPER, RR. WHEEL

41241-MT8-003

$27.02

PIECE, DAMPER WHEEL

41242-MR5-000

$17.49

AXLE, RR. WHEEL

42301-MN5-000

Unavailable

SPACER, RR. BRAKE SIDE

42312-463-000

$13.39

COLLAR, RR. BRAKE PANEL SIDE

42313-422-000

$38.23

FLANGE SET, FINAL DRIVEN This part replaces 42614-MT8-010.

42630-MT8-305

$309.64

FLANGE SET, FINAL DRIVEN

42630-MT8-305

$309.64

HOLDER, DAMPER

42617-MT8-000

$42.97

COLLAR, RR. AXLE DISTANCE

42620-MW5-000

Unavailable

WHEEL SET, RR. This part replaces 42650-MW5-305.

42650-MW5-315

Unavailable

WHEEL SET, RR.

42650-MW5-315

Unavailable

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

WEIGHT, BALANCE (30)

42706-MCF-D60

$14.48

TIRE, RR. (160/80-16) (M/C 75H) (DUNLOP) This part replaces 42710-MN5-005.

42711-MN5-025

Unavailable

TIRE, RR. (160/80-16) (M/C 75H) (DUNLOP) This part replaces 42711-MN5-005.

42711-MN5-025

Unavailable

TIRE, RR. (160/80-16) (M/C 75H) (DUNLOP) This part replaces 42711-MN5-015.

42711-MN5-025

Unavailable

VALVE, RIM (DUNLOP)

42753-MN5-004

$16.38

HOLD, RIM VALVE

42754-MN5-000

$5.12

DISK, RR. BRAKE

43251-MT8-000

$494.08

BOLT, DISK (6X17)

90105-KN5-000

$3.89

BOLT, FR. DISK (8X24)

90105-KR3-000

$6.07

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$27.50

BEARING, RADIAL BALL (20X47X20.6) (TOYO)

91053-MN5-003

$74.94

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$12.13

DUST SEAL (30X47X8)

91253-443-762

$12.13

O-RING (61X2)

91302-MA6-003

$5.17

O-RING (50.5X3.5) (ARAI)

91358-MG9-003

$3.76
