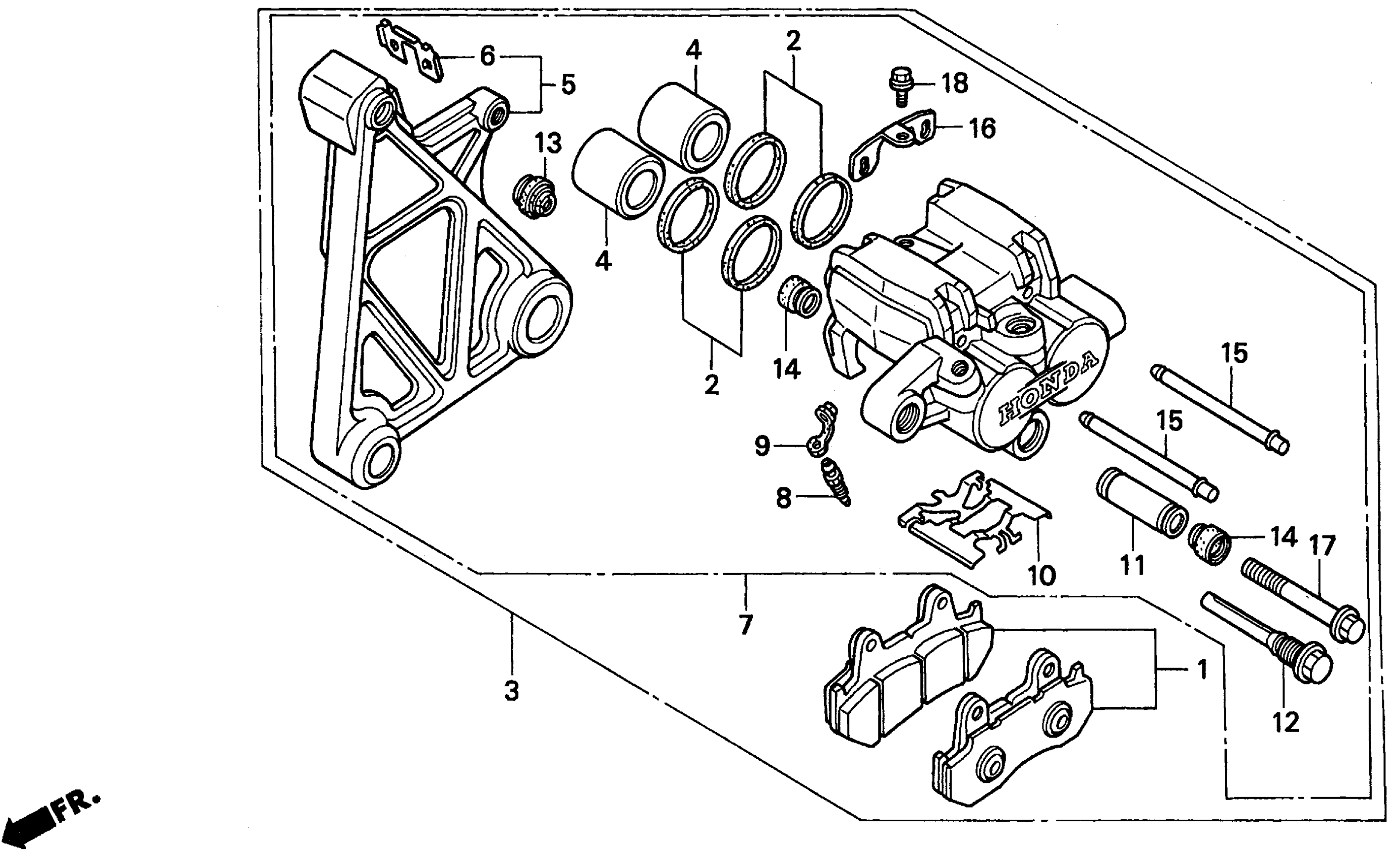

Honda GL1500AA (95) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-SA700001 REAR BRAKE CALIPER Diagram

#

Description
Price

1

PAD SET, RR.

06435-MT8-405

$52.90

2

SEAL SET, PISTON

06451-MA7-405

$9.77

4

PISTON

43107-MA7-006

$41.82

5

BRACKET, RR.

43110-MT8-006

Unavailable

6

RETAINER, RR. BRACKET

43112-445-631

Unavailable

7

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-MT8-305

Unavailable

8

SCREW, BLEEDER

43352-568-003

$9.83

9

CAP, BLEEDER

43353-461-771

$4.83

10

SPRING, PAD

45108-MA2-006

Unavailable

11

SLEEVE

45111-MA3-006

$12.28

12

PIN, BOLT

45131-MA3-006

$16.14

13

BOOT B

45133-MA3-006

$5.21

14

BOOT, PIN

45133-166-016

$3.43

15

PIN, HANGER

45215-MA2-006

Unavailable

16

PLATE

45217-MA3-006

$4.24

17

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$5.80

18

BOLT, FLANGE (6X10)

96001-06010-07

$1.50
