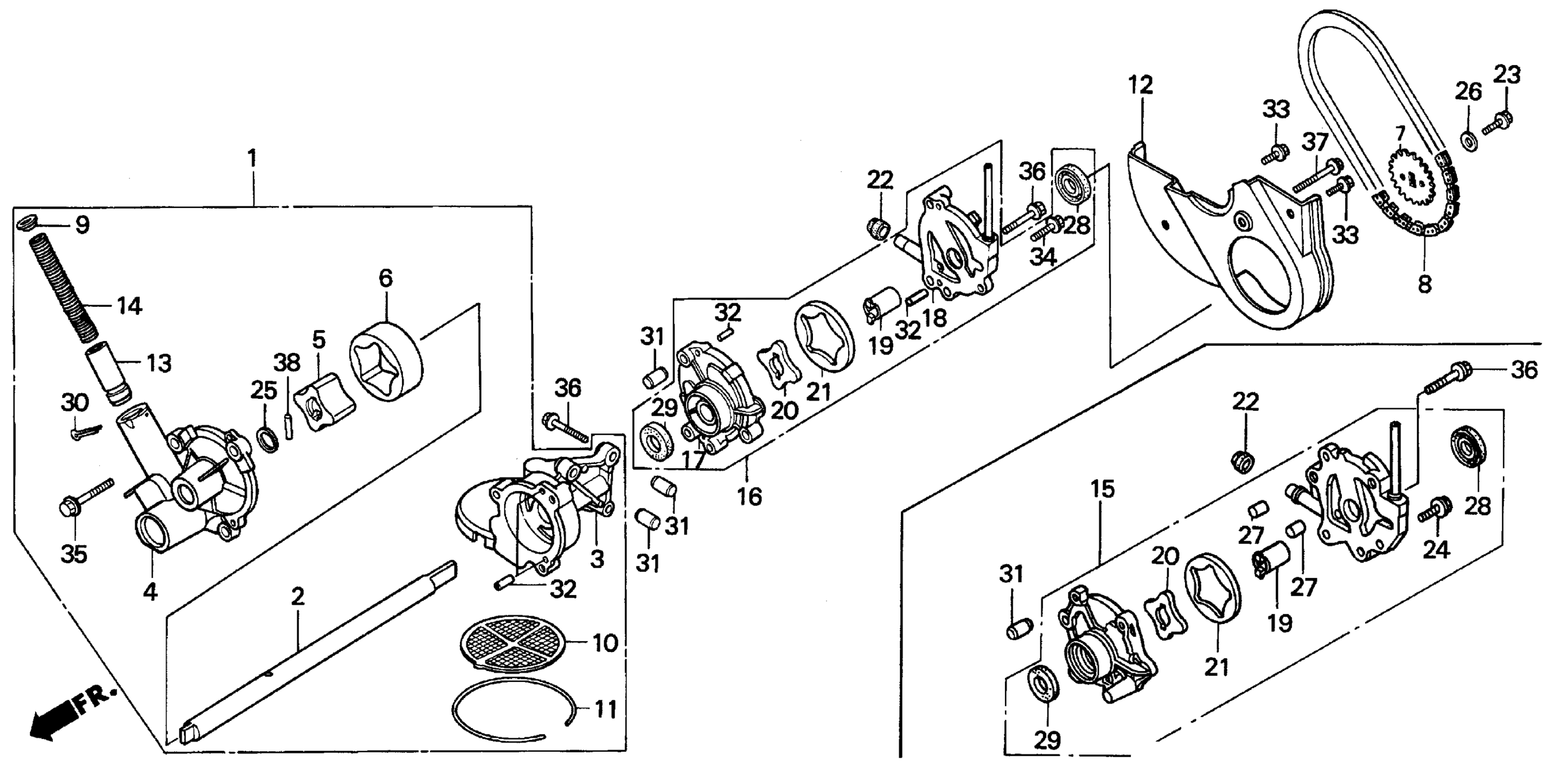

Honda GL1500AA (95) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-SA700001 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15110-MN5-030

Unavailable

2

SHAFT, OIL PUMP

15111-MN5-020

Unavailable

5

ROTOR (INNER)

15124-MJ0-000

Unavailable

6

ROTOR (OUTER)

15125-MJ0-000

$21.54

7

SPROCKET, OIL PUMP DRIVEN (24T)

15134-MN5-000

Unavailable

8

CHAIN, OIL PUMP DRIVE (SC-0412HX54L) (DAIDO)

15135-MN5-003

Unavailable

9

SEAT, RELIEF VALVE

15142-371-000

Unavailable

10

SCREEN, OIL PUMP

15150-MG7-000

Unavailable

11

RING, SNAP (92MM)

15160-PA5-003

Unavailable

12

GUIDE, OIL PUMP CHAIN

15171-MN5-000

Unavailable

13

VALVE, RELIEF

15231-MN5-010

Unavailable

14

SPRING, RELIEF VALVE

15232-MN5-000

Unavailable

15

PUMP ASSY., SCAVENGE OIL

15240-MAM-000

$141.01

19

COLLAR, OIL PUMP

15243-MN5-010

Unavailable

20

ROTOR (INNER)

15244-MN5-000

Unavailable

21

ROTOR (OUTER)

15245-MN5-000

Unavailable

22

GROMMET, SCAVENGE OIL PUMP

15247-MN5-000

Unavailable

23

BOLT, HEX. (6X16)

90021-KE8-010

$2.07

24

BOLT, FLANGE (6X25)

90121-952-000

$2.04

25

WASHER, THRUST (12MM)

90456-MC7-000

$2.48

26

WASHER (6X2.3)

90488-MB0-000

$4.38

27

PIN, DOWEL (8X14)

90501-MB0-000

$2.84

28

OIL SEAL (16X24X4)

91211-MN5-003

Unavailable

29

OIL SEAL (13X21X4)

91212-MN5-003

$7.30

30

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

30

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

30

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

30

PIN, COTTER (3.0X45)

94201-30450

$0.94

31

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.04

32

PIN, DOWEL (5X8)

94303-05080

$2.04

33

BOLT, FLANGE (6X14)

95701-06014-08

$1.48

35

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

36

BOLT, FLANGE (6X32)

95701-06032-08

$1.71

37

BOLT, FLANGE (6X45)

95701-06045-08

$1.97

38

ROLLER (5X17.8)

96220-50178

$0.72
