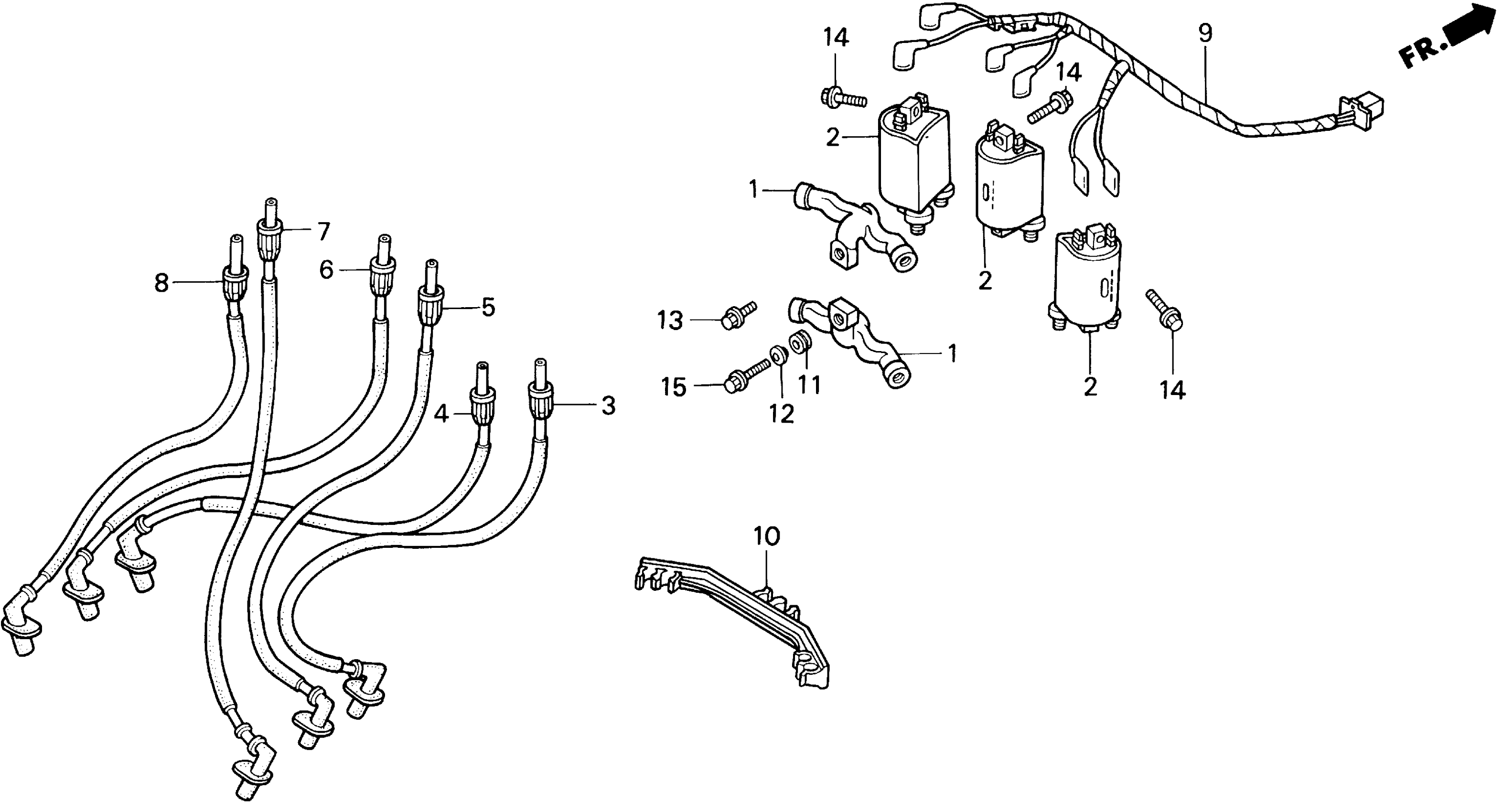

Honda GL1500AA (95) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-SA700001 IGNITION COIL Diagram

#

Description

Price

1

STAY, IGNITION COIL

30501-MN5-000

Unavailable

2

COIL, IGNITION

30510-KT7-023

$142.15

3

CAP ASSY. 1, IGNITION This part replaces 30751-MT8-003.

30751-MT8-601

Unavailable

4

CAP ASSY. 2, IGNITION This part replaces 30752-MT8-003.

30752-MT8-601

$46.85

5

CAP ASSY. 3, IGNITION This part replaces 30753-MT8-003.

30753-MT8-601

$44.77

6

CAP ASSY. 4, IGNITION This part replaces 30754-MT8-003.

30754-MT8-601

Unavailable

7

CAP ASSY. 5, IGNITION This part replaces 30755-MT8-003.

30755-MT8-601

$46.85

8

CAP ASSY. 6, IGNITION This part replaces 30756-MT8-003.

30756-MT8-601

Unavailable

9

SUB-WIRE, IGNITION COIL

32050-MT2-000

Unavailable

10

CLAMP A, IGNITION WIRE

32981-MT8-003

Unavailable

11

RUBBER, OIL COOLER SETTING

61329-MJ6-000

Unavailable

12

COLLAR, HEADLIGHT BRACKET

90501-MJ6-000

$4.48

13

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

14

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

15

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
