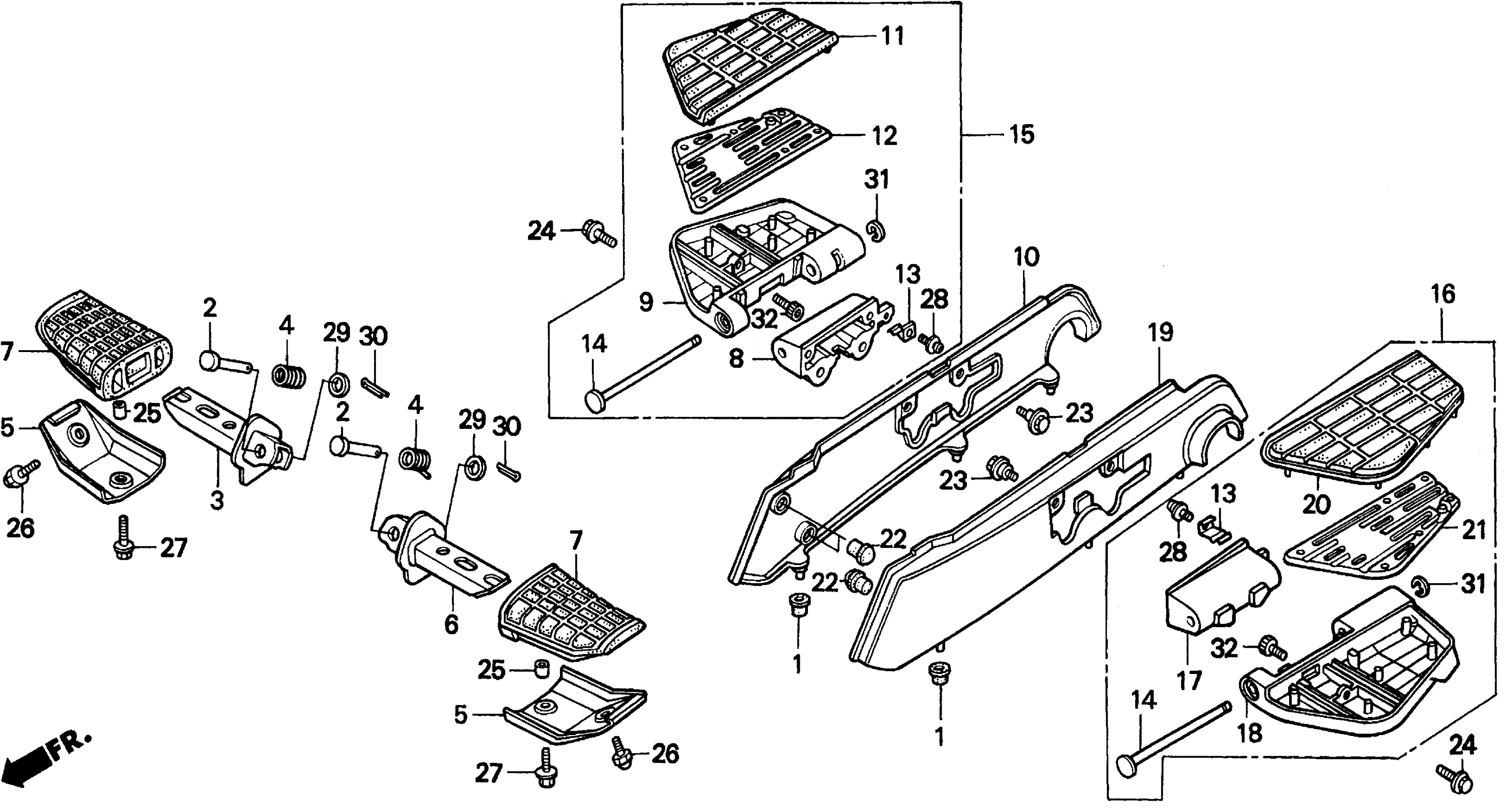

Honda GL1500AA (95) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-SA700001 GL1500A STEP Diagram

#

Description
Price

1

RUBBER, RADIATOR SETTING

19113-MB1-870

$3.47

2

PIN, STEP PIVOT

50603-MN5-000

Unavailable

3

BAR, R. STEP

50612-MT2-000

$57.36

4

SPRING, STEP RETURN

50617-MB1-700

$5.80

5

COVER, STEP (LOWER)

50619-MN5-000

$25.90

6

BAR, L. STEP

50642-MT2-000

$57.36

7

RUBBER, MAIN STEP

50661-MN5-000

$20.38

8

HOLDER, R. PILLION STEP

50715-MN5-010

Unavailable

9

PLATE, R. PILLION STEP

50716-MT8-000

Unavailable

10

COVER, R. PILLION STEP HOLDER

50717-MW5-000

$71.74

11

RUBBER, R. PILLION STEP

50718-MN5-000

$24.48

12

PLATE, R. FOOT

50719-MN5-000

Unavailable

13

SPRING, PILLION STEP

50720-MN5-000

$5.03

14

PIN, PILLION STEP

50721-MT8-000

Unavailable

15

HOLDER ASSY., R. STEP

50730-MT8-000

Unavailable

16

HOLDER ASSY., L. STEP

50740-MT8-000

Unavailable

17

HOLDER, L. PILLION STEP

50815-MN5-010

Unavailable

18

PLATE, L. PILLION STEP

50816-MT8-000

Unavailable

19

COVER, L. PILLION STEP HOLDER

50817-MW5-000

$71.74

20

RUBBER, L. PILLION STEP

50818-MN5-000

$27.82

21

PLATE, L. FOOT

50819-MN5-000

$21.21

22

CAP, RR. BUMPER

84103-443-611

$4.23

23

BOLT, FLANGE (6MM)

90113-GF0-000

$4.24

24

BOLT, FLANGE (8X25) (NOT AVAILABLE)

90119-383-000

Unavailable

25

COLLAR, RR. SPLASH GUARD

90325-197-000

$3.41

26

BOLT, CAP (6X8)

92501-06008-0B

Unavailable

27

BOLT-WASHER (8X25)

93403-06020-00

$2.00

28

SCREW-WASHER (5X12)

93893-05012-08

$1.49

29

WASHER, PLAIN (8MM)

94102-08000

$1.49

30

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

30

PIN, COTTER (1.6X25)

94201-16250

$1.49

31

E-RING (7MM)

94540-07010

$2.30

32

BOLT, SOCKET (6X16)

96600-06016-08

$1.74
