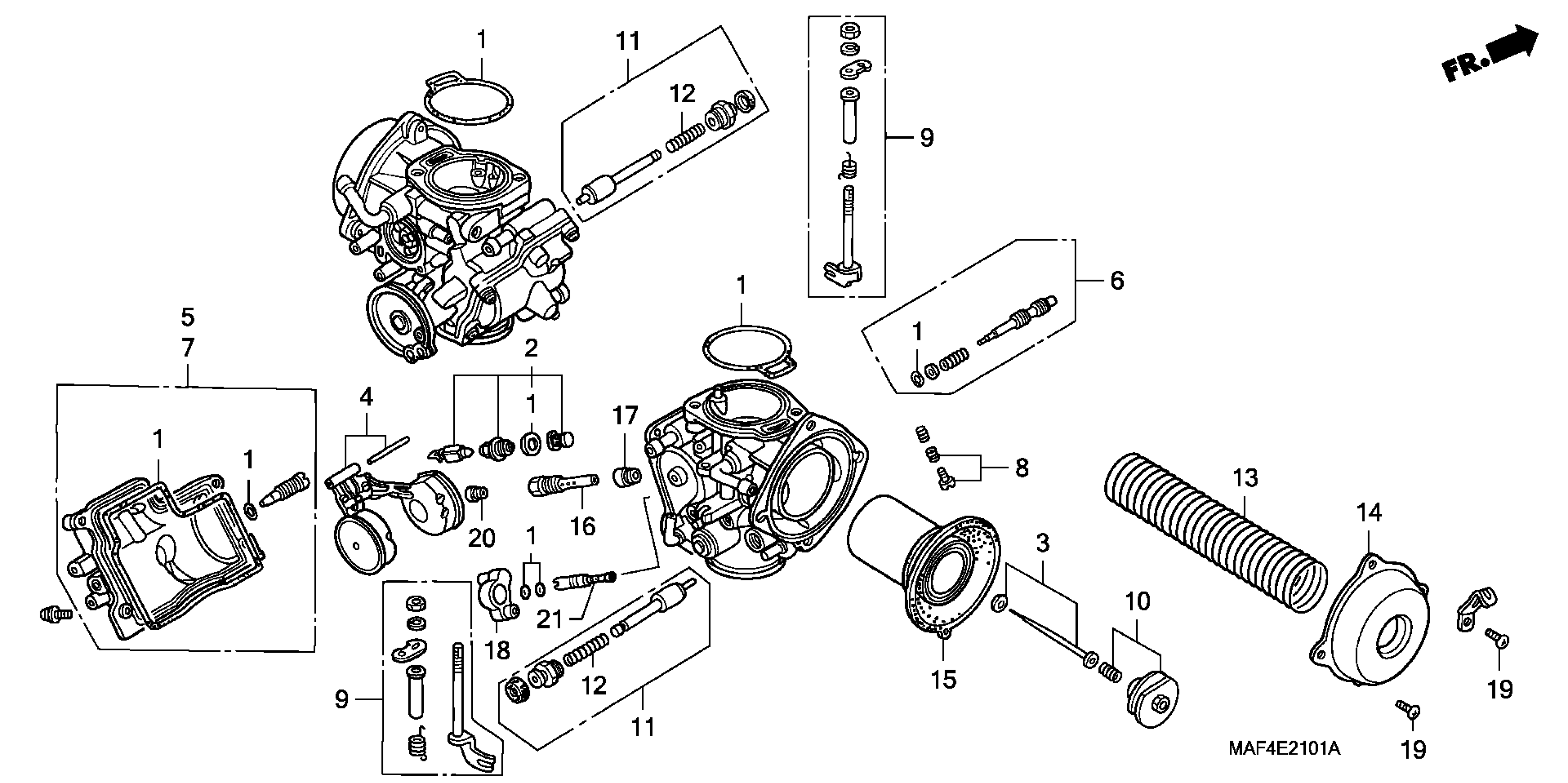

Honda GL1500AA (95) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-SA700001 CARBURETOR COMPONENTS Diagram

GASKET SET This part replaces 16010-MAM-000.

16010-MAM-A60

$29.96

VALVE SET, FLOAT

16011-MAM-000

$68.69

NEEDLE SET, JET

16012-MY4-601

Unavailable

FLOAT SET

16013-MAM-000

$48.52

CHAMBER SET, FLOAT This part replaces 16015-MAM-000.

16015-MAM-A60

Unavailable

SCREW SET This part replaces 16016-MAM-000.

16016-MZ8-A70

$23.28

CHAMBER SET, FLOAT This part replaces 16023-MAM-000.

16023-MAM-A60

Unavailable

SCREW SET C

16029-MB0-671

Unavailable

LEVER SET, STARTER

16031-MN5-014

Unavailable

PLATE SET

16037-MN5-004

Unavailable

VALVE SET, STARTER

16046-MAM-000

$75.20

SPRING, COMPRESSION COIL

16050-MT2-004

Unavailable

SPRING, COMPRESSION COIL

16051-MT8-000

Unavailable

TOP

16107-MM8-004

Unavailable

PISTON, VACUUM

16111-MY4-000

$166.59

HOLDER, NEEDLE JET

16165-MY4-000

Unavailable

HOLDER, JET

16168-MT8-000

$9.20

HOLDER, JET

16168-MY4-000

Unavailable

SCREW, PAN (4X10)

93500-04010-0A

$1.49

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

JET, MAIN (#148) This part replaces 99101-GHB-1480.

99102-MCG-1480

Unavailable

JET, MAIN (#148) This part replaces 99101-393-1480.

99102-MCG-1480

Unavailable

JET, SLOW (#65)

99103-MT8-0650

$22.29
