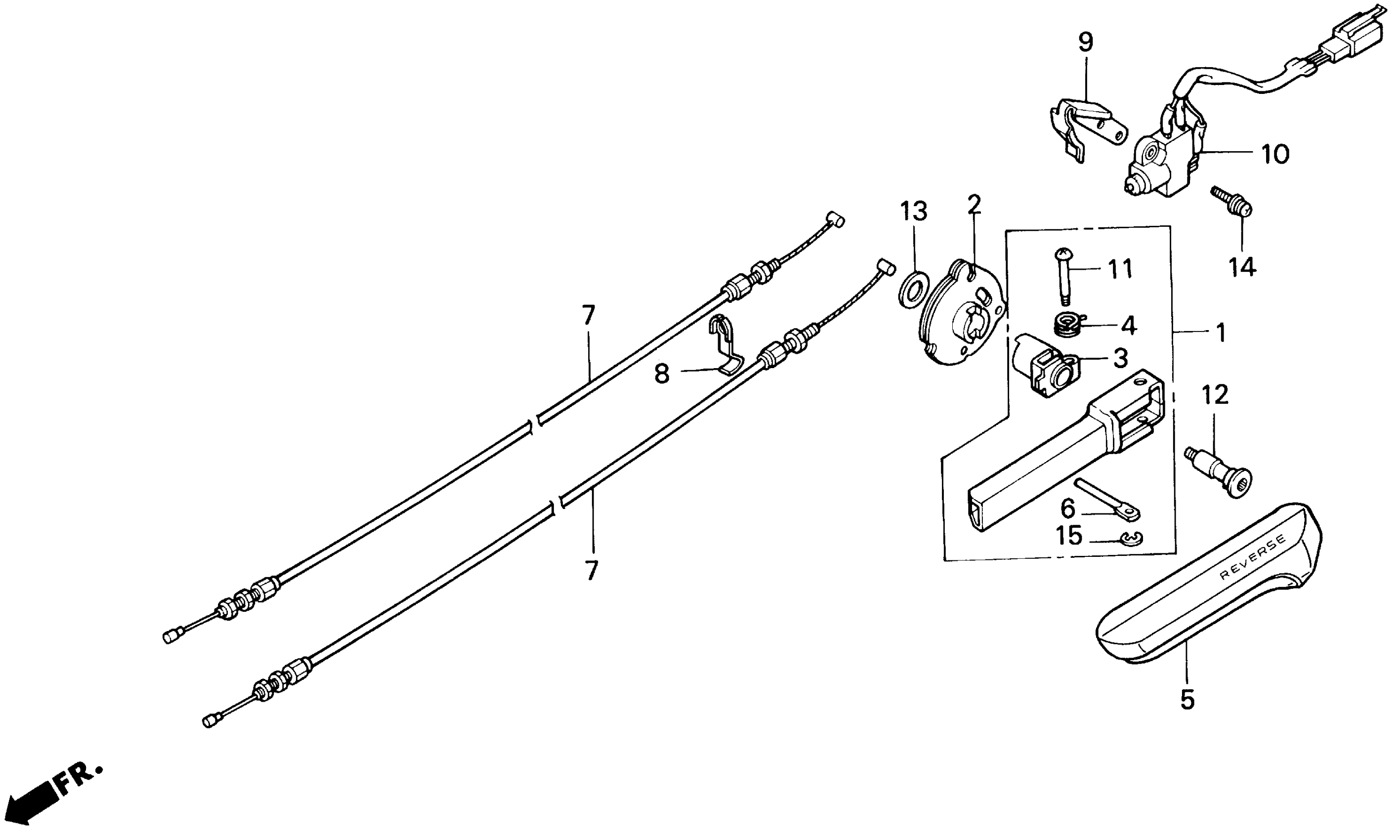

Honda GL1500AA (95) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-SA700001 A/SE REVERSE BAR Diagram

#

Description
Price

1

BAR ASSY., REVERSE This part replaces 24800-MT8-000.

24800-MAM-L40

Unavailable

2

DRUM, REVERSE

24802-MN5-000

Unavailable

3

JOINT, REVERSE

24804-MN5-000

Unavailable

4

SPRING, REVERSE ARM SETTING

24806-MN5-000

Unavailable

5

GRIP, REVERSE

24807-MT8-000

$16.69

6

PIN, REVERSE BAR This part replaces 24808-MN5-000.

24808-MAM-L40

Unavailable

7

CABLE, REVERSE (A)

24810-MT2-000

$23.29

8

SPRING, REVERSE DRUM

24813-MN5-000

Unavailable

9

SPRING, REVERSE SWITCH

24814-MN5-000

Unavailable

10

SWITCH ASSY., REVERSE & NEUTRAL

35370-MN5-003

$24.34

11

SCREW, REVERSE PIVOT

90116-MN5-000

Unavailable

12

BOLT, REVERSE JOINT

90118-MN5-000

Unavailable

13

WASHER, THRUST (14MM)

90453-444-000

Unavailable

14

SCREW-WASHER (4X12)

93893-04012-08

$1.49

15

E-RING (3MM)

94540-03018

$1.49
