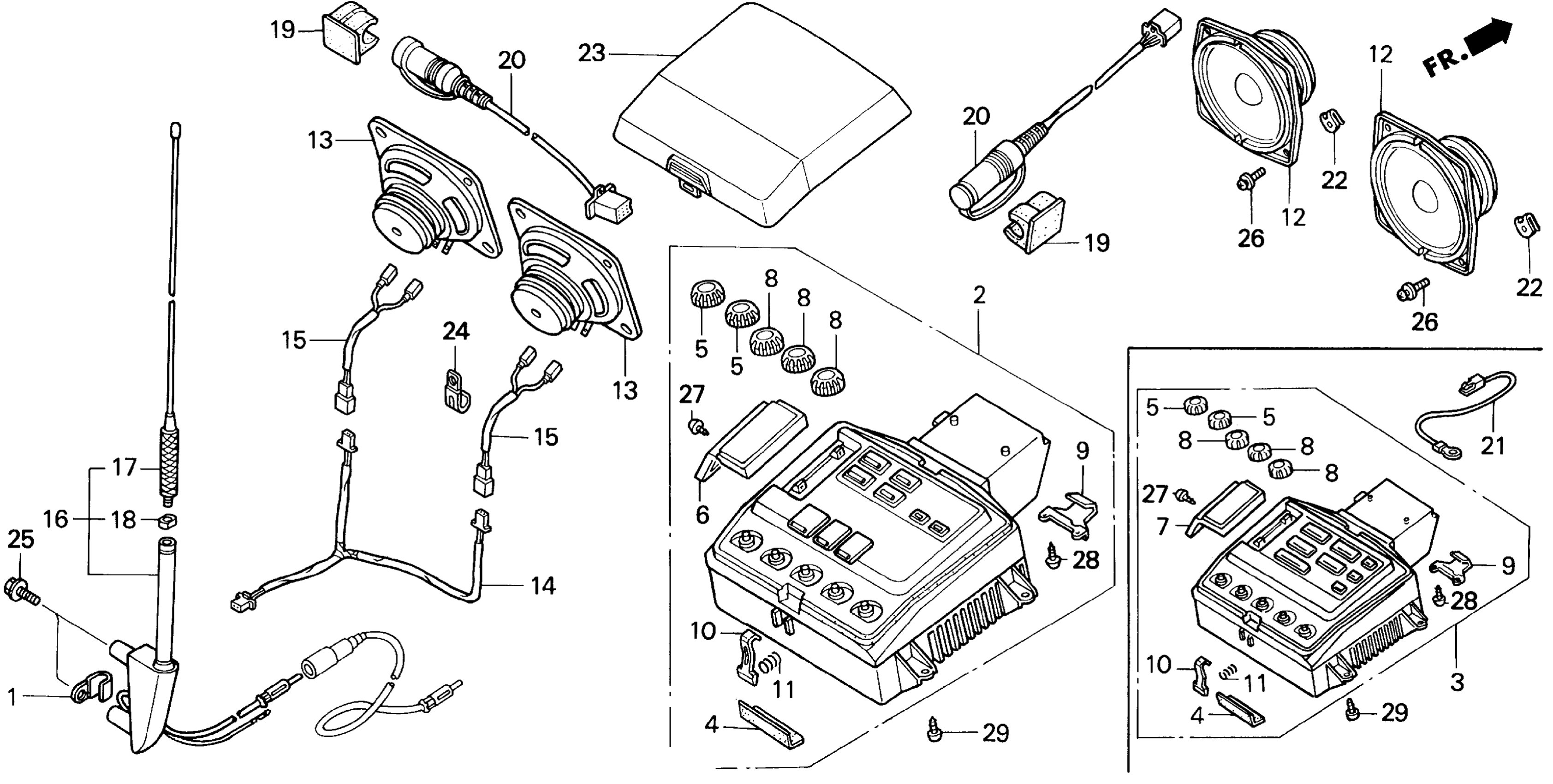

Honda GL1500AA (95) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-SA700001 A/SE RADIO CASSETTE Diagram

#

Description
Price

1

CLAMP, CABLE

32111-426-000

Unavailable

1

CLAMP, WIRE This part replaces 32111-460-780.

32111-426-000

Unavailable

2

CASSETTE, RADIO

39100-MN5-020

Unavailable

4

RUBBER, RADIO CASSETTE

39109-MN5-000

Unavailable

5

KNOB, RADIO (A)

39111-MN5-003

$11.87

6

LID, CASSETTE

39112-MN5-003

Unavailable

8

KNOB, RADIO (B)

39116-MN5-003

$11.54

9

PLATE, COVER STOPPER

39117-MN5-000

Unavailable

10

LEVER, COVER LOCK

39118-MN5-023

Unavailable

11

SPRING, LEVER

39119-MN5-003

Unavailable

12

SPEAKER UNIT, FR. This part replaces 39130-MT2-003.

39130-MCA-A61

$42.58

16

ANTENNA ASSY., RADIO

39150-MAM-003

Unavailable

17

ELEMENT, ANTENNA

39151-MAF-000

Unavailable

18

NUT, ANTENNA

39153-MN5-003

$4.12

19

HOLDER ASSY., CONNECTOR

39242-MN5-000

Unavailable

20

LEAD, HEADSET JUNCTION

39245-MT2-010

Unavailable

22

NUT, CLIP (4MM)

64521-MN5-000

$2.92

23

COVER, RADIO CASSETTE *NH159L* (TYPE1) (COSMOPOLITAN GRAY)

83170-MN5-000ZA

$92.66

23

COVER, RADIO CASSETTE *R200* (TYPE7) (TUSCANY RED)

83170-MN5-000ZH

Unavailable

25

BOLT-WASHER (6X16) This part replaces 93411-06016-08.

93401-06016-08

$1.49

26

SCREW-WASHER (4X12)

93891-04012-08

$1.49

27

SCREW, TAPPING (3X10)

93901-22220

$1.49

28

SCREW, TAPPING (3X12)

93901-22320

$1.49

29

SCREW, TAPPING (5X12)

93903-25220

$1.49
