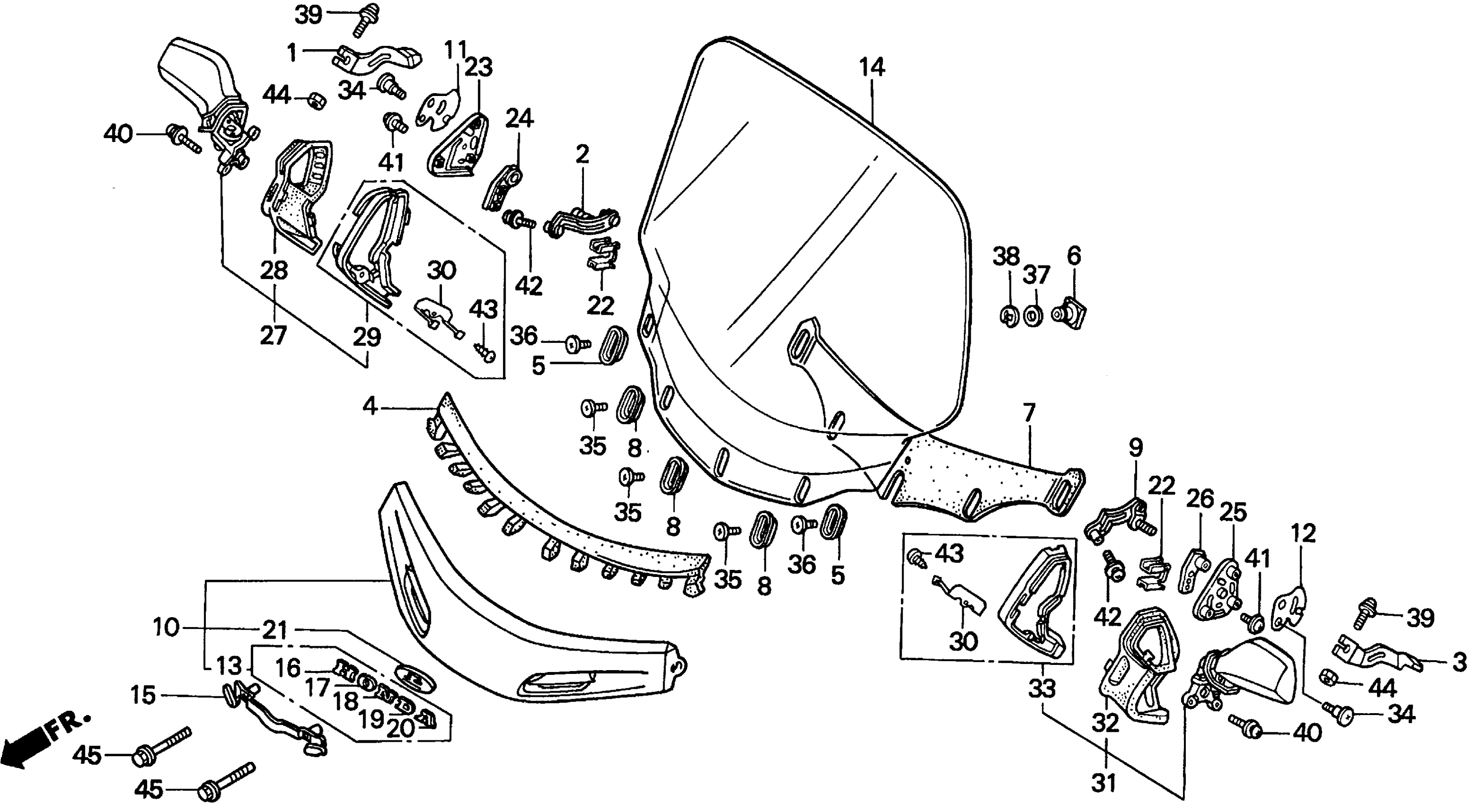

Honda GL1500AA (95) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-SA700001 A/I WINDSCREEN 95 Diagram

#

Description
Price

1

LEVER, R.

64107-MT8-000

Unavailable

2

PLATE, R. TENSION

64108-MAM-000

Unavailable

3

LEVER, L.

64109-MT8-000

$62.95

4

SEAL, WINDSCREEN

64111-MAM-000

Unavailable

5

PLATE B, WINDSCREEN SETTING

64113-MN5-000

Unavailable

6

NUT, WINDSCREEN SETTING

64114-MG9-770

Unavailable

7

RUBBER, SCREEN

64115-MAM-000

$55.74

8

PLATE, WINDSCREEN SETTING

64116-MN5-000

$6.22

9

PLATE, L. TENSION

64118-MAM-000

Unavailable

10

GARNISH SET, SCREEN (WL)

64120-MAM-000

Unavailable

11

PLATE, R. LEVER SIDE

64123-MT8-000

Unavailable

12

PLATE, L. LEVER SIDE

64124-MT8-000

Unavailable

13

EMBLEM, FR. This part replaces 64125-MAM-000.

64125-MAM-010

Unavailable

14

WINDSCREEN

64130-MAM-000

Unavailable

15

STAY, GARNISH SETTING

64135-MAM-000

$67.25

16

EMBLEM, FR. (H)

64142-MAM-000

Unavailable

17

EMBLEM, FR. (O)

64143-MT8-770

Unavailable

18

EMBLEM, FR. (N)

64144-MT8-770

Unavailable

19

EMBLEM, FR. (D)

64145-MT8-770

Unavailable

20

EMBLEM, FR. (A)

64146-MAM-000

Unavailable

21

EMBLEM, FR. GARNISH

64160-MAM-000

Unavailable

22

CLIP, SCREEN GUIDE

64219-MN5-000

$3.37

23

BASE, R. MIRROR

64531-MN5-000

Unavailable

24

PLATE, R. PIVOT

64532-MT8-000

Unavailable

25

BASE, L. MIRROR

64631-MN5-000

$17.46

26

PLATE, L. PIVOT

64632-MT8-000

Unavailable

27

MIRROR ASSY., R. BACK *R176C* (CANDY SPECTRA RED)

88110-MT8-000ZJ

Unavailable

27

MIRROR ASSY., R. BACK *G156P* (PEARL SIERRA GREEN)

88110-MT8-000ZT

$409.64

27

MIRROR ASSY., R. BACK *RP151P* (PEARL ROYAL MAGENTA)

88110-MT8-000ZU

Unavailable

28

BOOT, R.

88113-MN5-003

$33.41

29

BASE ASSY., R. BACK MIRROR *G156P* (PEARL SIERRA GREEN)

88114-MN5-003YA

Unavailable

29

BASE ASSY., R. BACK MIRROR *RP151P* (PEARL ROYAL MAGENTA)

88114-MN5-003YB

Unavailable

29

BASE ASSY., R. MIRROR *R176C* (CANDY SPECTRA RED)

88114-MN5-003ZP

$123.77

30

PLATE, SET

88119-MN5-000

$5.54

31

MIRROR ASSY., L. *R176C* (CANDY SPECTRA RED)

88120-MT8-000ZJ

Unavailable

31

MIRROR ASSY., L. *G156P* (PEARL SIERRA GREEN)

88120-MT8-000ZR

Unavailable

31

MIRROR ASSY., L. *RP151P* (PEARL ROYAL MAGENTA)

88120-MT8-000ZS

$415.93

32

BOOT, L.

88123-MN5-003

Unavailable

33

BASE ASSY., L. MIRROR *R176C* (CANDY SPECTRA RED)

88124-MN5-003ZP

$121.64

33

BASE ASSY., L. MIRROR *G156P* (PEARL SIERRA GREEN)

88124-MN5-003ZX

Unavailable

33

BASE ASSY., L. MIRROR *RP151P* (PEARL ROYAL MAGENTA)

88124-MN5-003ZY

Unavailable

34

SCREW, SPECIAL (6X8) This part replaces 90104-KT8-710.

90104-MJ0-660

$4.15

35

SCREW, SCREEN SETTING

90107-MN5-000

$3.12

36

SCREW, SCREEN SETTING (6X12)

90107-MT2-000

$3.24

37

WASHER

90501-MT2-000

$1.86

38

E-RING (8MM)

90601-473-003

$2.25

39

SCREW-WASHER (5X22)

93891-05022-07

Unavailable

40

SCREW-WASHER (5X28)

93891-05028-08

$1.49

41

SCREW-WASHER (5X12)

93893-05012-08

$1.49

41

SCREW-WASHER (5X12) This part replaces 93893-05012-18.

93893-05012-08

$1.49

42

SCREW-WASHER (5X12)

93894-05012-08

$1.49

42

SCREW-WASHER (5X12) This part replaces 93894-05012-18.

93894-05012-08

$1.49

43

SCREW, TAPPING (4X10)

93901-24280

$1.49

44

NUT, HEX. (5MM)

94001-050800S

$1.49

45

BOLT, FLANGE (6X55)

95801-06055-08

$1.72
