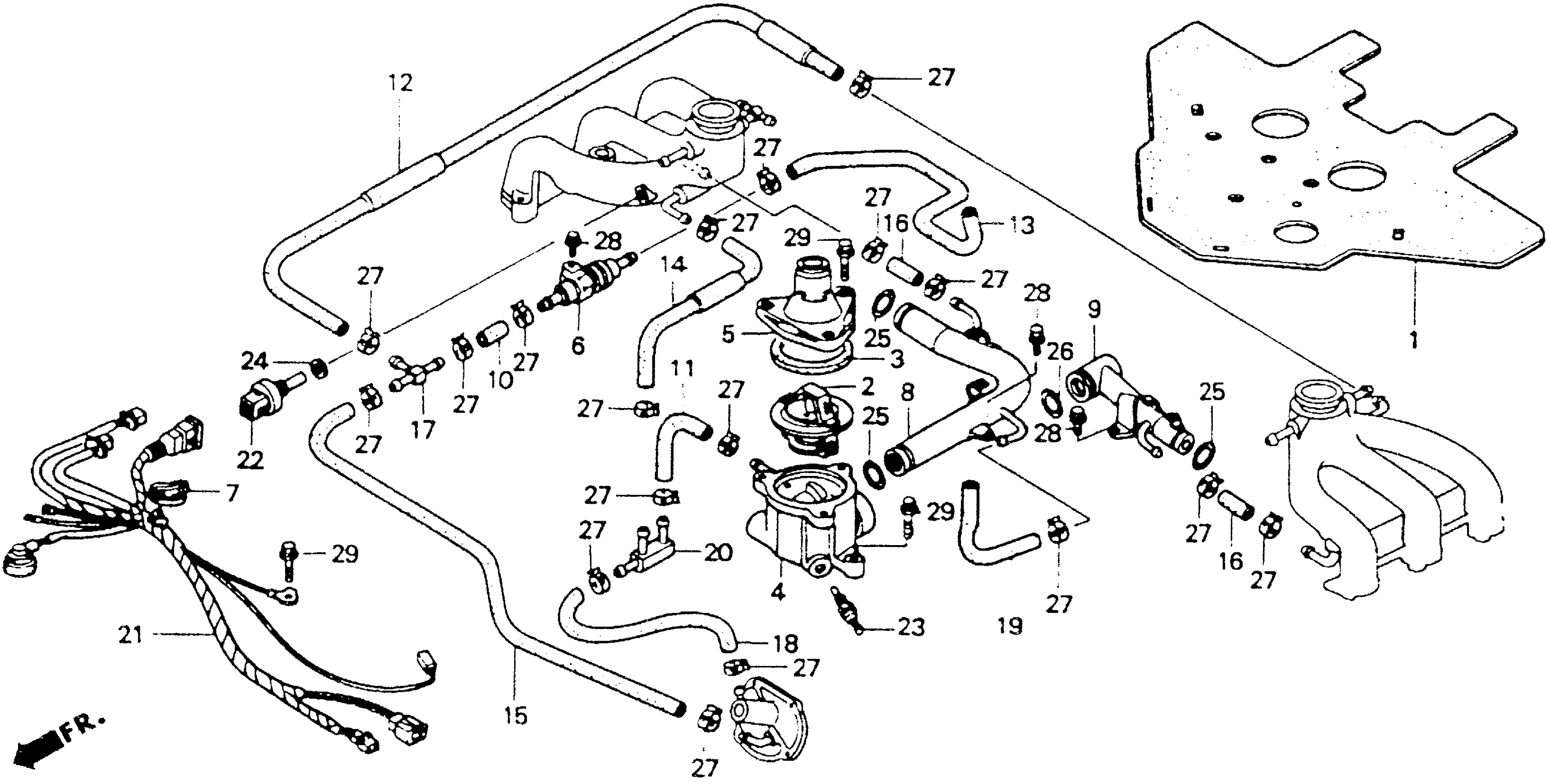

Honda GL1500AA (93) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-PA500001 WATER PIPE Diagram

#

Description
Price

1

RUBBER, ENGINE HEAT GUARD

19050-MT2-010

$112.49

2

THERMOSTAT UNIT

19300-611-005

$45.22

3

RUBBER, THERMOSTAT

19305-MCA-A00

$8.78

3

RUBBER, THERMOSTAT This part replaces 19305-MN5-000.

19305-MCA-A00

$8.78

4

CASE, THERMOSTAT This part replaces 19310-MT8-000.

19310-MT8-010

Unavailable

4

CASE, THERMOSTAT

19310-MT8-010

Unavailable

5

COVER, THERMOSTAT

19320-MN5-000

$46.39

6

VALVE, THERMO

19330-MY4-004

Unavailable

7

STAY, WIRE HARNESS

19333-MN5-000

Unavailable

8

PIPE, R. WATER OUTLET

19422-MY4-000

Unavailable

9

PIPE, L. WATER OUTLET (NOT AVAILABLE)

19423-MW5-000

Unavailable

10

TUBE, WATER (A)

19511-MY4-000

Unavailable

11

TUBE, WATER (B)

19512-MT8-000

Unavailable

12

TUBE, WATER (C)

19513-MY4-000

Unavailable

13

TUBE D, WATER

19514-MN5-000

Unavailable

14

TUBE, WATER (E)

19515-MY4-000

Unavailable

15

TUBE, WATER (F)

19516-MY4-000

Unavailable

16

TUBE H, WATER

19517-MT8-000

$5.72

17

JOINT, THREE WAY

19518-MN5-010

$9.48

18

HOSE, WATER (G)

19521-MY4-000

Unavailable

19

TUBE, WATER (J)

19522-MY4-000

$13.41

20

JOINT, THREE WAY (D)

19525-MT8-000

$10.20

21

SUB-HARNESS, ENGINE

32104-MT8-000

Unavailable

22

ENGINE COOLANT TEMPERATURE SENSOR

36151-MT8-003

Unavailable

23

THERMO UNIT (DENSO)

37750-PC1-004

$81.34

24

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.61

25

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.20

26

O-RING (21.8X2.4)

91351-KE1-000

$2.18

27

CLAMP, TUBE (D12)

91405-PD1-004

$9.24

28

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

29

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
