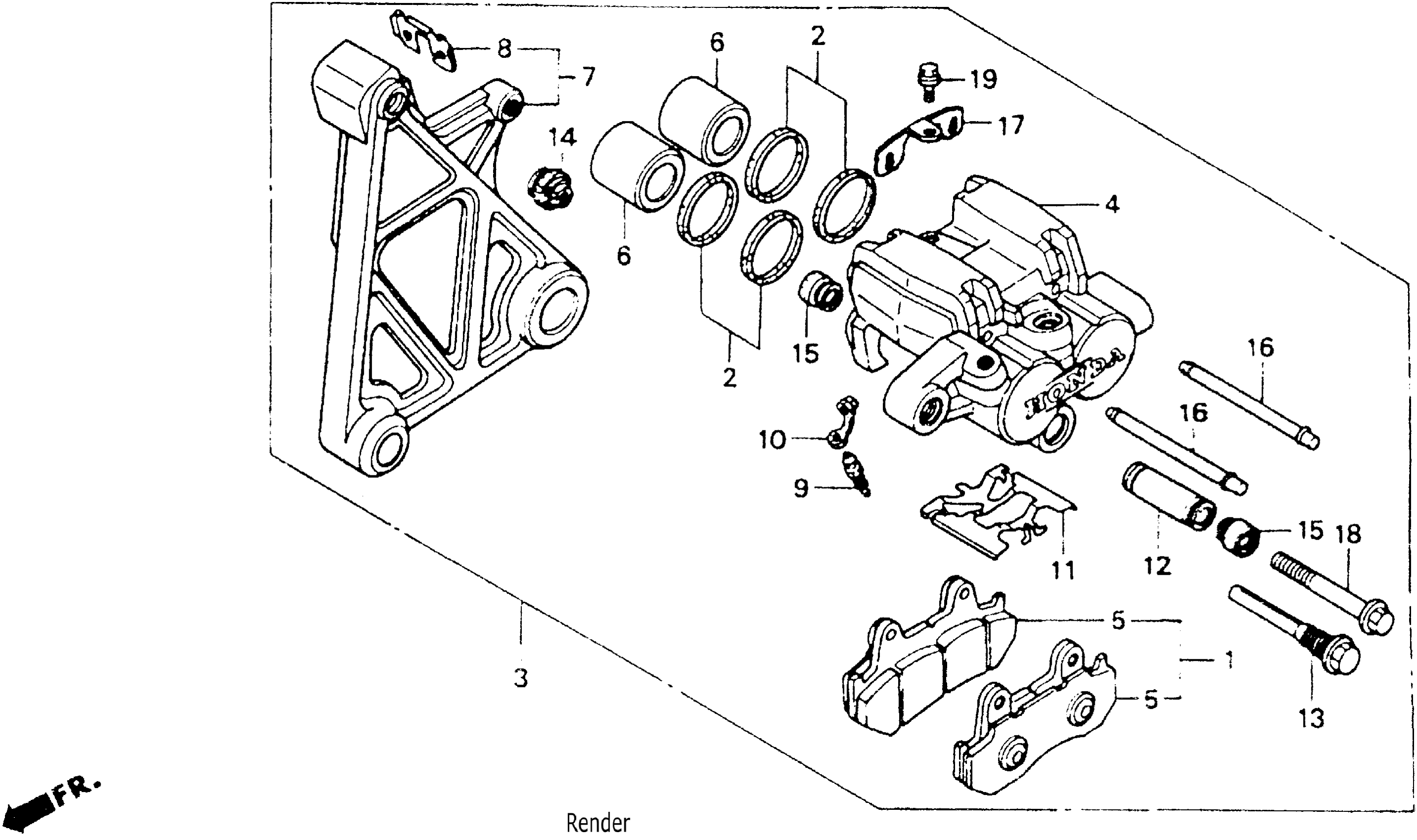

Honda GL1500AA (93) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-PA500001 REAR BRAKE CALIPER Diagram

PAD SET, RR.

06435-MT8-405

$52.90

PAD SET, RR. This part replaces 431A0-MT8-670.

06435-MT8-405

$52.90

PAD SET, RR.

06435-MT8-405

$52.90

SEAL SET, PISTON

06451-MA7-405

$9.77

CALIPER ASSY., RR. BRAKE (NISSIN)

43100-MT8-008

Unavailable

CALIPER, RR. (NOT AVAILABLE)

43101-MT8-006

Unavailable

PISTON

43107-MA7-006

$41.82

BRACKET, RR.

43110-MT8-006

Unavailable

RETAINER, RR. BRACKET

43112-445-631

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

$9.83

CAP, BLEEDER

43353-461-771

$4.83

SPRING, PAD

45108-MA2-006

Unavailable

SLEEVE

45111-MA3-006

$12.28

BOLT, PIN

45131-MA3-006

$16.14

BOOT B

45133-MA3-006

$5.21

BOOT, PIN

45133-166-016

$3.43

PIN, HANGER

45215-MA2-006

Unavailable

PLATE

45217-MA3-006

$4.24

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$5.80

BOLT, FLANGE (8X49)

90180-MN8-006

$5.80

BOLT, FLANGE (6X10)

96001-06010-07

$1.50
