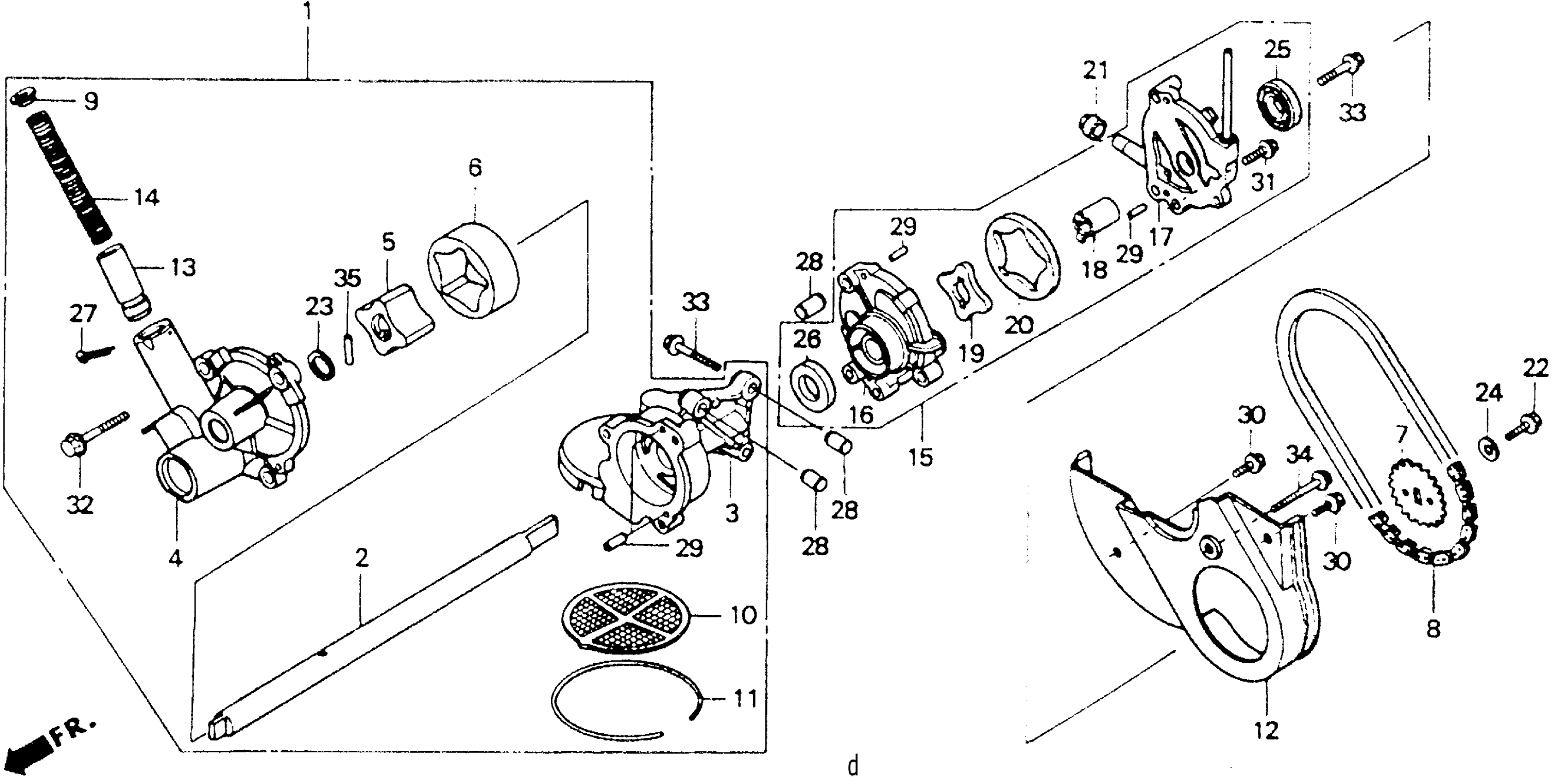

Honda GL1500AA (93) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-PA500001 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15110-MN5-030

Unavailable

2

SHAFT, OIL PUMP

15111-MN5-020

Unavailable

3

BODY, OIL PUMP

15112-MN5-000

Unavailable

4

COVER, OIL PUMP

15113-MN5-000

Unavailable

5

ROTOR (INNER)

15124-MJ0-000

Unavailable

6

ROTOR (OUTER)

15125-MJ0-000

$23.66

7

SPROCKET, OIL PUMP DRIVEN (24T)

15134-MN5-000

Unavailable

8

CHAIN, OIL PUMP DRIVE (SC-0412HX54L) (DAIDO)

15135-MN5-003

Unavailable

9

SEAT, RELIEF VALVE

15142-371-000

Unavailable

10

SCREEN, OIL PUMP

15150-MG7-000

Unavailable

11

RING, SNAP (92MM)

15160-PA5-003

Unavailable

12

GUIDE, OIL PUMP CHAIN

15171-MN5-000

Unavailable

13

VALVE, RELIEF

15231-MN5-010

Unavailable

14

SPRING, RELIEF VALVE

15232-MN5-000

Unavailable

15

PUMP ASSY., SCAVENGE OIL (NOT AVAILABLE)

15240-MN5-010

Unavailable

16

BODY, SCAVENGE OIL PUMP

15241-MN5-010

Unavailable

17

COVER, SCAVENGE OIL PUMP

15242-MN5-010

Unavailable

18

COLLAR, OIL PUMP

15243-MN5-010

Unavailable

19

ROTOR (INNER)

15244-MN5-000

Unavailable

20

ROTOR (OUTER)

15245-MN5-000

Unavailable

21

GROMMET, SCAVENGE OIL PUMP

15247-MN5-000

Unavailable

22

BOLT, HEX. (6X16)

90021-KE8-010

$2.28

23

WASHER, THRUST (13MM)

90456-MC7-000

$2.72

24

WASHER (6X2.3)

90488-MB0-000

$4.37

25

OIL SEAL (16X24X4)

91211-MN5-003

Unavailable

26

OIL SEAL (13X21X4)

91212-MN5-003

$8.02

27

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

27

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

27

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

27

PIN, SPLIT (3.0X45)

94201-30450

$1.49

28

PIN, DOWEL (8X14)

94301-08140

$2.25

29

PIN, DOWEL (5X8)

94303-05080

$2.14

30

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

31

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

32

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

33

BOLT, FLANGE (6X32)

95701-06032-08

$1.89

34

BOLT, FLANGE (6X45)

95701-06045-08

$2.06

35

ROLLER (5X17.8)

96220-50178

$1.49
