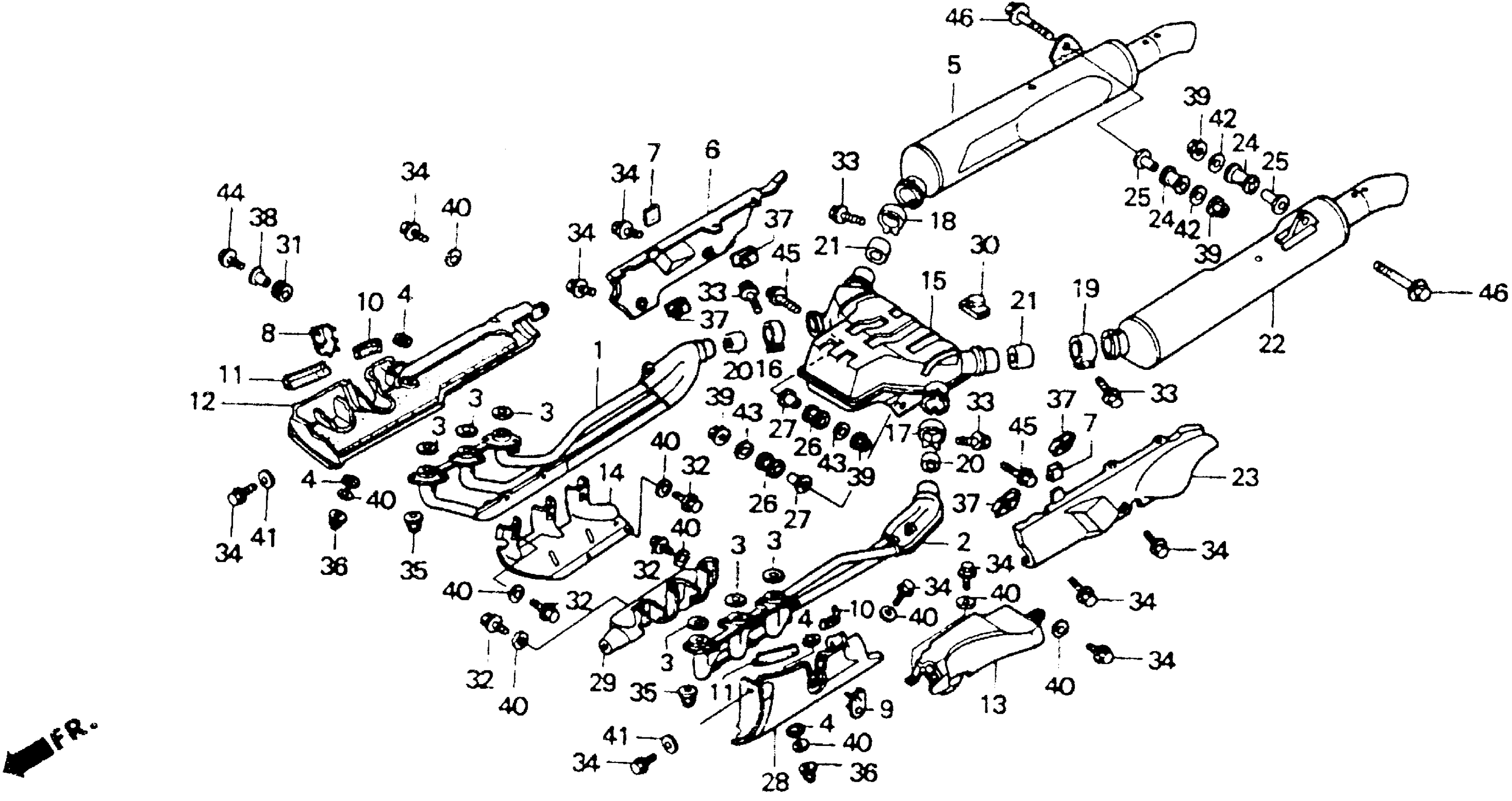

Honda GL1500AA (93) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-PA500001 EXHAUST MUFFLER (A/I) Diagram

#

Description
Price

1

PIPE, R. EX. This part replaces 18150-MAM-003.

18150-MAM-A80

Unavailable

1

PIPE, R. EX. This part replaces 18150-MT8-000.

18150-MAM-A80

Unavailable

2

PIPE, L. EX.

18250-MAM-A80

Unavailable

2

PIPE, L. EX. This part replaces 18250-MAM-003.

18250-MAM-A80

Unavailable

2

PIPE, L. EX. This part replaces 18250-MT8-000.

18250-MAM-A80

Unavailable

3

GASKET, EX. PIPE

18291-MN5-650

$3.77

4

GASKET, PROTECTOR

18293-MCA-780

$4.85

4

GASKET, PROTECTOR This part replaces 18293-MN5-650.

18293-MCA-780

$4.85

5

MUFFLER, R.

18310-MW5-000

Unavailable

6

PROTECTOR, R. CHAMBER (TYPE12)

18315-MW5-870ZC

Unavailable

7

GROMMET

18316-MN5-000

Unavailable

8

RUBBER, R. HEAT PROTECTOR

18321-MN5-000

$37.89

9

RUBBER, L. HEAT PROTECTOR

18322-MN5-000

$37.67

10

RUBBER A, SEAL

18323-MN5-000

Unavailable

11

RUBBER B, SEAL

18324-MN5-000

Unavailable

12

PROTECTOR, R. EX. PIPE (TYPE12)

18325-MW5-000ZD

Unavailable

13

PROTECTOR, L. RR. EX. PIPE (TYPE12)

18326-MN5-000ZL

Unavailable

14

CHAMBER, R. HOT AIR

18327-MT8-000

Unavailable

15

CHAMBER, EX.

18340-MN5-003

$1,521.15

16

BAND, R. EX. PIPE

18373-MB6-003

Unavailable

17

BAND, L. EX. PIPE

18374-MB6-003

$31.58

18

BAND, R. MUFFLER

18376-MB4-003

$41.21

19

BAND, L. MUFFLER

18377-MB4-003

$41.16

20

GASKET A, MUFFLER

18391-MAM-000

$10.45

20

GASKET A, MUFFLER This part replaces 18391-MY4-003.

18391-MAM-000

$10.45

21

GASKET B, MUFFLER

18392-MAM-000

$18.05

21

GASKET B, MUFFLER This part replaces 18392-MY4-003.

18392-MAM-000

$18.05

22

MUFFLER, L.

18410-MW5-000

Unavailable

23

PROTECTOR, L. CHAMBER (TYPE12)

18415-MW5-870ZC

Unavailable

24

RUBBER, MUFFLER MOUNTING

18421-MN5-000

$5.12

25

COLLAR, MUFFLER MOUNTING

18422-MN5-000

$9.05

26

RUBBER, CHAMBER MOUNTING

18423-MN5-000

Unavailable

27

COLLAR, CHAMBER MOUNTING

18424-MN5-000

$8.53

28

PROTECTOR, L. EX. PIPE (TYPE12)

18425-MW5-000ZD

Unavailable

29

CHAMBER, L. HOT AIR

18427-MT8-000

Unavailable

30

RUBBER, STAND STOPPER

50524-MG9-000

$6.73

31

RUBBER, OIL COOLER MOUNTING

61329-MJ6-000

Unavailable

32

BOLT, FLANGE (6X8)

90126-MN5-000

$2.56

33

BOLT, FLANGE (8X37) This part replaces 90129-MN5-000.

95801-08038-00

$2.20

34

BOLT, FLANGE (6X10) This part replaces 90130-MN5-000.

96001-06010-07

$1.62

34

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

35

NUT, SPECIAL (6MM)

90304-HB3-771

$6.07

36

NUT, CAP (6MM)

90308-MT8-000

$2.70

37

NUT, CLIP (6MM)

90344-692-003

$5.55

38

COLLAR, HEADLIGHT BRACKET

90501-MJ6-000

$4.48

39

NUT, FLANGE (8MM)

94050-08080

$1.49

40

WASHER, PLAIN (6MM)

94101-06400

$1.49

41

WASHER, PLAIN (6MM)

94103-06400

$1.49

42

WASHER, PLAIN (8MM)

94103-08200

$1.49

43

WASHER, PLAIN (8MM)

94103-08800

$1.49

44

BOLT, FLANGE (6X18)

95701-06018-08

$1.62

45

BOLT, FLANGE (8X45)

95701-08045-08

$2.28

46

BOLT, FLANGE (8X55)

95701-08055-02

$2.39
