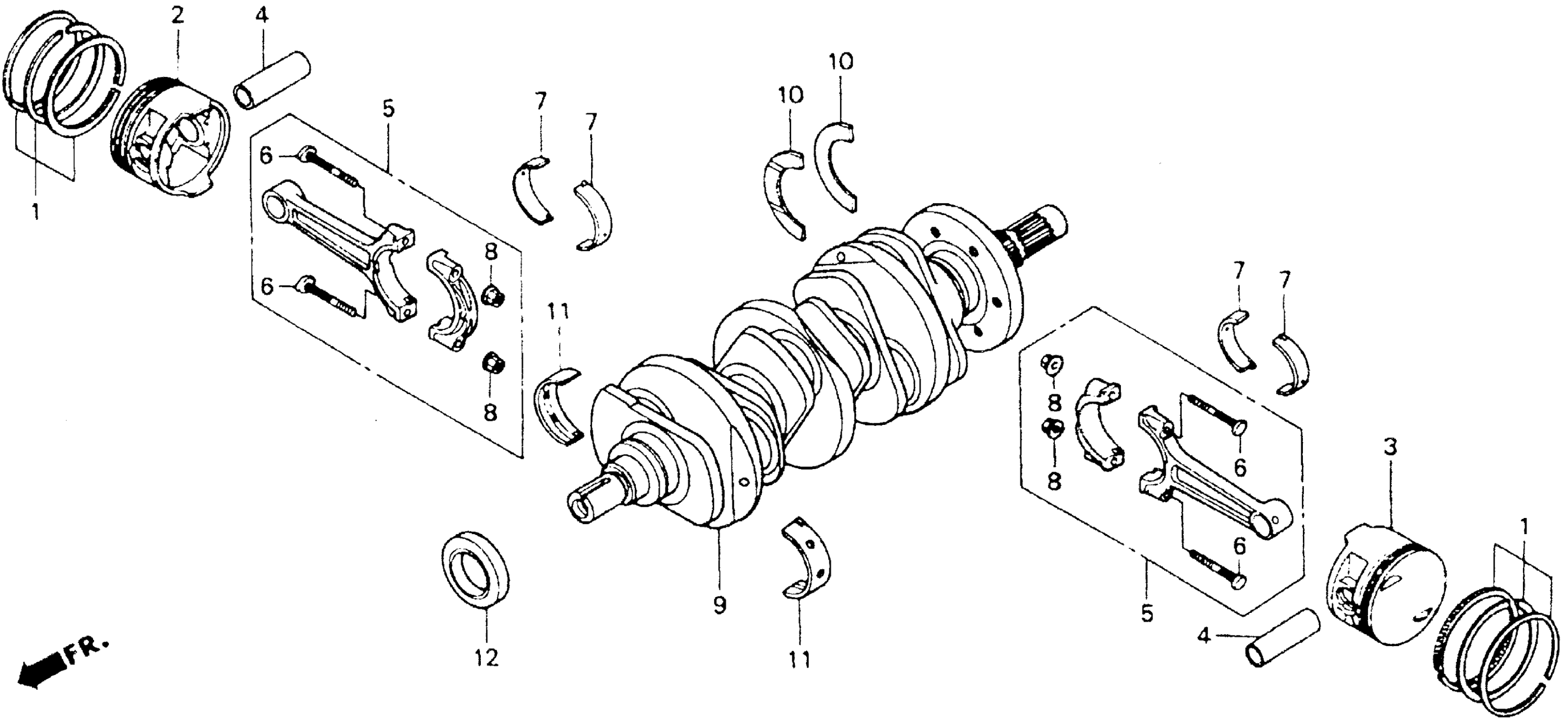

Honda GL1500AA (93) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-PA500001 CRANKSHAFT Diagram

#

Description
Price

1

RING SET, PISTON (STD) (TEIKOKU)

13011-MN5-305

$77.02

1

RING SET, PISTON (STD) (TEIKOKU) This part replaces 13011-MN5-306.

13011-MN5-305

$77.02

1

RING SET, PISTON (OVER SIZE) (0.25) (TEIKOKU) | (Optional).

13021-MN5-305

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.25) (TEIKOKU) | (Optional). This part replaces 13021-MN5-306.

13021-MN5-305

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.50) (TEIKOKU) | (Optional).

13031-MN5-305

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.50) (TEIKOKU) | (Optional). This part replaces 13031-MN5-306.

13031-MN5-305

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.75) (TEIKOKU) | (Optional).

13041-MN5-305

$59.39

1

RING SET, PISTON (OVER SIZE) (0.75) (TEIKOKU) | (Optional). This part replaces 13041-MN5-306.

13041-MN5-305

$59.39

1

RING SET, PISTON (1.00) (TEIKOKU) | (Optional).

13051-MN5-305

$59.39

1

RING SET, PISTON (1.00) (TEIKOKU) | (Optional). This part replaces 13051-MN5-306.

13051-MN5-305

$59.39

2

PISTON SET, R. (STD)

13061-MAM-305

Unavailable

2

PISTON SET, R. (OVER SIZE) (0.25) | (Optional).

13062-MAM-305

Unavailable

2

PISTON SET, R. (STD) This part replaces 13101-MT2-000.

13061-MAM-305

Unavailable

2

PISTON SET, R. (OVER SIZE) (0.25) | (Optional). This part replaces 13103-MT2-305.

13062-MAM-305

Unavailable

2

PISTON, R. (OVER SIZE) (0.50) | (Optional).

13104-MT2-305

Unavailable

2

PSTN SET (OS) (0.75) | (Optional). This part replaces 13105-MT2-305.

13064-MAM-305

Unavailable

2

PISTON, R. (1.00) | (Optional).

13106-MT2-305

Unavailable

3

PISTON SET, L. (STD)

13071-MAM-305

Unavailable

3

PISTON SET, L. (OVER SIZE) (0.25) | (Optional).

13072-MAM-305

Unavailable

3

PISTON SET, L. (STD) This part replaces 13102-MT2-000.

13071-MAM-305

Unavailable

3

PISTON SET, L. (OVER SIZE) (0.25) | (Optional). This part replaces 13107-MT2-305.

13072-MAM-305

Unavailable

3

PISTON, L. (OVER SIZE) (0.50) | (Optional).

13108-MT2-305

Unavailable

3

PSTN SET (OS) (0.75) | (Optional). This part replaces 13109-MT2-305.

13074-MAM-305

Unavailable

3

PISTON, L. (1.00) | (Optional).

13111-MT2-305

Unavailable

4

PIN, PISTON

13111-MT2-010

Unavailable

5

ROD ASSY. C, CONNECTING This part replaces 13201-MT2-000.

13203-MT2-000

Unavailable

5

ROD ASSY. C, CONNECTING This part replaces 13202-MT2-000.

13203-MT2-000

Unavailable

5

ROD ASSY. C, CONNECTING

13203-MT2-000

Unavailable

5

ROD ASSY. C, CONNECTING This part replaces 13204-MT2-000.

13203-MT2-000

Unavailable

5

ROD ASSY. C, CONNECTING This part replaces 13205-MT2-000.

13203-MT2-000

Unavailable

6

BOLT, CONNECTING ROD This part replaces 13213-MC7-004.

13213-MS2-610

$9.92

6

BOLT, CONNECTING ROD

13213-MS2-610

$9.92

7

BEARING A, CONNECTING ROD (BLUE) (DAIDO)

13214-MN5-003

$14.51

7

BEARING B, CONNECTING ROD (BLACK) (DAIDO)

13215-MN5-003

$14.70

7

BEARING C, CONNECTING ROD (BROWN) (DAIDO)

13216-MN5-003

$15.39

7

BEARING D, CONNECTING ROD (GREEN) (DAIDO)

13217-MN5-003

$15.39

7

BEARING E, CONNECTING ROD (YELLOW) (DAIDO)

13218-MN5-003

$14.70

8

NUT, CONNECTING ROD

13215-ML7-000

$3.89

9

CRANKSHAFT

13310-MN5-010

Unavailable

10

BEARING, THRUST

13312-MN5-003

$18.21

11

BEARING A, MAIN (BLUE) (DAIDO)

13314-MN5-003

Unavailable

11

BEARING B, MAIN (BLACK) (DAIDO)

13315-MN5-003

$13.47

11

BEARING C, MAIN (BROWN) This part replaces 13316-MN5-003.

13316-MZ0-003

Unavailable

11

BEARING C, MAIN (BROWN)

13316-MZ0-003

Unavailable

11

BEARING D, MAIN (GREEN) This part replaces 13317-MN5-003.

13317-MZ0-003

$18.89

11

BEARING E, MAIN (YELLOW) (DAIDO)

13318-MN5-003

Unavailable

12

OIL SEAL (35X59X8) (ARAI)

91201-MN5-003

$15.44
