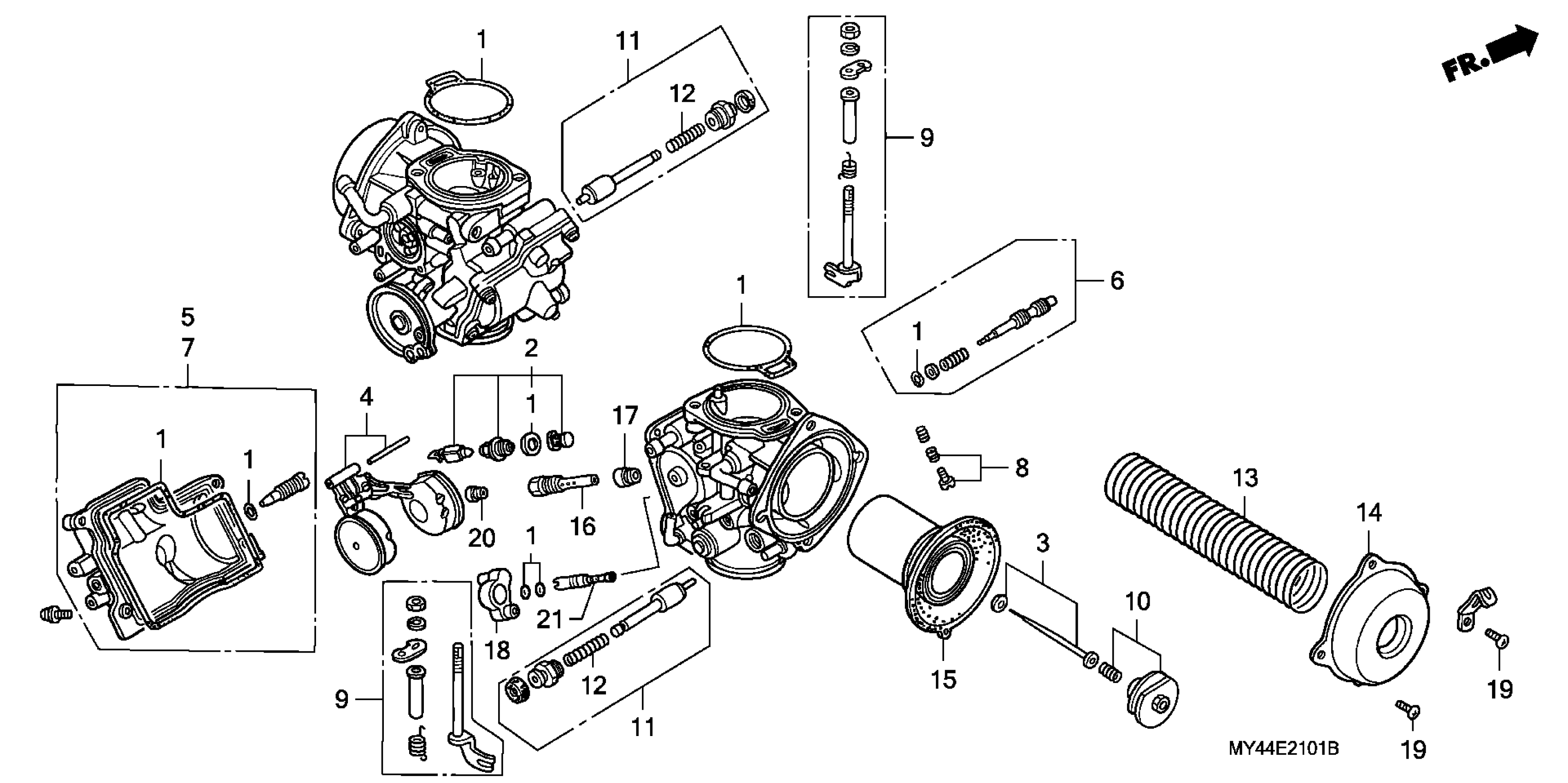

Honda GL1500AA (93) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-PA500001 CARBURETOR (COMPONENTS) Diagram

#

Description
Price

1

GASKET SET

16010-MAM-A60

$29.96

1

GASKET SET This part replaces 16010-MAM-000.

16010-MAM-A60

$29.96

1

GASKET SET This part replaces 16010-MY4-000.

16010-MAM-A60

$29.96

2

VALVE SET, FLOAT

16011-ML7-921

$64.28

2

VALVE SET, FLOAT This part replaces 16011-MN5-004.

16011-ML7-921

$64.28

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-MY4-601

Unavailable

4

FLOAT SET

16013-MAM-000

$48.52

4

FLOAT SET This part replaces 16013-MT2-004.

16013-MAM-000

$48.52

5

CHAMBER SET A, FLOAT

16015-MT8-010

Unavailable

6

SCREW SET This part replaces 16016-MS8-681.

16016-MZ8-A70

$23.28

6

SCREW SET

16016-MZ8-A70

$23.28

7

CHAMBER SET B, FLOAT

16023-MT8-010

Unavailable

8

SCREW SET C

16029-MB0-671

Unavailable

9

LEVER SET, STARTER

16031-MN5-014

Unavailable

10

PLATE SET

16037-MN5-004

Unavailable

11

VALVE SET, STARTER (NOT AVAILABLE)

16046-MT8-000

Unavailable

12

SPRING, COMPRESSION COIL

16050-MT2-004

Unavailable

13

SPRING, COMPRESSION COIL

16051-MT8-000

Unavailable

14

TOP

16107-MM8-004

Unavailable

15

PISTON, VACUUM

16111-MY4-000

$166.59

16

HOLDER, NEEDLE JET

16165-MY4-000

Unavailable

17

HOLDER, JET

16168-MT8-000

$9.20

18

HOLDER, JET

16168-MY4-000

Unavailable

19

SCREW, PAN (4X10)

93500-04010-0A

$1.49

19

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

20

JET, MAIN (#148) This part replaces 99101-GHB-1480.

99102-MCG-1480

Unavailable

20

JET, MAIN (#148) This part replaces 99101-393-1480.

99102-MCG-1480

Unavailable

21

JET, SLOW (#65)

99103-MT8-0650

$22.29
