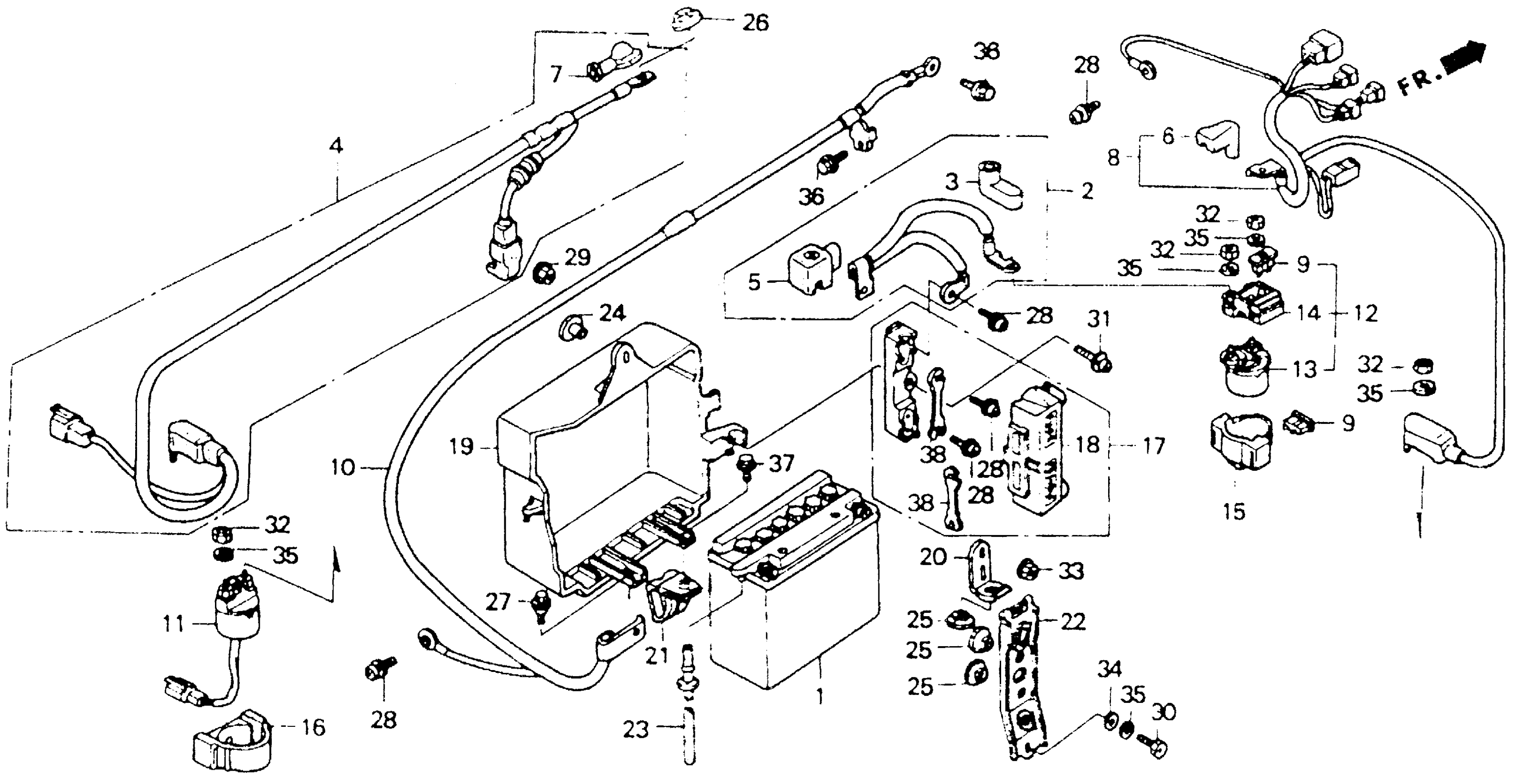

Honda GL1500AA (93) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-PA500001 BATTERY (A/SE) Diagram

#

Description
Price

1

BATTERY (Y50-N18L-A3) (YUASA) This part replaces 31500-MN5-010.

31500-MN5-020AH

Unavailable

1

BATTERY (Y50-N18L-A3) (YUASA) This part replaces 31500-MN5-020.

31500-MN5-020AH

Unavailable

1

BATTERY ASSY. (Y50-N18L-A3) (YUASA)

31500-MN5-020AH

Unavailable

2

CABLE, STARTER BATTERY

32401-MN5-000

Unavailable

3

COVER A, STARTER MAGNETIC

32406-KT7-000

Unavailable

4

CABLE, STARTER MOTOR

32410-MZ3-000

Unavailable

5

COVER, BATTERY TERMINAL

32412-MN5-000

Unavailable

6

COVER B, MAGNETIC SWITCH

32417-MG7-000

Unavailable

7

COVER, STARTER MOTOR TERMINAL

32423-MN5-000

Unavailable

8

CABLE, MAGNETIC & STARTER REVERSE (NOT AVAILABLE)

32425-MT8-000

Unavailable

9

FUSE, BLADE (30A) This part replaces 32507-SM4-003.

98200-33000

$1.49

9

FUSE, BLADE (30A)

98200-33000

$1.49

10

CABLE, BATTERY GROUND

32601-MT8-000

$36.85

11

SWITCH ASSY., STARTER MAGNETIC

35850-MT8-000

$110.58

12

SWITCH ASSY., STARTER MAGNETIC

35850-MK3-671

$127.45

12

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-MT8-003.

35850-MK3-671

$127.45

13

SWITCH, STARTER MAGNETIC

35851-MF5-751

$106.43

14

HOLDER ASSY., FUSE

35855-MG7-751

$37.26

15

RUBBER, SHOCK ABSORBER

35856-MK5-007

Unavailable

16

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

17

BOX ASSY., MAIN FUSE

38250-MN5-003

Unavailable

18

COVER, MAIN FUSE BOX

38255-MN5-003

Unavailable

19

BOX, BATTERY

50320-MN5-000

$50.89

20

HOOK, BATTERY BAND

50322-MN5-000

Unavailable

21

CLAMP, BRAKE HOSE

50323-MN5-000

Unavailable

22

BAND, BATTERY

50325-MN5-000

$22.30

23

TUBE, BATTERY

50328-MN5-000

Unavailable

24

COLLAR, LOCK SETTING

83119-MG9-000

$5.90

25

RUBBER, BATTERY BOX

83618-323-000

$2.47

26

NUT-WASHER (6MM)

90071-MB0-000

$1.97

27

BOLT, SPECIAL (6MM)

90109-434-000

$2.77

28

SCREW-WASHER (5X10)

90153-SB2-003

$5.19

29

NUT, SPECIAL (6X7)

90303-HA0-680

$3.85

30

BOLT, RECESSED (6X12)

92301-06012-0A

$1.49

31

SCREW-WASHER (6X16)

93891-06016-08

$1.49

32

NUT, HEX. (6MM)

94002-06080-0S

$1.49

33

NUT, FLANGE (6MM)

94050-06080

$1.49

34

WASHER, PLAIN (6MM)

94101-06800

$1.49

35

WASHER, SPRING (6MM)

94111-06800

$1.49

36

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

37

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

38

FUSE (55A)

98200-65500

$1.91
