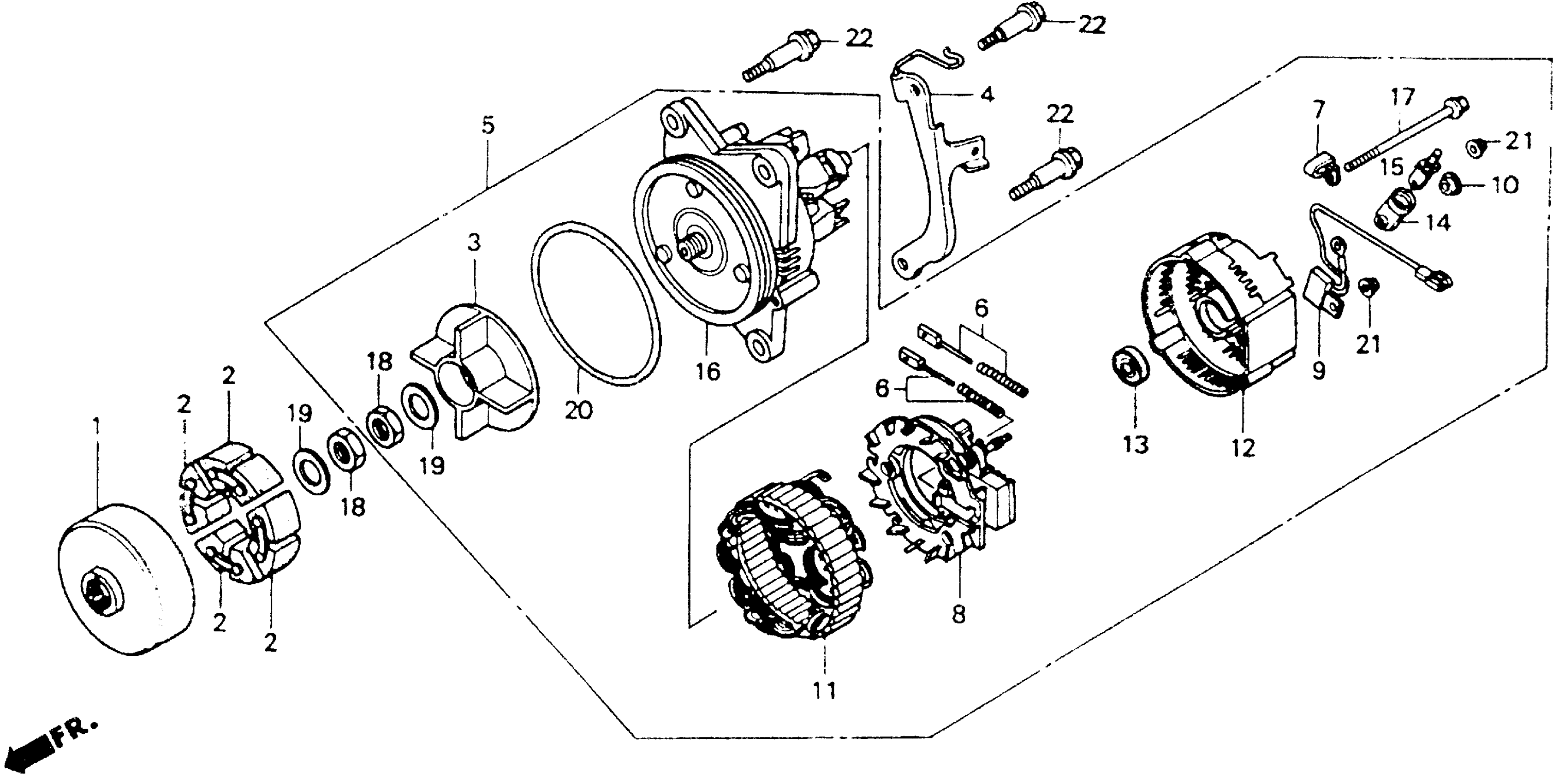

Honda GL1500AA (93) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-PA500001 ALTERNATOR Diagram

#

Description
Price

1

COUPLE, ALTERNATOR (A)

13531-MT8-000

Unavailable

2

RUBBER, ALTERNATOR DAMPER

13534-MN5-020

$6.38

3

COUPLE, ALTERNATOR (B)

13541-MN5-000

Unavailable

5

ALTERNATOR ASSY. (HITACHI) This part replaces 31100-MT2-005.

31100-MT2-015

$555.70

5

ALTERNATOR ASSY. (HITACHI)

31100-MT2-015

$555.70

6

BRUSH

31101-MN5-005

$11.90

7

CLAMP, ALTERNATOR WIRE

31103-MN5-005

Unavailable

8

RECTIFIER, REGULATE

31105-MN5-005

Unavailable

9

WIRE, ALTERNATOR

31108-MN5-005

$33.68

10

CAP, TERMINAL

31109-MN5-005

Unavailable

11

CORE, STATOR (HITACHI)

31110-MN5-005

$144.35

12

COVER, RR. (HITACHI)

31112-MN5-005

Unavailable

13

BEARING, RR. (HITACHI)

31113-MN5-005

$24.96

14

HOUSING, OUT PUT (HITACHI)

31114-MN5-005

Unavailable

15

TERMINAL, OUT PUT (HITACHI)

31115-MN5-005

$47.68

16

CORE, ROTOR (HITACHI) This part replaces 31120-MT2-005.

31120-MT2-015

$310.74

16

CORE, ROTOR (HITACHI)

31120-MT2-015

$310.74

17

BOLT, ALTERNATOR

90062-MN5-005

$1.93

18

NUT, HEX. (14MM)

90204-MN5-000

$8.38

19

WASHER (14.2X23X2.6)

90408-MN5-000

$5.13

20

O-RING (84.5X4) (ARAI)

91320-MN5-003

$6.60

21

NUT-WASHER (5MM)

94071-05080

$1.20

22

BOLT, FLANGE (8X38)

95701-08038-08

$2.07
