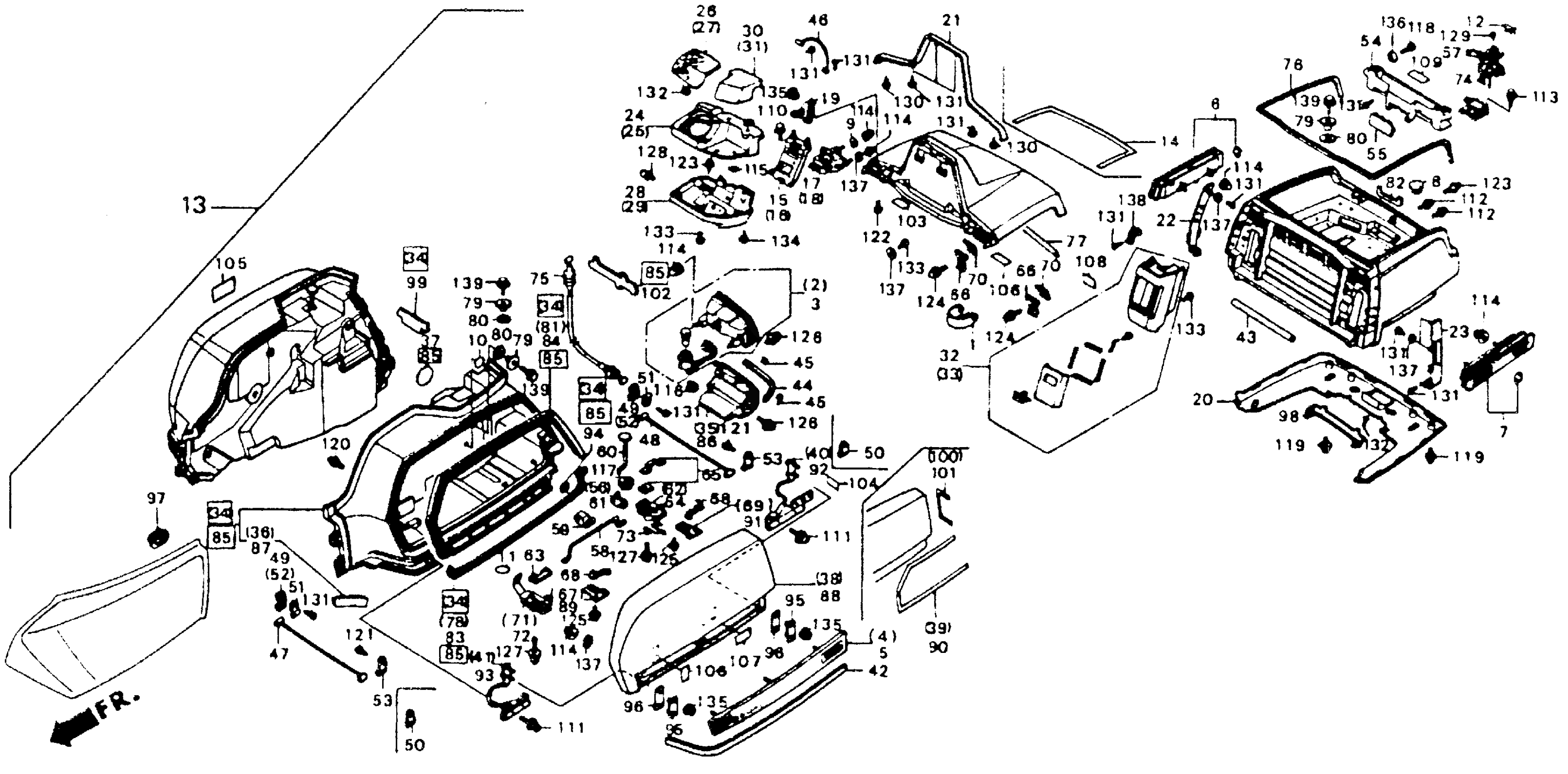

Honda GL1500AA (92) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-NA400003 SADDLEBAG&TRUNK SET (1) 92 Diagram

TAIL/STOP LIGHT ASSY., R. (12V 32/2CP)

33500-MAM-A82

Unavailable

TAIL/STOP LIGHT ASSY., R. (12V 32/2CP) This part replaces 33500-MN5-003.

33500-MAM-A82

Unavailable

TAILLIGHT ASSY., L. (12V 32/2CP)

33550-MAM-A82

$87.75

TAILLIGHT ASSY., L. (12V 32/2CP) This part replaces 33550-MN5-003.

33550-MAM-A82

$87.75

REFLECTOR, R. SADDLEBAG REFLEX

33750-MAM-A62

$49.93

REFLECTOR, R. SADDLEBAG REFLEX

33750-MN5-003

$49.93

REFLECTOR, L. SADDLEBAG REFLEX

33755-MAM-A62

Unavailable

REFLECTOR, L. SADDLEBAG REFLEX This part replaces 33755-MN5-003.

33755-MAM-A62

Unavailable

GARNISH, R. TRUNK This part replaces 33950-MN5-003.

33950-MT2-004

Unavailable

GARNISH, R. TRUNK

33950-MT2-004

Unavailable

GARNISH, L. TRUNK

33980-MT2-004

$81.75

CAP, MAIN STAND PIPE

50750-MB0-000

$5.90

WASHER, PLAIN

52427-KM4-003

Unavailable

SEAL, DOOR HOLE (30MM) (CIRCLE)(BLACK)

75826-605-300

$3.35

SEAL, DOOR HOLE (30MM) (BLACK)

91619-SE0-000

$3.35

SEAL, INSIDE PANEL (15MM)

75826-634-300

$4.21

SPRING, LOCK KEY SETTING

77235-469-000

$5.26

SADDLEBAG & TRUNK SET *PB240M* (CAMBRIDGE BLUE METALLIC) (NOT AVAILABLE)

80020-MY4-000ZB

Unavailable

SADDLEBAG & TRUNK SET *R176C* (CANDY SPECTRA RED) (NOT AVAILABLE)

80020-MY4-000ZC

Unavailable

HINGE, R. TRUNK

81130-MN5-000

Unavailable

HINGE, L. TRUNK

81131-MN5-000

Unavailable

BRACKET, R. TRUNK HINGE (B)

81136-MN5-000

$67.46

BRACKET, L. TRUNK HINGE (B)

81137-MN5-000

$67.46

STIFFENER, TRUNK LID

81139-MN5-000

Unavailable

COVER, TRUNK *R176C* This part replaces 81140-MN5-000ZN.

81140-MN5-610ZP

Unavailable

COVER, TRUNK (LOWER) *PB240M* (CAMBRIDGE BLUE METALLIC)

81140-MN5-000ZP

Unavailable

GARNISH, TRUNK LID

81145-MN5-000

Unavailable

GARNISH, R. TRUNK SIDE (NOT AVAILABLE)

81146-MN5-000

Unavailable

GARNISH, L. TRUNK SIDE (NOT AVAILABLE)

81147-MN5-000

Unavailable

COVER, R. ARMREST (TYPE1)

81150-MN5-000ZA

Unavailable

COVER, L. ARMREST (NH159L) (TYPE1)

81151-MN5-000ZA

Unavailable

COVER B, R. ARMREST (NH159L) (TYPE1)

81152-MN5-000ZA

$65.25

COVER B, L. ARMREST (NH159L) (TYPE1)

81153-MN5-000ZA

$65.25

BODY, R. ARMREST (TYPE1)

81154-MN5-000ZA

Unavailable

BODY, L. ARMREST (NH159L) (TYPE1)

81156-MN5-000ZA

Unavailable

CUSHION, R. ARMREST (NH159L) (TYPE1)

81158-MN5-000ZA

Unavailable

CUSHION, L. ARMREST (NH159L) (TYPE1)

81159-MN5-000ZA

Unavailable

POCKET ASSY. *NH159L* (COSMOPOLITAN GRAY) This part replaces 81160-MN5-000ZA.

81160-MN5-000ZG

Unavailable

POCKET ASSY. *NH159L* (COSMOPOLITAN GRAY)

81160-MN5-000ZG

Unavailable

POCKET ASSY., L. TRUNK (NH159L) (TYPE1)

81161-MN5-000ZA

Unavailable

SADDLEBAG, R. *R176C* (CANDY SPECTRA RED)

81210-MW5-670ZC

Unavailable

SADDLEBAG, R. *PB240M* (CAMBRIDGE BLUE METALLIC)

81210-MW5-670ZD

Unavailable

COVER, R. SADDLEBAG (LOWER) *PB240M* (CAMBRIDGE BLUE METALLIC)

81214-MN5-000ZN

$354.02

COVER, R. SADDLEBAG (LOWER) *R176C* (CANDY SPECTRA RED)

81214-MN5-000ZP

Unavailable

TAPE, R. SADDLEBAG

81215-MN5-300

Unavailable

SEAL, SADDLEBAG HOLE

81217-MT2-300

$4.93

LID, R. SADDLEBAG *R176C* (CANDY SPECTRA RED)

81220-MT8-000ZG

Unavailable

LID, R. SADDLEBAG *PB240M* (CAMBRIDGE BLUE METALLIC)

81220-MT8-000ZH

$420.28

HINGE, R. RR. SADDLEBAG

81230-MN5-010

$151.90

HINGE, R. FR. SADDLEBAG

81235-MN5-010

$95.90

MOLDING, SADDLEBAG

81240-MN5-000

Unavailable

RUBBER, SEAL

81241-MT2-000

Unavailable

MOLDING, SADDLEBAG COVER (LOWER)

81242-MN5-000

$22.29

CLIP, MOLDING

81247-MN5-000

$7.95

STOPPER, TRUNK LID

81250-MN5-000

$8.84

STOPPER, FR. SADDLEBAG LID

81251-MN5-000

$2.05

STOPPER, RR. SADDLEBAG LID

81252-MN5-000

$1.92

STAY, L. LID STOPPER (A)

81253-MN5-000

Unavailable

STAY B, LID STOPPER

81254-MN5-000

$5.23

GUIDE, CABLE STOPPER

81255-MN5-000

$2.59

STAY, R. LID STOPPER (A)

81256-MN5-000

Unavailable

STAY C, LID STOPPER

81257-MT2-000

Unavailable

CATCH ASSY., TRUNK

81305-MT8-771

Unavailable

COVER, OPENER UNIT

81306-MN5-003

$37.84

PLATE, R. CAM EMERGENCY ROD (MITSUI) This part replaces 81309-MN5-003.

81309-MZ3-003

Unavailable

PLATE, R. CAM EMERGENCY ROD (MITSUI)

81309-MZ3-003

Unavailable

OPENER UNIT

81310-MAM-003

Unavailable

OPENER UNIT This part replaces 81310-MN5-003.

81310-MAM-003

Unavailable

ROD, SADDLEBAG OPENER (MITSUI)

81316-MN5-003

Unavailable

SNAP, OPENER ROD (MITSUI)

81317-MN5-003

$2.43

ROD, EMERGENCY PUSH

81318-MN5-003

Unavailable

PLATE, L. CAM EMERGENCY ROD (MITSUI) This part replaces 81319-MN5-003.

81319-MZ3-003

Unavailable

PLATE, L. CAM EMERGENCY ROD (MITSUI)

81319-MZ3-003

Unavailable

CATCH, R. RR. SADDLEBAG

81320-MT8-003

Unavailable

PLATE A, SADDLEBAG CATCH SETTING

81321-MN5-000

Unavailable

CATCH, L. RR. SADDLEBAG

81322-MT8-003

$37.28

PLATE B, SADDLEBAG CATCH SET

81323-MN5-010

Unavailable

STRIKER, TRUNK

81325-MN5-000

Unavailable

STRIKER, R. FR. SADDLEBAG

81326-MN5-010

Unavailable

PLATE, STRIKER SETTING

81327-MN5-000

$3.67

STRIKER, R. RR. SADDLEBAG

81328-MN5-000

$9.16

PLATE, TRUNK STRIKER SETTING

81329-MN5-000

Unavailable

CATCH, R. FR. SADDLEBAG

81331-MT8-003

Unavailable

CATCH, L. FR. SADDLEBAG

81332-MT8-003

$41.43

SPRING, SADDLEBAG LID STOPPER

81333-MN5-000

Unavailable

LEVER ASSY., LUGGAGE BAG OPENER (MITSUI)

81335-MN5-003

Unavailable

CABLE A, SADDLEBAG OPENER

81345-MN5-000

Unavailable

RUBBER, TRUNK SEAL (A)

81350-MN5-000

$25.05

RUBBER, TRUNK SEAL (B)

81351-MN5-000

Unavailable

RUBBER, R. SADDLEBAG SEAL (A)

81352-MT8-010

$30.75

COLLAR, SADDLEBAG SETTING

81355-MN5-000

$6.60

RUBBER, BAG MOUNT

81356-MN5-000

$3.43

RUBBER, R. SADDLEBAG SEAL (D)

81357-MT8-010

$30.07

RUBBER, TRUNK SEAL (C)

81361-MN5-300

Unavailable

RUBBER, L. SADDLEBAG SEAL (A)

81382-MT8-010

$27.57

RUBBER, L. SADDLEBAG SEAL (D)

81387-MT8-010

$30.07

SADDLEBAG, L. *R176C* (CANDY SPECTRA RED)

81410-MW5-670ZC

$881.97

SADDLEBAG, L. *PB240M* (CAMBRIDGE BLUE METALLIC)

81410-MW5-670ZD

Unavailable

COVER, L. SADDLEBAG (LOWER) *PB240M* (CAMBRIDGE BLUE METALLIC)

81414-MN5-000ZN

Unavailable

COVER, L. SADDLEBAG (LOWER) *R176C* (CANDY SPECTRA RED)

81414-MN5-000ZP

$222.64

TAPE, L. SADDLEBAG

81415-MN5-300

$4.02

LID, L. SADDLEBAG *R176C* (CANDY SPECTRA RED)

81420-MT8-000ZG

$437.61

LID, L. SADDLEBAG *PB240M* (CAMBRIDGE BLUE METALLIC)

81420-MT8-000ZH

Unavailable

STRIKER, L. FR. SADDLEBAG

81426-MN5-000

Unavailable

STRIKER, L. RR. SADDLEBAG

81428-MN5-000

$7.82

HINGE, L. RR. SADDLEBAG

81430-MN5-010

$131.27

HINGE, L. FR. SADDLEBAG

81435-MN5-010

$102.13

RUBBER, HINGE SEAL (LOWER)

81437-MN5-300

$1.69

WASHER, HINGE SETTING

81438-MN5-000

$8.98

RUBBER, HINGE SEAL (UPPER)

81439-MN5-000

$5.30

GROMMET, SIDE COVER

83551-MA6-000

$3.35

COVER, LICENSE LIGHT

84705-MT8-000

$18.85

EMBLEM, SADDLEBAG (HONDA)

87111-MG9-700

Unavailable

EMBLEM, L. RR. (ASPENCADE) (NOT AVAILABLE)

87121-MW5-670

Unavailable

LABEL, TIRE

87505-MT2-300

Unavailable

LABEL, HELMET HOLDER

87511-323-670

$2.72

LABEL, TRUNK SADDLEBAG

87520-MT2-300

$4.94

LABEL, SADDLEBAG

87521-MT2-300

Unavailable

LABEL, TRUNK POCKET

87525-MT2-300

Unavailable

LABEL, KEY POSITION

87526-MAM-300

Unavailable

LABEL, KEY POSITION This part replaces 87526-MN5-300.

87526-MAM-300

Unavailable

BOLT, FLANGE (5X10)

90002-GC3-000

$2.33

SCREW, HANDLE COVER SETTING

90103-GB6-930

$3.44

SCREW (5X12)

90104-964-000

$2.34

BOLT, FLANGE (6MM)

90112-GC6-000

$3.90

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.59

NUT, CLIP

90301-GE0-000

$2.13

NUT, PLATE (5MM)

90305-MN5-000

$6.02

GROMMET

90801-MN5-010

$3.99

SCREW, PAN (5X12)

93500-05012-0G

$1.49

SCREW-WASHER (4X12)

93891-04012-07

$1.49

SCREW-WASHER (5X12)

93891-05012-00

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (5X10)

93893-05010-07

$1.49

SCREW-WASHER (5X12)

93893-05012-07

$1.49

SCREW-WASHER (5X14)

93893-05014-07

$1.49

SCREW-WASHER (5X16)

93893-05016-07

$1.49

SCREW-WASHER (5X20)

93893-05020-07

$1.49

SCREW-WASHER (5X25)

93893-05025-07

$1.49

SCREW-WASHER (5X12)

93894-05012-07

$1.49

SCREW, TAPPING (4X10)

93901-24280

$1.49

SCREW, TAPPING (4X10)

93903-24280

$1.49

SCREW, TAPPING (4X12)

93903-24380

$1.49

SCREW, TAPPING (4X16)

93903-24480

$1.49

SCREW, TAPPING (5X16)

93903-25380

$1.49

SCREW, TAPPING (5X20)

93903-25480

$1.49

NUT, FLANGE (5MM)

94050-05080

$1.49

WASHER, PLAIN (5MM)

94101-05700

$1.49

WASHER, PLAIN (5MM)

94103-05700

$1.49

CLIP, WIRE (4X50)

94591-45000

$2.92

BOLT, FLANGE (6X20)

96001-06020-07
