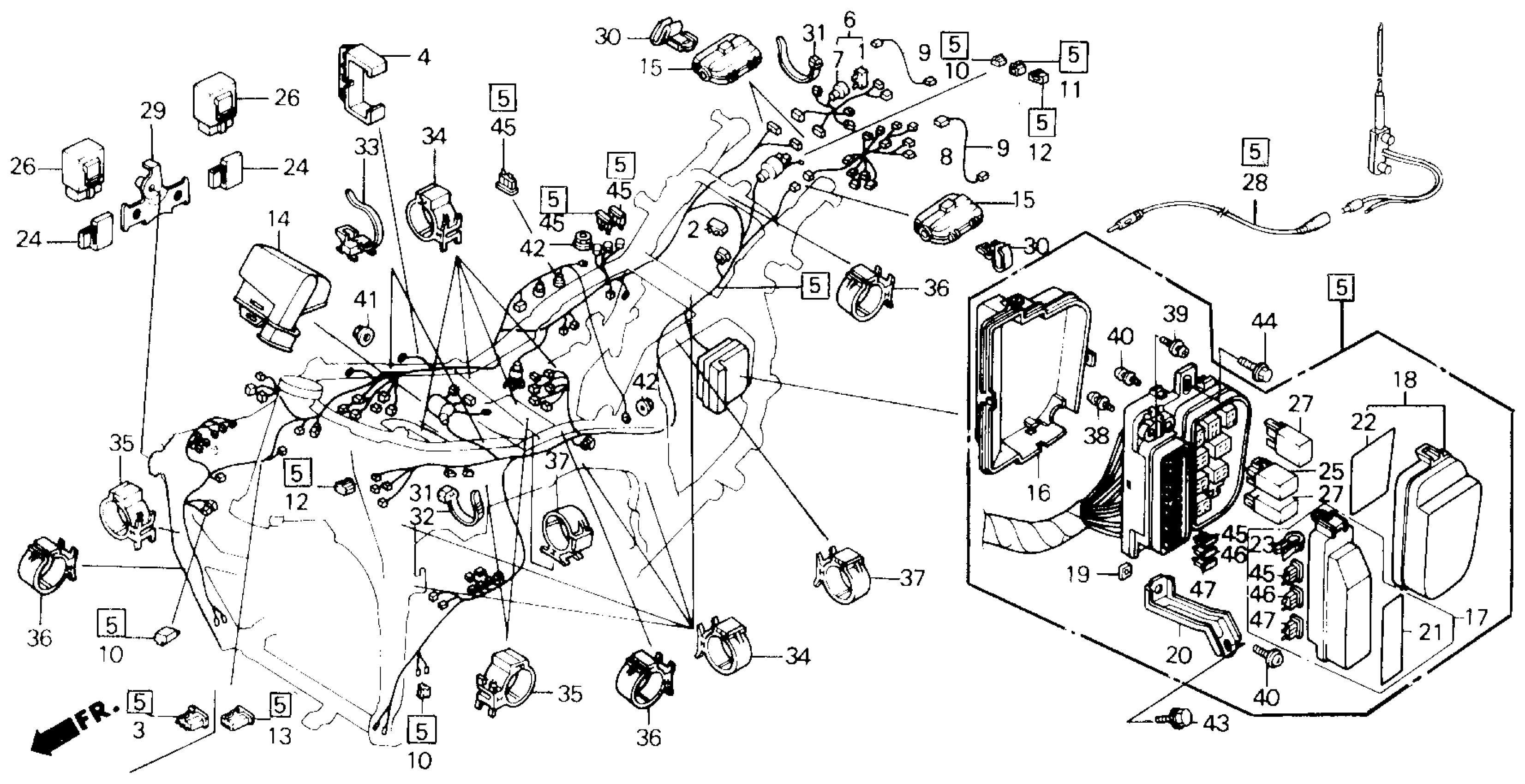

Honda GL1500AA (91) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-MA300001 WIRE HARNESS EXCEPT I Diagram

#

Description
Price

2

RECTIFIER, SILICON (SHINDENGEN)

31710-371-008

$40.03

4

HOLDER C, CONNECTOR

32012-MT8-000

Unavailable

5

WIRE HARNESS

32100-MW5-000

Unavailable

7

SUB-HARNESS, R. RR.

32101-MT8-000

Unavailable

8

SUB-HARNESS, RR.

32102-MT8-000

Unavailable

9

SUB-WIRE, TAILLIGHT & STOP

32107-MN5-000

Unavailable

10

COVER, CONNECTOR (2P)

32136-MN5-003

Unavailable

11

COVER, CONNECTOR (4P)

32137-KB2-003

Unavailable

12

COVER, CONNECTOR (6P)

32138-KB2-003

Unavailable

14

COVER, RADIO CONNECTOR

32814-MN5-010

Unavailable

15

CASE, CONNECTOR (22P)

32815-MN5-003

Unavailable

16

COVER, RELAY & FUSE BOX (LOWER)

38204-MN5-000

Unavailable

17

COVER ASSY., FUSE BOX

38205-MT8-000

Unavailable

18

COVER ASSY., RELAY BOX (NOT AVAILABLE)

38206-MT2-000

Unavailable

19

NUT, BRACKET (5MM)

38207-MN5-000

Unavailable

20

BRACKET, RELAY & FUSE BOX

38208-MN5-000

Unavailable

21

LABEL, FUSE BOX

38215-MN5-000

Unavailable

22

LABEL, RELAY BOX

38216-MT2-000

Unavailable

23

PULLER, FUSE (SUMITOMO)

38235-SA5-003

Unavailable

25

RELAY (10A)

38360-MN5-003

Unavailable

27

RELAY (20A)

38370-MN5-003

$45.80

28

SUB-FEEDER, ANTENNA (NOT AVAILABLE) This part replaces 39159-MN5-003.

39159-MN5-000

Unavailable

30

CLAMP, CONNECTOR CASE

50324-MN5-000

Unavailable

31

BAND, WIRE HARNESS

90650-MA6-720

$4.15

33

CLIP, HARNESS BAND (25MM)

90690-GHB-611

$2.18

33

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

34

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

35

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

36

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

37

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

38

SCREW-WASHER (4X8)

93893-04008-08

$1.49

39

SCREW-WASHER (4X10)

93893-04010-08

$1.49

40

SCREW-WASHER (5X10)

93893-05010-08

$1.49

41

NUT, HEX. (4MM)

94001-04000-0S

$1.49

42

NUT, FLANGE (6MM)

94050-06080

$1.49

43

BOLT, FLANGE (6X8)

95701-06008-00

$3.46

44

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

45

FUSE, BLADE (5A)

98200-30500

$1.49

45

FUSE, BLADE (5A) This part replaces 32501-MT8-003.

98200-30500

$1.49

46

FUSE, BLADE (10A)

98200-31000

$1.49

46

FUSE, BLADE (10A) This part replaces 32503-SM4-003.

98200-31000

$1.49

47

FUSE, BLADE (15A)

98200-31500

$1.49

47

FUSE, BLADE (15A) This part replaces 32504-SM4-003.

98200-31500

$1.49
