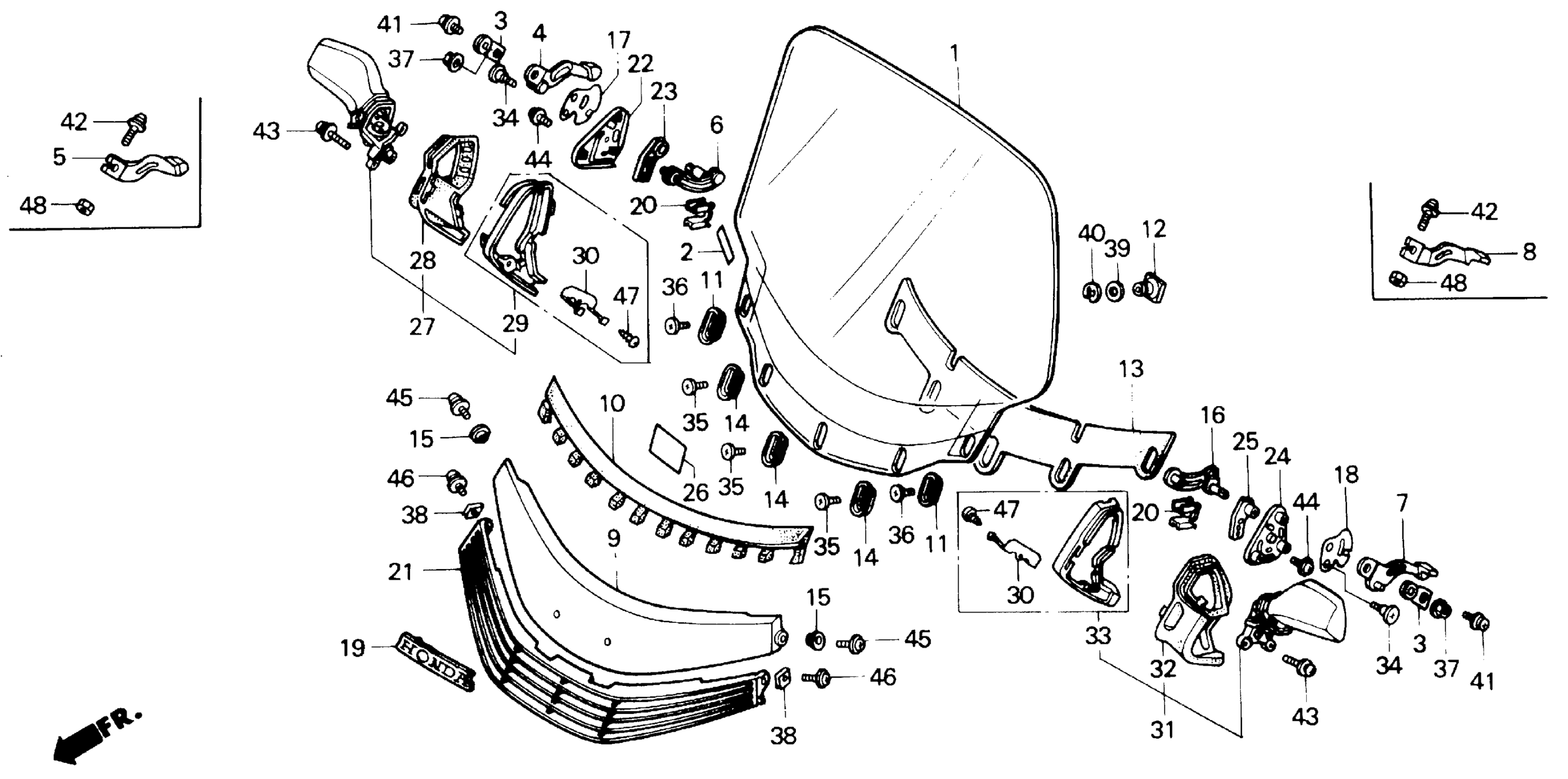

Honda GL1500AA (91) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-MA300001 WIND SCREEN EXCEPT SE Diagram

#

Description
Price

1

WINDSCREEN

64130-MW5-000

Unavailable

2

LABEL, SCREEN (NOT AVAILABLE)

64101-463-891

Unavailable

5

LEVER, R.

64107-MT8-000

Unavailable

6

PLATE, R. TENSION

64108-MAM-000

Unavailable

6

PLATE, R. TENSION This part replaces 64108-MT8-000.

64108-MAM-000

Unavailable

8

LEVER, L.

64109-MT8-000

$62.95

9

GARNISH, SCREEN (WL)

64120-MW5-000

Unavailable

10

SEAL, WINDSCREEN

64111-MT8-000

Unavailable

11

PLATE B, WINDSCREEN SETTING

64113-MN5-000

Unavailable

12

NUT, WINDSCREEN SETTING

64114-MG9-770

Unavailable

13

RUBBER, SCREEN

64115-MAM-000

$55.74

13

RUBBER, SCREEN This part replaces 64115-MN5-000.

64115-MAM-000

$55.74

14

PLATE, WINDSCREEN SETTING

64116-MN5-000

$6.22

15

COLLAR, SCREEN GARNISH

64117-MW5-000

Unavailable

16

PLATE, L. TENSION

64118-MAM-000

Unavailable

16

PLATE, L. TENSION This part replaces 64118-MT8-000.

64118-MAM-000

Unavailable

17

PLATE, R. LEVER SIDE

64123-MT8-000

Unavailable

18

PLATE, L. LEVER SIDE

64124-MT8-000

Unavailable

19

EMBLEM, SCREEN GARNISH (NOT AVAILABLE)

64125-MT8-000

Unavailable

20

CLIP, SCREEN GUIDE

64219-MN5-000

$3.37

21

LOUVER, FR. (UPPER)

64260-MN5-000

$25.41

22

BASE, R. MIRROR

64531-MN5-000

Unavailable

23

PLATE, R. PIVOT

64532-MT8-000

Unavailable

24

BASE, L. MIRROR

64631-MN5-000

$17.46

25

PLATE, L. PIVOT

64632-MT8-000

Unavailable

26

LABEL, WINDSHIELD

87522-MT2-300

Unavailable

27

MIRROR ASSY., R. *NH1Z* (BLACK-Z)

88110-MT8-000ZF

Unavailable

28

BOOT, R.

88113-MN5-003

$33.41

29

BASE ASSY., R. BACK MIRROR *NH1Z* (BLACK-Z)

88114-MN5-003ZJ

Unavailable

30

PLATE, SET

88119-MN5-000

$5.54

31

MIRROR ASSY., L. *NH1Z* (BLACK-Z)

88120-MT8-000ZF

Unavailable

32

BOOT, L.

88123-MN5-003

Unavailable

33

BASE ASSY., L. BACK MIRROR *NH1Z* (BLACK-Z)

88124-MN5-003ZJ

$116.41

34

SCREW, SPECIAL (6X8) This part replaces 90104-KT8-710.

90104-MJ0-660

$4.15

34

SCREW, SPECIAL (6X8)

90104-MJ0-660

$4.15

35

SCREW, SCREEN SETTING

90107-MN5-000

$3.12

36

SCREW, SCREEN SETTING (6X12)

90107-MT2-000

$3.24

38

NUT, PLATE (5MM)

90305-MN5-000

$6.02

39

WASHER

90501-MT2-000

$1.86

40

E-RING (8MM)

90601-473-003

$2.25

42

SCREW-WASHER (5X22)

93891-05022-07

Unavailable

43

SCREW-WASHER (5X28)

93891-05028-08

$1.49

44

SCREW-WASHER (5X12)

93893-05012-08

$1.49

44

SCREW-WASHER (5X12) This part replaces 93893-05012-18.

93893-05012-08

$1.49

45

SCREW-WASHER (5X12)

93894-05012-08

$1.49

45

SCREW-WASHER (5X12) This part replaces 93894-05012-18.

93894-05012-08

$1.49

46

SCREW-WASHER (5X16)

93894-05016-07

$1.49

47

SCREW, TAPPING (4X10)

93901-24280

$1.49

48

NUT, HEX. (5MM)

94001-050800S

$1.49
