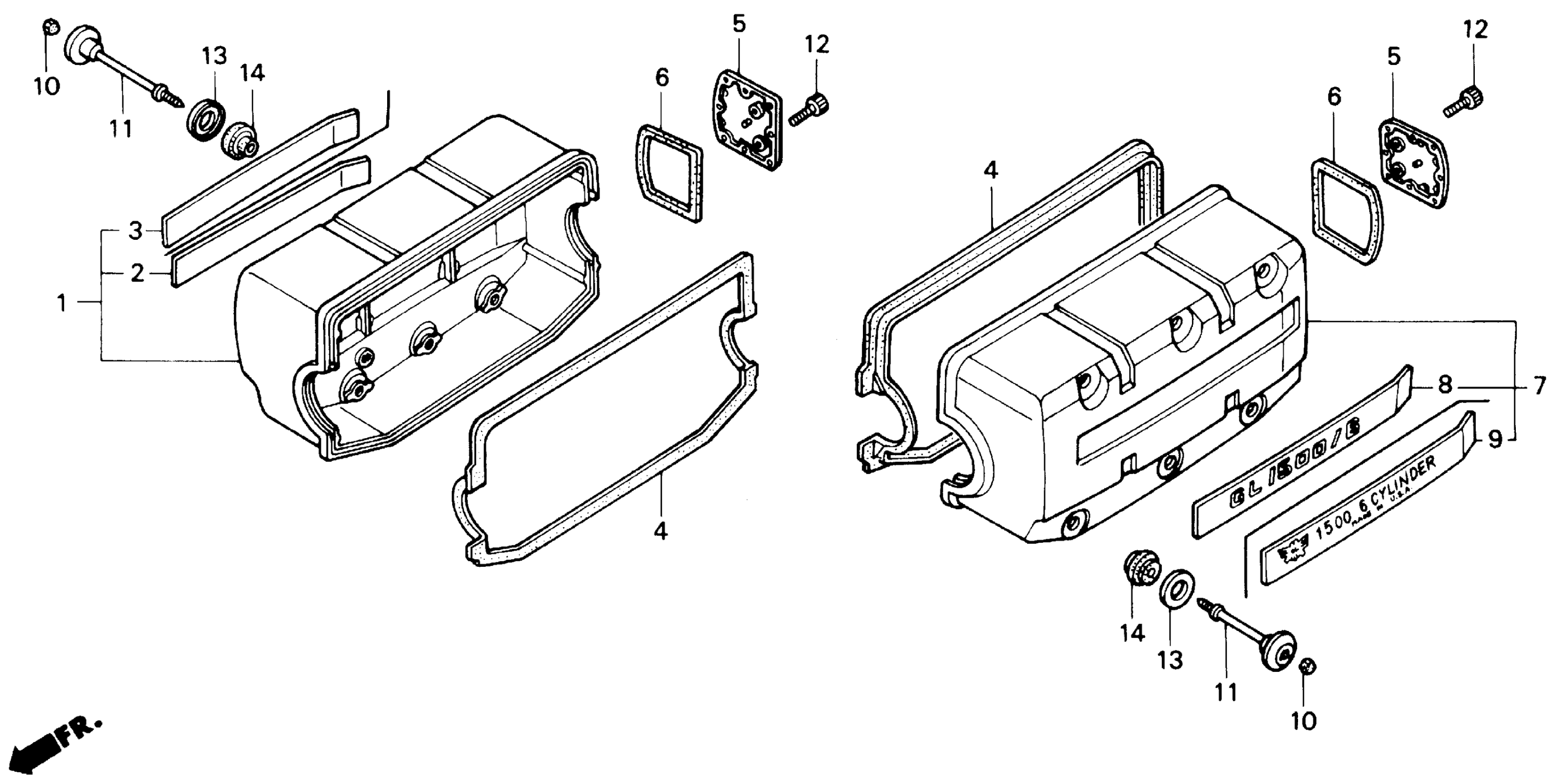

Honda GL1500AA (91) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-MA300001 CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER, R. CYLINDER HEAD (NOT AVAILABLE)

12310-MW5-000

Unavailable

2

EMBLEM, L. CYLINDER HEAD COVER (NOT AVAILABLE)

12313-MW5-300

Unavailable

4

GASKET, HEAD COVER

12314-MAF-000

$28.63

4

GASKET, HEAD COVER This part replaces 12314-MN5-000.

12314-MAF-000

$28.63

5

COVER, RR. CYLINDER HEAD

12317-MN5-000

$44.15

6

GASKET, RR. CYLINDER HEAD COVER

12318-MN5-000

$9.55

7

COVER, L. CYLINDER HEAD (NOT AVAILABLE)

12320-MW5-000

Unavailable

8

EMBLEM, L. CYLINDER HEAD COVER

12323-MW5-300

Unavailable

10

PLUG, HEX. (6MM)

12392-MJ0-000

$4.53

11

BOLT, SPECIAL (6X72)

90018-MN5-000

Unavailable

12

BOLT, SOCKET (6X18)

90040-MN5-000

$3.31

13

WASHER, MOUNTING RUBBER

90541-MB0-000

$4.80

14

RUBBER, MOUNTING

90542-MB0-000

$3.15
