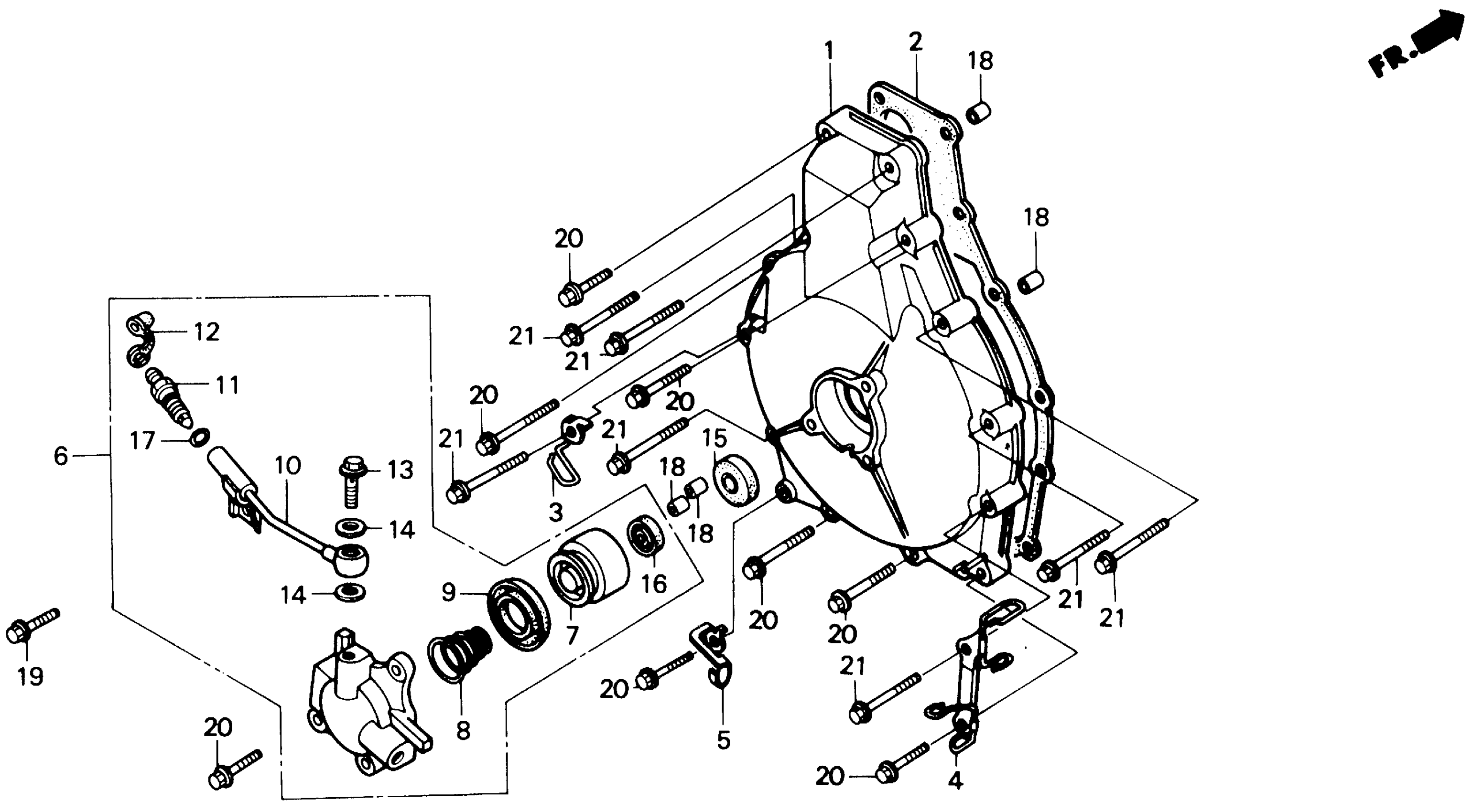

Honda GL1500AA (91) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-MA300001 CLUTCH COVER Diagram

#

Description
Price

1

COVER, CLUTCH This part replaces 11341-MN5-000.

11341-MN5-020

Unavailable

1

COVER, CLUTCH This part replaces 11341-MN5-010.

11341-MN5-020

Unavailable

1

COVER, CLUTCH

11341-MN5-020

Unavailable

2

GASKET, CLUTCH COVER

11351-MN5-651

$24.66

3

CLAMP, TUBE (A)

11352-MT2-000

Unavailable

4

CLAMP, TUBE (C)

11354-MT2-000

Unavailable

5

CLAMP, FUEL TRAY DRAIN TUBE

17127-MT2-000

Unavailable

6

CYLINDER ASSY., SLAVE

22860-MN5-000

$193.20

7

PISTON, SLAVE CYLINDER

22863-MJ8-003

$26.65

8

SPRING, SLAVE CYLINDER

22864-MB0-003

$6.25

9

CUP, SLAVE CYLINDER

22865-MJ8-003

$11.50

10

PIPE, BLEEDER

22867-MN5-000

Unavailable

11

SCREW, BLEEDER

43352-MG9-006

$5.44

12

CAP, BLEEDER This part replaces 43353-MG9-006.

43353-461-771

$5.05

12

CAP, BLEEDER This part replaces 43353-443-761.

43353-461-771

$5.05

12

CAP, BLEEDER

43353-461-771

$5.05

13

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

14

WASHER, OIL BOLT

90545-300-000

$3.99

15

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$4.06

16

OIL SEAL (8X18X5)

91209-MB0-003

$4.06

17

O-RING

91355-MG9-006

$3.15

18

PIN, DOWEL (8X14)

94301-08140

$2.25

19

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

20

BOLT, FLANGE (6X28)

95701-06028-08

$2.08

21

BOLT, FLANGE (6X40)

95701-06040-08

$1.80
