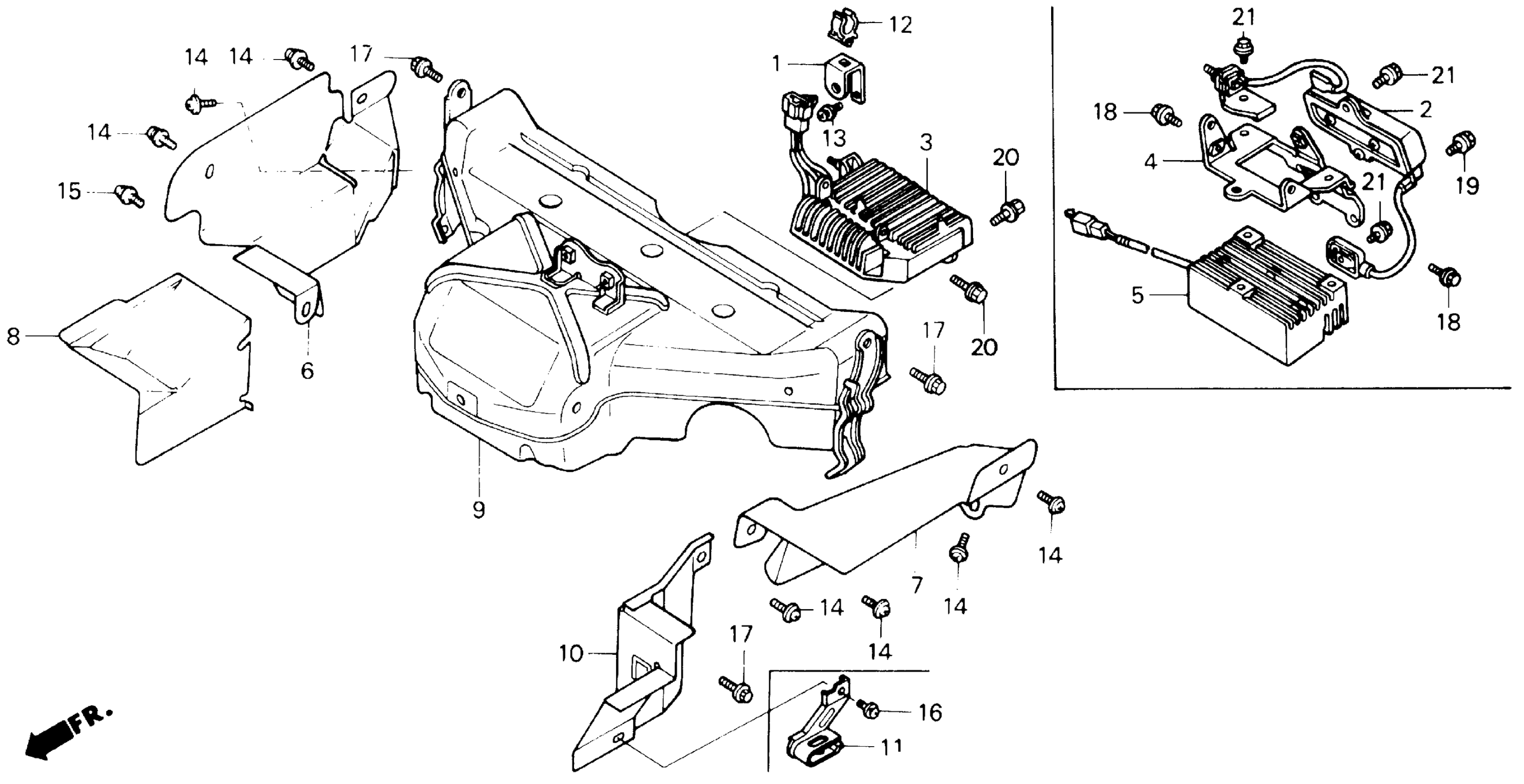

Honda GL1500AA (91) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-MA300001 CHAMBER PROTECTOR Diagram

#

Description
Price

1

HOLDER, REVERSE CONNECTOR

31203-MT8-000

Unavailable

3

RESISTOR ASSY., REVERSE

36280-MT8-003

Unavailable

6

PROTECTOR, R. HEAT

50270-MN5-000

Unavailable

7

PROTECTOR, L. HEAT

50271-MN5-000

Unavailable

8

GUARD, R. FR. HEAT

50272-MN5-000

Unavailable

9

PROTECTOR, CHAMBER (UPPER)

50273-MT2-000

Unavailable

10

GUARD, L. FR. HEAT (NOT AVAILABLE)

50274-MN5-000

Unavailable

12

CLIP, CABLE

90659-MT8-003

$2.29

13

SCREW-WASHER (5X10)

93892-05010-08

$1.04

14

BOLT, FLANGE (5X10)

90196-MN5-000

$2.03

15

BOLT, FLANGE (5X10)

90196-MN5-000

$2.03

17

BOLT, FLANGE (6X10)

95701-06010-08

$1.46

20

BOLT, FLANGE (6X14)

95701-06014-08

$1.48
