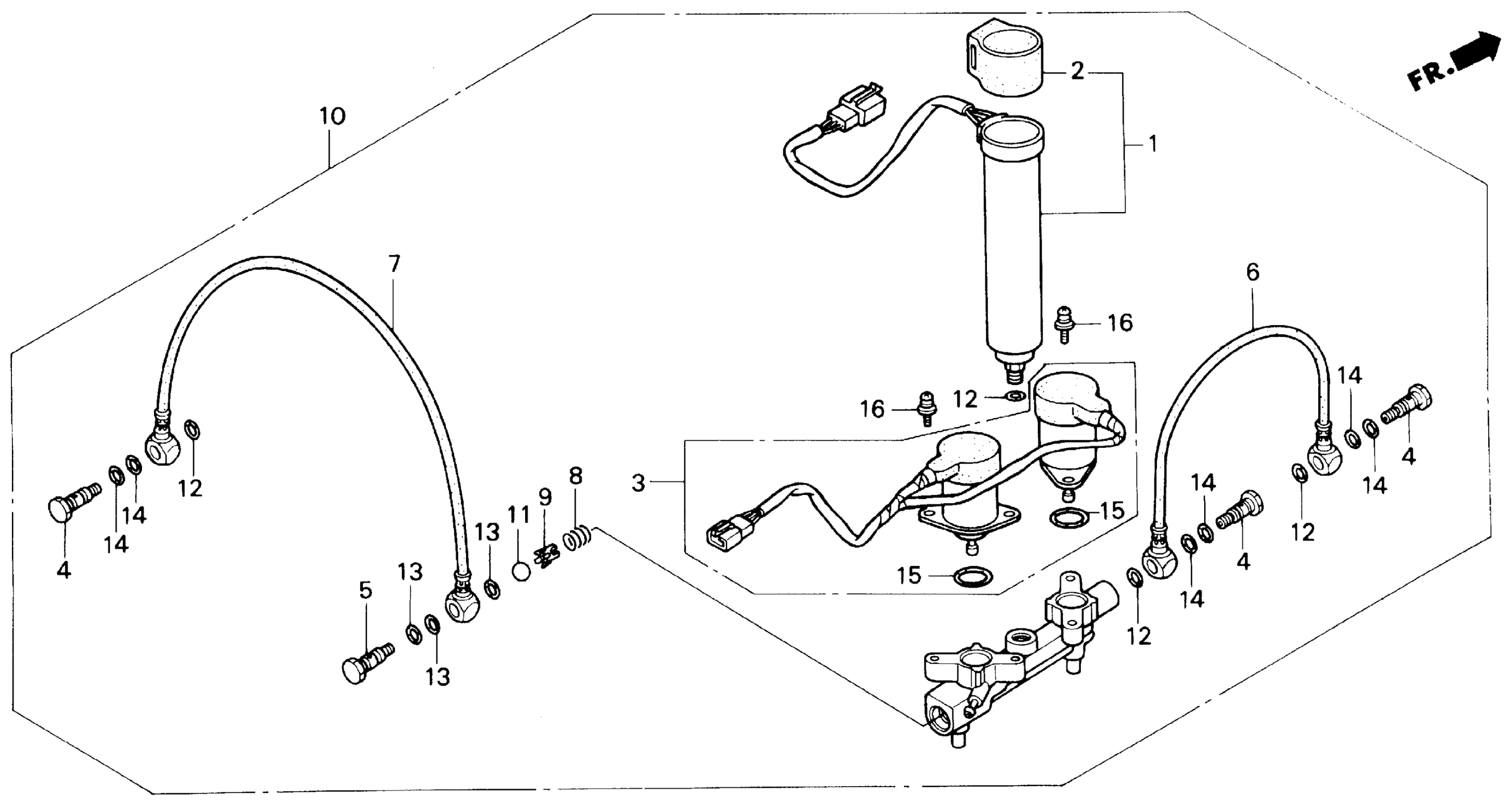

Honda GL1500AA (91) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-MA300001 AIR DISTRIBUTOR Diagram

SENSOR ASSY., AIR PRESSURE

35660-MN5-000

Unavailable

SETTING, AIR SENSOR

35665-MB9-950

Unavailable

VALVE ASSY., LEVELING

38500-MN5-000

Unavailable

BOLT, AIR HOSE

52628-MG9-871

Unavailable

BOLT, AIR HOSE

52628-MG9-951

Unavailable

HOSE, AIR (SHOWA)

52650-MN5-003

Unavailable

HOSE, AIR (E) (SHOWA)

52660-MN5-003

Unavailable

SPRING, VALVE (NOT AVAILABLE)

52723-MB9-870

Unavailable

WASHER, CAP

52726-MB9-871

Unavailable

DISTRIBUTOR ASSY., AIR (SHOWA)

52730-MN5-003

Unavailable

BALL, STEEL (10)

90211-MB9-870

Unavailable

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

O-RING (5.8X1.9)

91305-323-000

$2.92

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

O-RING (7MM)

91351-671-004

Unavailable

O-RING, LEVELING VALVE

91357-MG9-951

Unavailable

SCREW-WASHER (5X12)

93893-05012-08

$1.49
