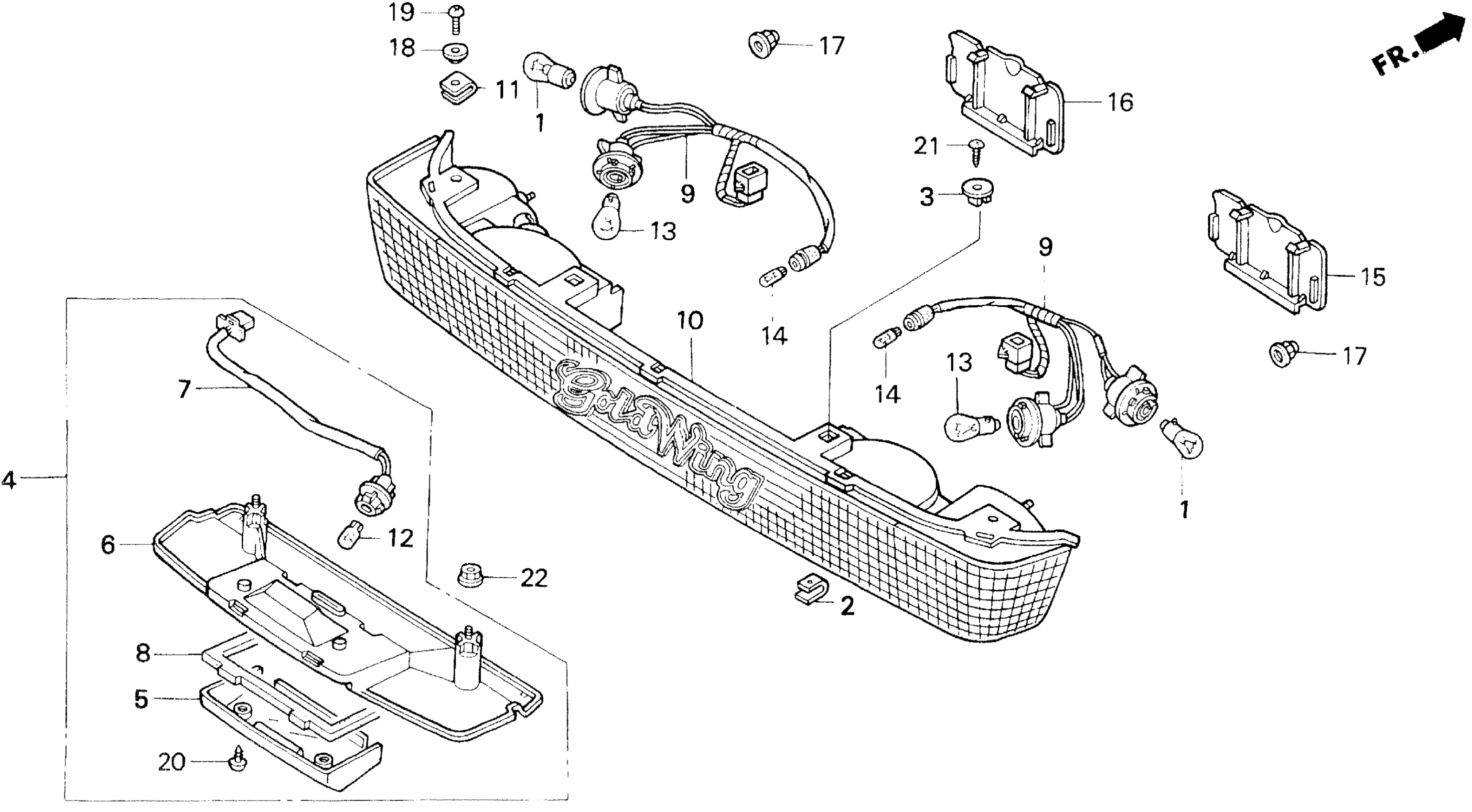

Honda GL1500AA (00) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-YA200001 TRUNK LIGHT Diagram

#

Description
Price

1

BULB, FR. TURN (12V 21W) (AMBER) (STANLEY)

33301-S04-004

$9.12

2

NUT, SPECIAL

33407-MB2-003

Unavailable

3

NUT B, SPECIAL

33408-MN5-003

Unavailable

4

LIGHT ASSY., LICENSE (12V 3CP)

33720-MT2-004

Unavailable

5

LENS, LICENSE LIGHT

33726-MT2-004

Unavailable

6

BASE, LICENSE LIGHT

33727-MT2-004

Unavailable

7

SOCKET, LICENSE This part replaces 33728-MT2-004.

33728-MT2-602

Unavailable

7

SOCKET, LICENSE

33728-MT2-602

Unavailable

8

GASKET, LICENSE LIGHT SEAL

33729-MN5-003

$10.87

9

WIRE, TRUNK COMBINATION

33788-MAM-A82

$23.90

10

HOUSING, TRUNK LIGHT

33790-MAM-A82

Unavailable

11

NUT, PLATE

33792-MN5-003

Unavailable

12

BULB (12V 5W 3CP) (STANLEY)

34901-SB0-671

$3.14

13

BULB, STOP & TAILLIGHT (12V 27/7W)

34906-SA5-671

$2.80

14

BULB 12V 2.3W WED This part replaces 34908-MB0-003.

34275-S2X-003

$3.23

15

COVER, R. TRUNK LIGHT

81358-MN5-000

Unavailable

16

COVER, L. TRUNK LIGHT

81359-MN5-000

Unavailable

17

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.21

18

WASHER

90556-MB4-000

$2.38

19

SCREW, PAN (5X14)

93500-05014-0G

$3.32

20

SCREW, TAPPING (4X20)

93901-34520

$0.81

21

SCREW, TAPPING (5X16)

93903-25380

$0.83

22

NUT, FLANGE (5MM)

94050-05080

$0.33
