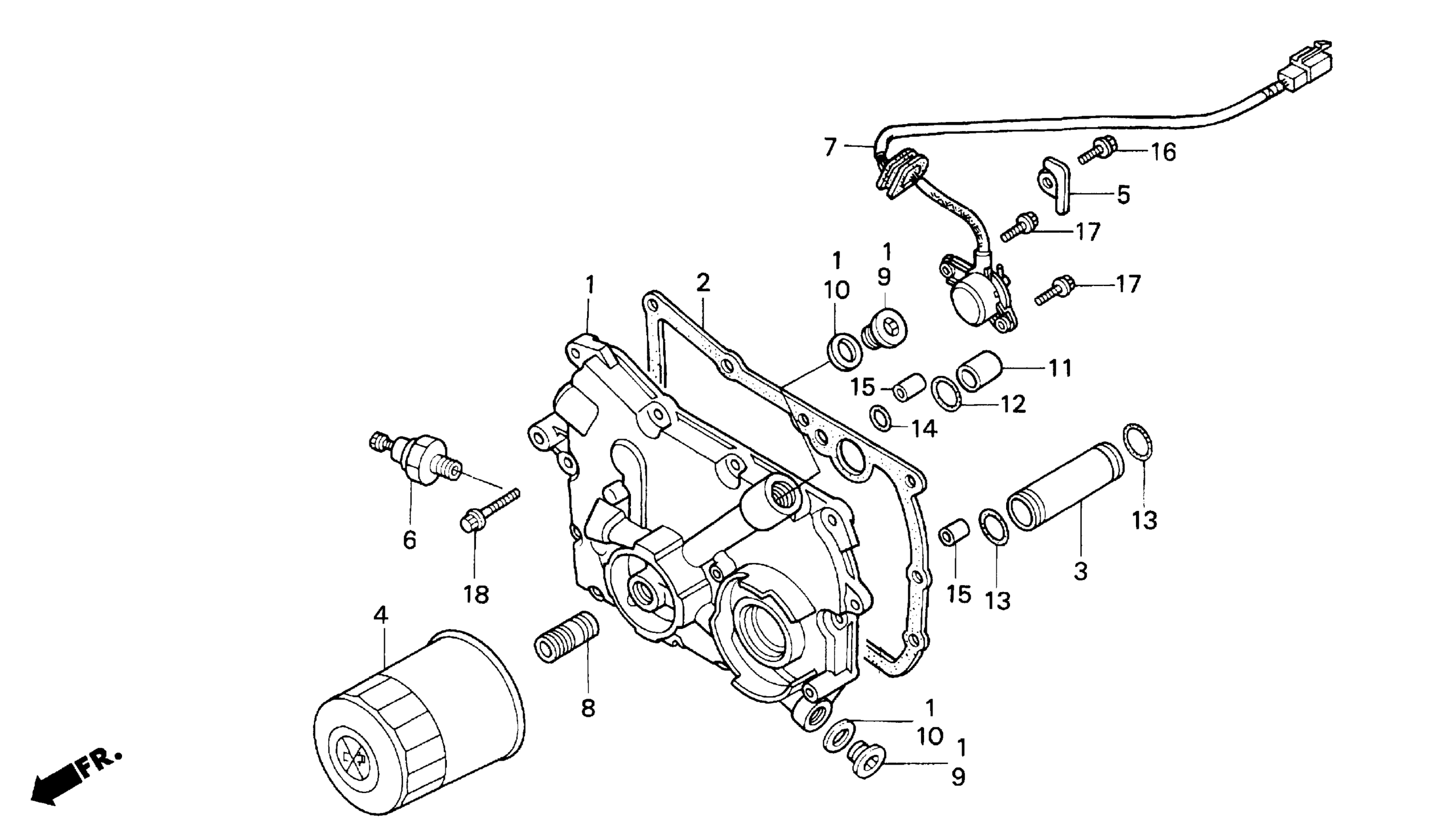

Honda GL1500AA (00) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-YA200001 TRANSMISSION COVER Diagram

COVER, TRANSMISSION

11360-MZ0-000

Unavailable

GASKET, TRANSMISSION COVER

11391-MN5-650

$20.80

PIPE, OIL PASSAGE

15311-MN5-000

Unavailable

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

FILTER, OIL (WAKO FILTER) This part replaces 15410-MM9-013.

15410-MFJ-D02

$15.84

CLAMP, CHANGE SWITCH WIRE

30411-MN5-000

$4.13

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

SWITCH ASSY., CHANGE

35759-MAM-A81

Unavailable

BOSS, OIL FILTER

90019-MB0-000

$8.61

BOLT, SEALING (20MM)

90048-MN5-000

$13.75

WASHER, SEALING (20MM)

90441-MN5-000

$5.08

PIN, DOWEL (14X12)

90706-MN5-000

Unavailable

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (15.8X2.5) (ARAI)

91301-MC7-003

$4.52

O-RING (15.8X2.5) (ARAI) This part replaces 91305-MN5-003.

91301-MC7-003

$4.52

O-RING (5.4X3.2) (NOK)

91315-MN5-004

$2.90

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
