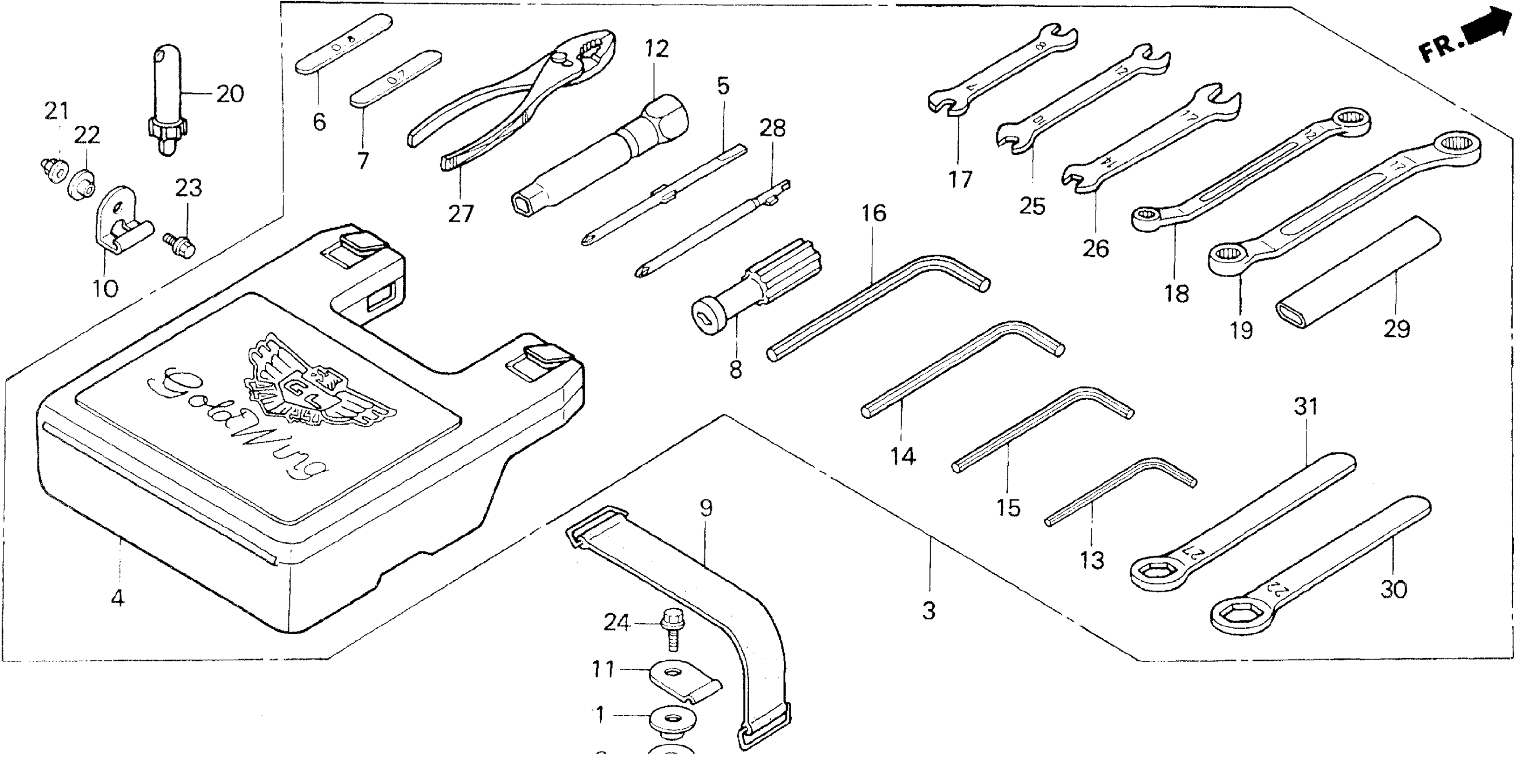

Honda GL1500AA (00) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-YA200001 TOOLS Diagram

#

Description
Price

1

COLLAR, SADDLEBAG SETTING

81355-MN5-000

$6.15

2

RUBBER, BAG MOUNT

81356-MN5-000

$3.12

3

TOOL SET

89010-MZ3-000

$91.96

4

BOX, TOOL (NOT AVAILABLE)

89101-MN5-000

Unavailable

5

SCREWDRIVER (NO.2 PHILLIPS -)

89102-538-000

$5.23

6

GAUGE, FEELER (0.8)

89103-MG9-680

Unavailable

7

GAUGE, FEELER (0.7MM)

89103-371-000

$3.08

8

GRIP

89103-538-000

$3.69

9

BAND, TOOL SETTING

89105-MN5-000

Unavailable

10

STAY, TOOL SETTING (A)

89106-MN5-000

$5.39

11

PLATE, TOOL SET

89108-MT2-000

Unavailable

12

WRENCH, PLUG

89216-MB0-000

$23.76

13

WRENCH, HEX. (4MM)

89221-KW3-000

$5.46

14

WRENCH, HEX. (6MM)

89221-371-000

$3.87

15

WRENCH, HEX. (5MM)

89221-429-000

$3.52

16

WRENCH, HEX. (8MM) (NOT AVAILABLE)

89222-371-000

Unavailable

17

WRENCH (7X8) (OPEN END)

89224-MZ3-000

Unavailable

18

WRENCH, EYE (10X12)

89227-461-000

$22.81

19

WRENCH, EYE (14X17) (NOT AVAILABLE)

89228-MR8-000

$28.52

20

GAUGE, AIR PRESSURE | (Optional).

89301-MN5-003

$27.99

21

NUT, CAP (6MM)

90201-428-900

$2.03

22

WASHER (6X20)

90512-KF9-900

$2.85

23

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable

24

BOLT, FLANGE (6X20)

96001-06020-07

$1.23

25

SPANNER (10X12)

99001-10120

$4.36

26

SPANNER (14X17)

99001-14170

$6.96

27

PLIERS (150) (NOT AVAILABLE)

99002-15000

$6.96

28

DRIVER 2, PLUS SCREW (NO.3)

99003-20000

$3.05

29

HANDLE, EYE WRENCH (12MM)

99006-12000

$2.76

30

WRENCH, EYE (22MM)

99006-22000

$3.75

31

WRENCH, EYE (27MM)

99006-27000

$4.13
