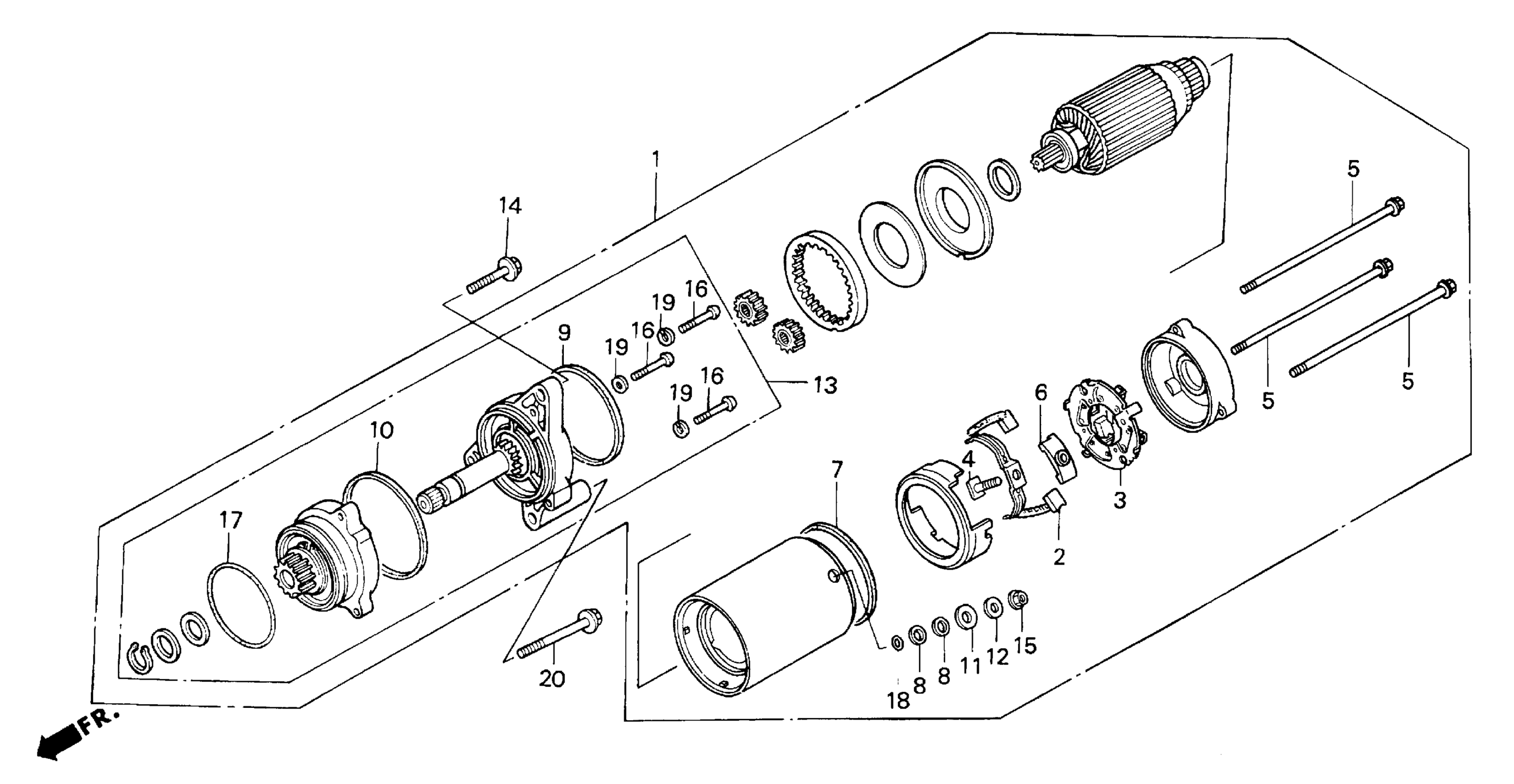

Honda GL1500AA (00) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-YA200001 STARTING MOTOR Diagram

#

Description
Price

1

STARTER MOTOR ASSY., & REVERSE

31200-MT8-018

Unavailable

2

BRUSH SET, TERMINAL

31201-MT8-008

$33.19

3

HOLDER SET, BRUSH

31203-MT8-008

$26.46

4

BOLT, TERMINAL

31204-MN5-008

$4.23

5

BOLT, SETTING

31205-MT8-008

Unavailable

6

INSULATOR, TERMINAL

31206-MN5-008

$10.34

7

RING

31207-KS5-901

$3.12

8

WASHER, INSULATOR

31207-MN5-008

$3.26

9

RING, SEAL

31207-179-711

$4.22

10

RING

31208-MG9-004

$5.56

11

WASHER, INSULATOR

31208-MN5-008

$3.26

12

WASHER (6MM)

31209-MN5-008

$3.26

13

GEAR ASSY.

31210-MT8-008

Unavailable

14

BOLT, FLANGE CAP (8X38)

90024-MZ0-000

Unavailable

15

NUT-WASHER (6MM)

90071-MB0-000

$1.97

16

BOLT (5X39)

91001-MN5-008

$3.15

17

O-RING (59.6X2.4)

91309-MN5-008

$8.66

18

O-RING

91320-MB0-000

$2.43

19

WASHER, SPRING (5MM)

94111-05000

$1.49

20

BOLT, FLANGE (8X60)

95701-08060-02

$2.79
