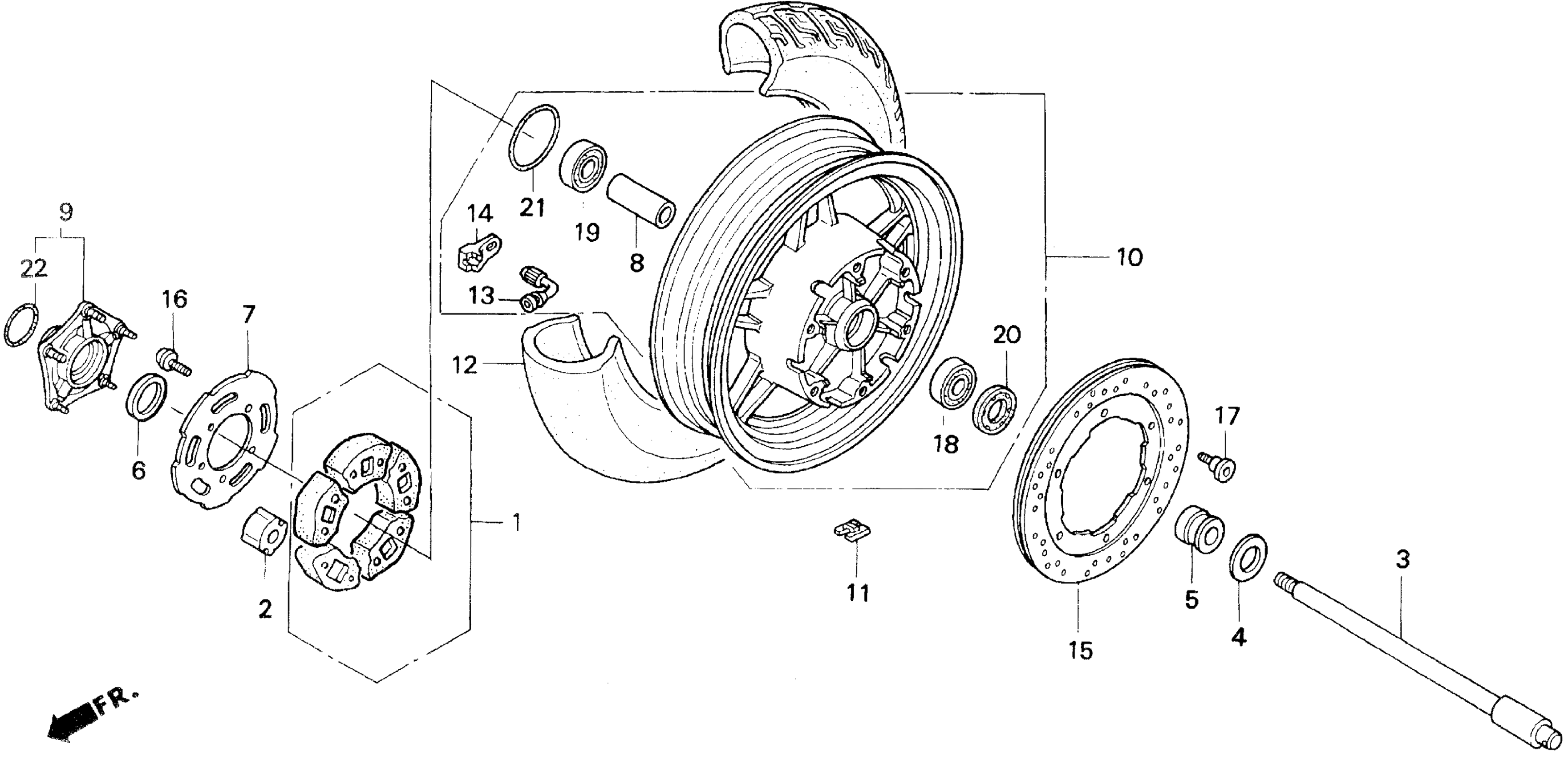

Honda GL1500AA (00) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-YA200001 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL This part replaces 06410-MZ0-A00.

06410-MAH-A60

$50.65

2

PIECE, DAMPER WHEEL

41242-MR5-000

$17.49

3

AXLE, RR. WHEEL

42301-MN5-000

Unavailable

4

SPACER, RR. BRAKE SIDE

42312-463-000

$13.39

5

COLLAR, RR. BRAKE PANEL SIDE

42313-422-000

$38.23

6

WASHER, THRUST

42616-MAJ-G20

$7.32

7

HOLDER, DAMPER

42617-MT8-000

$42.97

8

COLLAR, RR. AXLE DISTANCE

42620-MW5-000

Unavailable

9

FLANGE SET, FINAL DRIVEN

42630-MT8-305

$309.64

10

WHEEL SET, RR. This part replaces 42650-MW5-305.

42650-MW5-315

Unavailable

10

WHEEL SET, RR.

42650-MW5-315

Unavailable

11

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

11

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

11

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

12

TIRE, RR. (160/80-16) (M/C 75H) (DUNLOP) This part replaces 42711-MN5-015.

42711-MN5-025

Unavailable

13

VALVE, RIM (DUNLOP)

42753-MN5-004

$16.38

14

HOLDER, RIM VALVE

42754-MN5-000

$5.12

15

DISK, RR. BRAKE

43251-MT8-000

$494.08

16

BOLT, DISK (6X17)

90106-MBB-000

$3.65

17

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

17

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

18

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$27.50

19

BEARING, RADIAL BALL (20X47X20.6) (NTN)

91053-MN5-003

$74.94

20

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$12.13

20

DUST SEAL (30X47X8)

91253-443-762

$12.13

21

O-RING (61X2)

91302-MA6-003

$5.17

22

O-RING (50.5X3.5) (ARAI)

91358-MG9-003

$3.76
