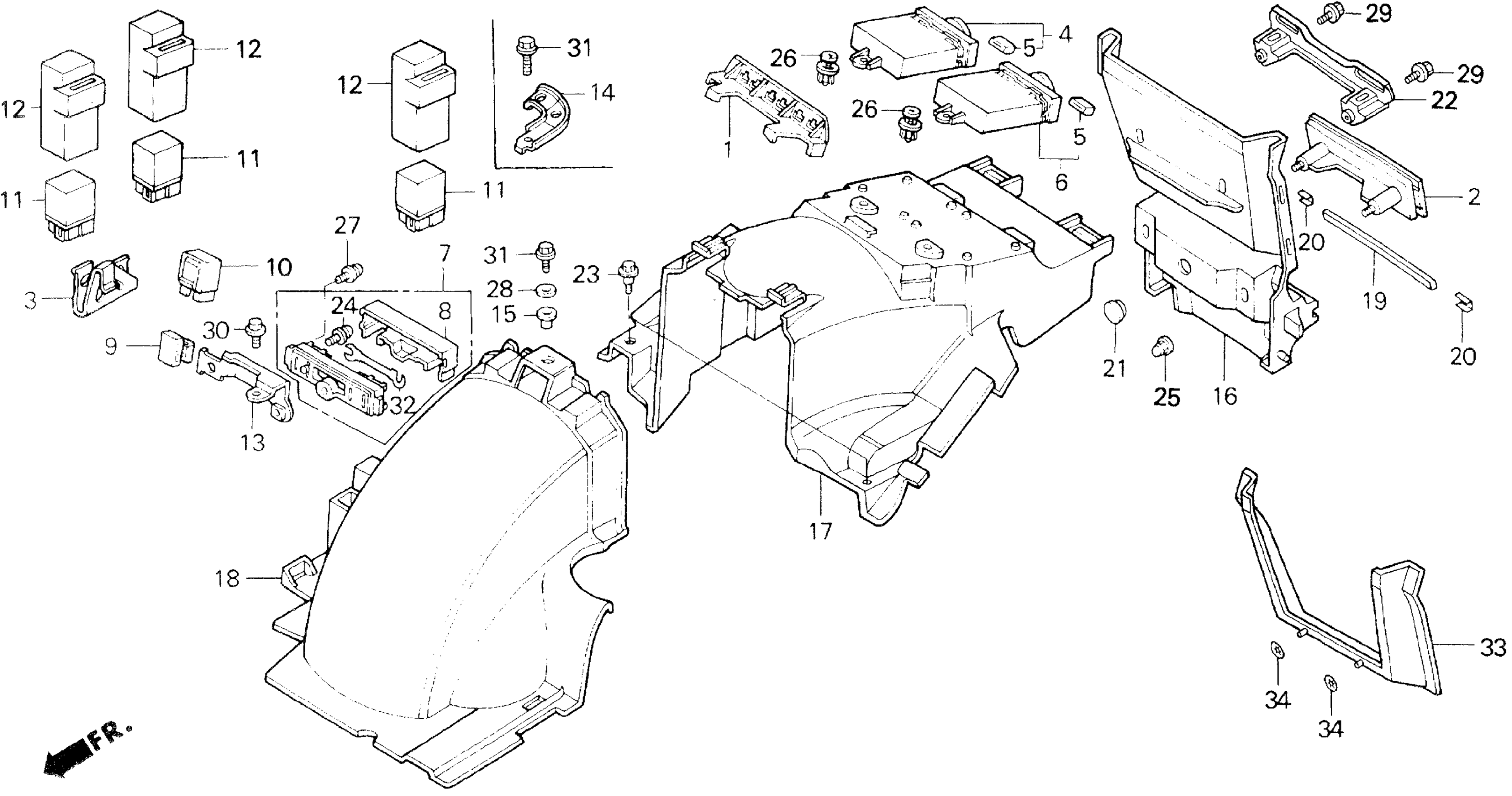

Honda GL1500AA (00) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-YA200001 REAR FENDER Diagram

HOLDER, CONNECTOR

32010-MN5-000

Unavailable

REFLECTOR, RR. REFLEX

33742-MT2-004

Unavailable

STAY, START RELAY

35853-MT8-000

Unavailable

CONTROL UNIT, REVERSE

36400-MT8-003

Unavailable

CAP, CONTROL UNIT

36405-MN5-000

Unavailable

CONTROLLER, AUTO CRUISE

36700-MZ3-003

Unavailable

BOX ASSY., REVERSE FUSE

38260-MN5-003

$24.25

COVER, FUSE BOX

38265-MN5-003

$5.78

SUSPENSION, TURN SIGNAL RELAY

38306-MF5-770

$5.26

RELAY (20A)

38380-MN5-003

$38.31

RELAY, STARTER (OMRON)

38501-KG8-004

$45.33

SUSPENSION, STARTER RELAY (OMRON)

38506-KG8-004

Unavailable

STAY, MAIN RELAY

50230-MN5-000

Unavailable

COLLAR, FR. FENDER

61105-MA3-000

$3.46

FENDER A, RR. *R176C* (CANDY SPECTRA RED) This part replaces 80100-MAM-A80ZB.

80100-MAM-D40ZB

Unavailable

FENDER A, RR. *NH1Z* (BLACK-Z) This part replaces 80100-MAM-A80ZG.

80100-MAM-D40ZE

Unavailable

FENDER A, RR. *NH1Z* (BLACK-Z)

80100-MAM-D40ZE

Unavailable

FENDER B, RR.

80101-MN5-000

$47.71

FENDER C, RR.

80102-MN5-000

Unavailable

MOLDING, RR. FENDER

81245-MN5-000

Unavailable

CLIP, MOLDING

81247-MN5-000

$7.39

GROMMET, DRAIN HOLE (25MM)

82871-671-000

$4.15

BRACKET, NUMBER PLATE

84700-MN5-000

$9.36

BOLT, FLANGE (6MM)

90112-GC6-000

$3.55

SCREW-WASHER (5X10)

90153-SB2-003

$4.96

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.21

SCREW, FILLER NECK RIVET

90670-SB2-671

$5.75

SCREW-WASHER (6X16)

93891-06016-08

$1.12

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

WASHER, PLAIN (6MM)

94101-06800

Unavailable

BOLT, FLANGE (6X12)

95701-06012-07

$1.48

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

BOLT, FLANGE (6X14)

95701-06014-08

$1.48

FUSE (65A)

98200-66500

$2.09

FENDER, RR. COVER

80105-MAM-A80

Unavailable

NUT, PUSH (3MM) This part replaces 90310-SB2-003.

90301-ST0-003

$2.87
