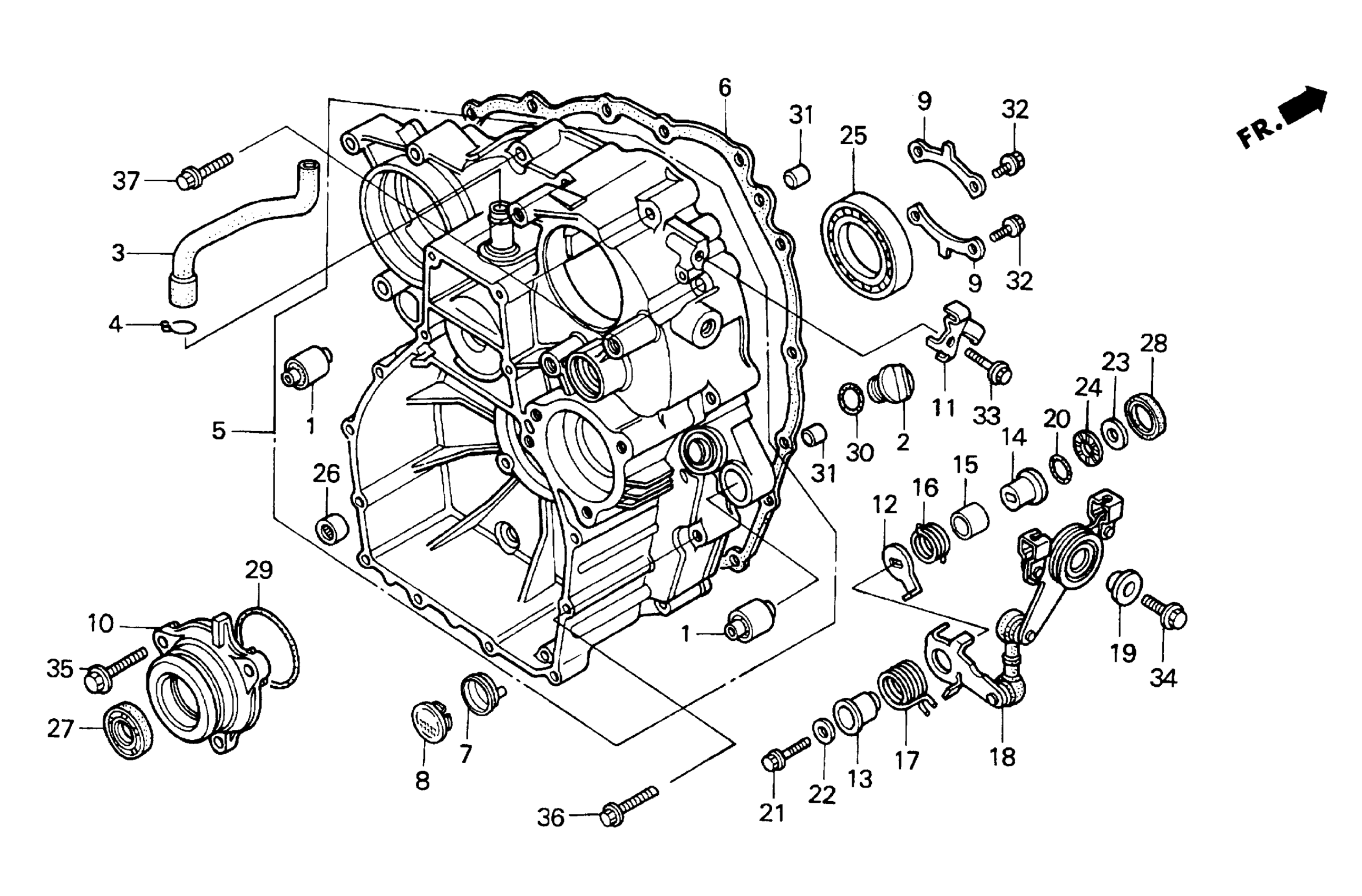

Honda GL1500AA (00) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-YA200001 REAR CASE Diagram

#

Description
Price

1

BUSH, ENGINE HANGER (B)

11141-MN5-000

Unavailable

2

CAP, OIL FILLER

15611-MB0-000

$8.54

3

TUBE, BREATHER

15761-MN5-000

Unavailable

4

CLIP, AIR HOSE (21.5)

18532-634-670

$7.39

5

CASE, RR.

21111-MT2-010

Unavailable

6

GASKET, RR. CASE

21112-MN5-650

$39.24

7

BODY, SCAVENGE OIL PUMP STRAINER

21116-MT8-000

Unavailable

8

CAP, SCAVENGE OIL PUMP STRAINER

21117-MT8-000

Unavailable

9

PLATE, PRIMARY BEARING SETTING

21122-MN5-000

$8.88

10

HOLDER, FINAL SHAFT BEARING

23751-MN5-000

$102.12

11

PLATE This part replaces 28214-MN5-010.

28214-MZ0-J10

Unavailable

12

PLATE, LOST MOTION

28215-MN5-000

Unavailable

13

COLLAR (22MM)

28218-MN5-010

Unavailable

14

COLLAR, REVERSE LEVER SPRING

28219-MN5-010

$13.78

15

BUSH, REVERSE SPRING

28221-MN5-000

$5.14

16

SPRING, REVERSE LEVER

28224-MN5-000

Unavailable

17

SPRING, LOST MOTION

28226-MN5-000

Unavailable

18

ARM, REVERSE SHIFT This part replaces 28230-MAM-L40.

28230-MAM-L41

Unavailable

18

ARM, REVERSE SHIFT

28230-MAM-L41

Unavailable

19

COLLAR, REVERSE SHIFT ARM

28234-MN5-000

Unavailable

20

O-RING

51996-SA5-800

$1.84

21

BOLT, FLANGE (6X20)

90014-MN5-000

$4.94

22

WASHER (6MM)

90485-VM0-000

$2.80

23

WASHER (12.2X23X1.6)

90492-MN5-000

$4.17

24

BEARING, NEEDLE (12MM) (THOMPSON)

91001-147-006

$12.14

25

BEARING, RADIAL BALL (6010) (NTN)

91002-MN5-003

$70.43

26

BEARING, NEEDLE (12X16X10)

91024-GJ5-003

$16.99

27

OIL SEAL (28X48X9) (NOK)

91204-MN5-005

$12.15

28

OIL SEAL (27X34X5)

91208-MN5-003

$3.77

29

O-RING (62.4X3.1) This part replaces 91304-MN5-003.

91316-PE7-730

$5.30

29

O-RING (62.4X3.1)

91316-PE7-730

$5.30

29

O-RING (62.4X3.1) This part replaces 91316-PT6-003.

91316-PE7-730

$5.30

30

O-RING (21.5X3.2)

91307-425-003

$2.55

31

PIN, DOWEL (10X16)

94301-10160

$2.24

32

BOLT, FLANGE (6X16)

95701-06016-08

$1.32

33

BOLT, FLANGE (8X16)

95701-08016-08

$1.59

34

BOLT, FLANGE (8X25)

95701-08025-08

$0.67

35

BOLT, FLANGE (8X28)

95701-08028-02

Unavailable

36

BOLT, FLANGE (8X45)

95701-08045-02

$1.77

37

BOLT, FLANGE (8X55)

95701-08055-02

$2.17
