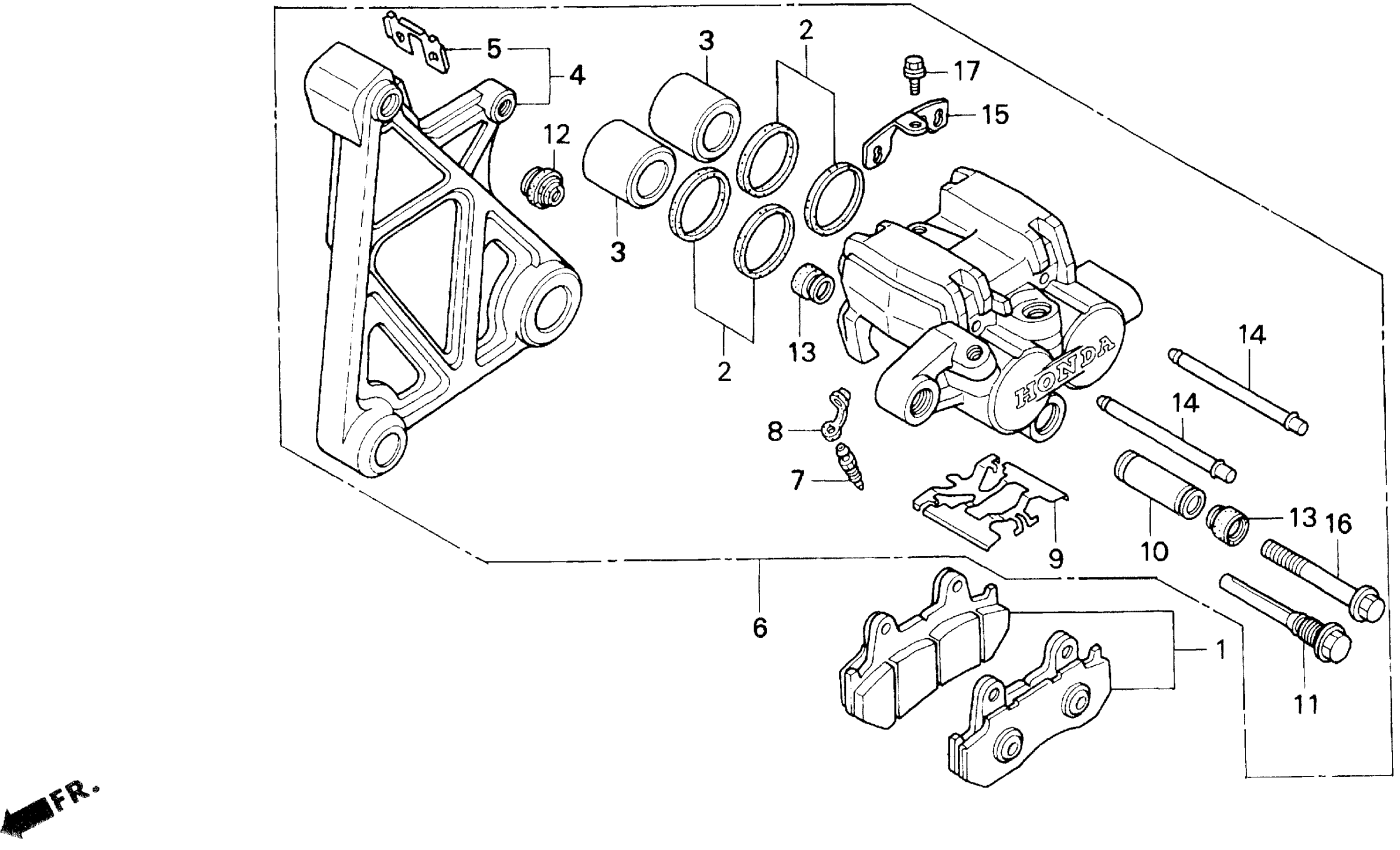

Honda GL1500AA (00) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-YA200001 REAR BRAKE CALIPER Diagram

Description

Price

PAD SET, RR.

06435-MT8-405

$58.97

SEAL SET, PISTON

06451-MA7-405

$10.63

PISTON

43107-MA7-006

$45.55

BRACKET, RR.

43110-MT8-006

Unavailable

RETAINER, RR. BRACKET

43112-445-631

Unavailable

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-MT8-305

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SPRING, PAD

45108-MA2-006

Unavailable

SLEEVE

45111-MA3-006

$13.38

BOLT, PIN

45131-MA3-006

$17.59

BOOT B

45133-MA3-006

$5.46

BOOT, PIN

45133-166-016

$3.85

PIN, HANGER

45215-MA2-006

Unavailable

PLATE

45217-MA3-006

$4.45

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
