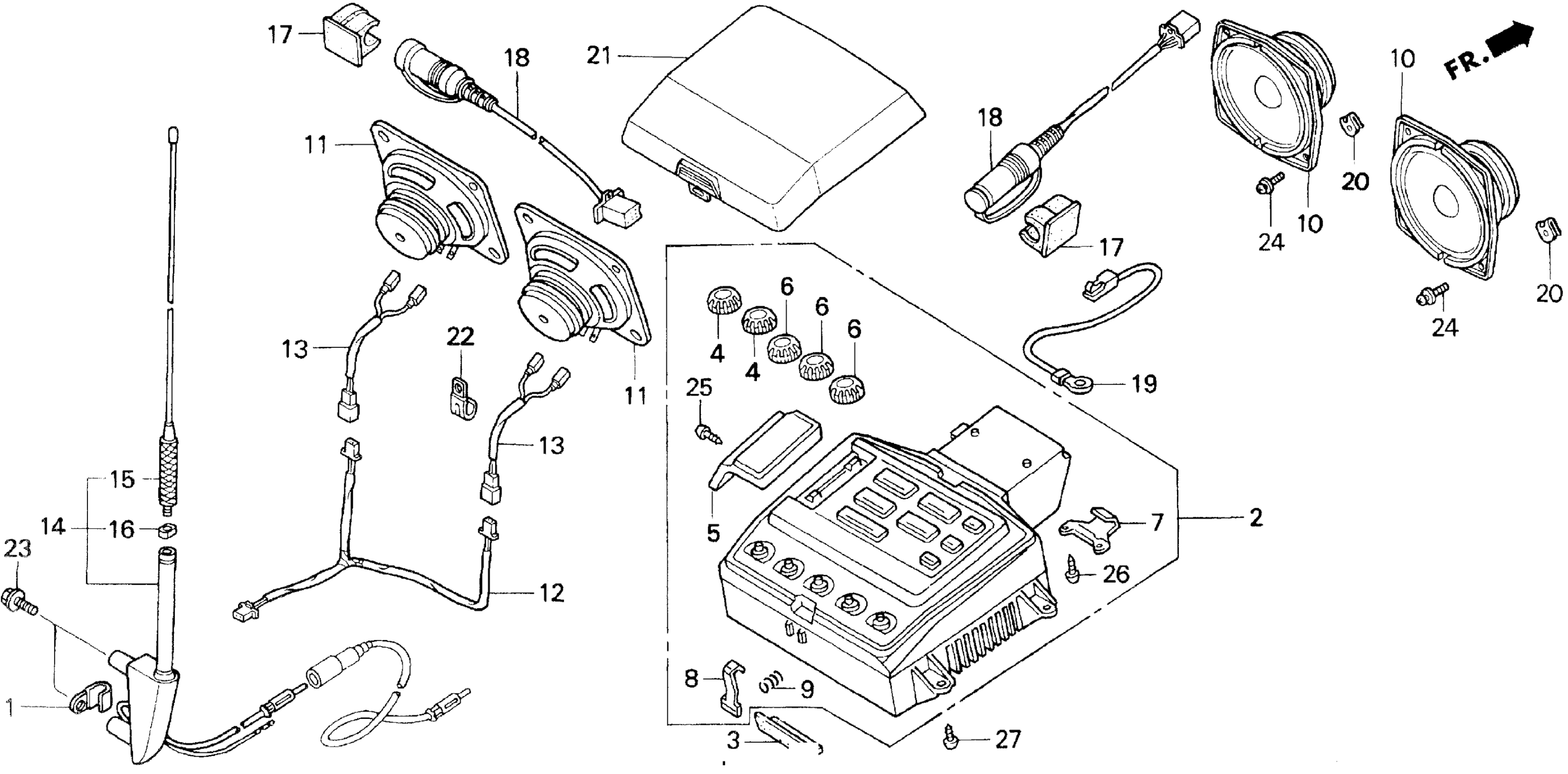

Honda GL1500AA (00) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-YA200001 RADIO CASSETTE Diagram

CLAMP, WIRE

32111-426-000

Unavailable

CLAMP, WIRE This part replaces 32111-460-780.

32111-426-000

Unavailable

CASSETTE ASSY., RADIO

39100-MT8-771

Unavailable

RUBBER, RADIO CASSETTE

39109-MN5-000

Unavailable

KNOB, RADIO (A)

39111-MN5-003

$11.87

LID, CASSETTE

39112-MT8-771

Unavailable

KNOB, RADIO (B)

39116-MN5-003

$11.54

PLATE, COVER STOPPER

39117-MN5-000

Unavailable

LEVER, COVER LOCK

39118-MN5-023

Unavailable

SPRING, LEVER

39119-MN5-003

Unavailable

SPEAKER UNIT, FR. This part replaces 39130-MT2-003.

39130-MCA-A61

$42.58

ANTENNA ASSY., RADIO

39150-MAM-003

Unavailable

ELEMENT, ANTENNA

39151-MAF-000

Unavailable

NUT, ANTENNA

39153-MN5-003

$4.12

HOLDER ASSY., CONNECTOR

39242-MN5-000

Unavailable

LEAD, HEADSET JUNCTION

39245-MT2-010

Unavailable

NUT, CLIP (4MM)

64521-MN5-000

$2.92

COVER, RADIO CASSETTE *NH1R* (BLACK)

83170-MAM-A60ZD

$91.30

BOLT-WASHER (6X16)

93401-06016-08

$1.49

SCREW-WASHER (4X12)

93891-04012-08

$1.49

SCREW, TAPPING (3X10)

93901-22220

$1.49

SCREW, TAPPING (3X12)

93901-22320

$1.49

SCREW, TAPPING (5X12)

93903-25220

$1.49
