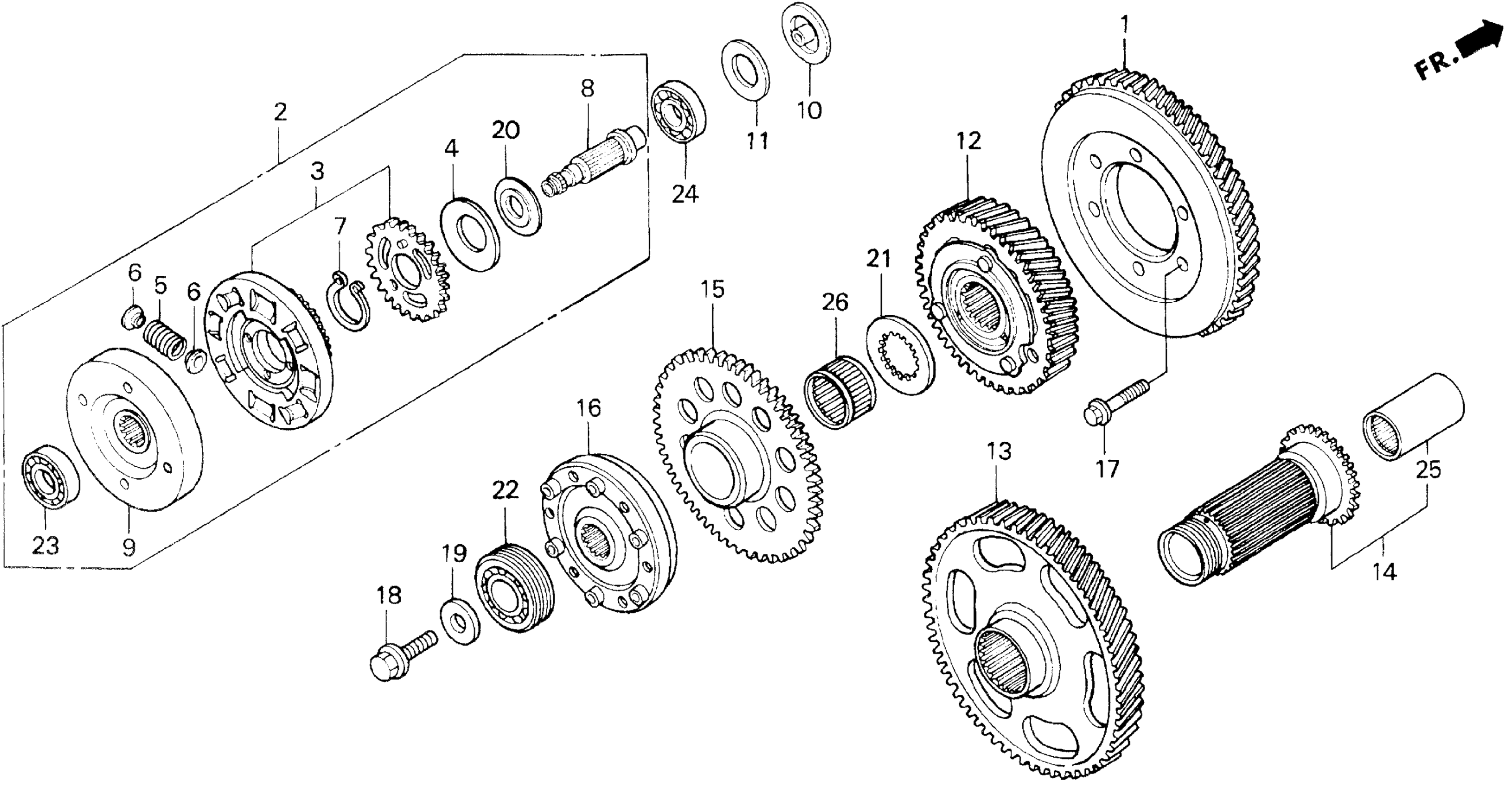

Honda GL1500AA (00) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-YA200001 PRIMARY DRIVE GEAR Diagram

#

Description
Price

1

GEAR, ALTERNATOR DRIVE (103T)

13321-MT8-000

Unavailable

2

GEAR ASSY., ALTERNATOR DRIVEN

13430-MAM-A60

Unavailable

3

GEAR SET, ALTERNATOR DRIVEN

13434-MT8-305

Unavailable

4

SPRING, ALTERNATOR FRICTION

13435-MZ0-300

$8.56

5

SPRING, ALTERNATOR DAMPER

13436-MN5-004

$2.90

6

SEAT, DAMPER SPRING

13438-MN5-310

$2.90

7

SPRING, ALTERNATOR DRIVEN GEAR

13439-MZ0-300

Unavailable

8

SHAFT, ALTERNATOR DRIVEN

13452-MN5-310

Unavailable

9

FLYWHEEL, ALTERNATOR (B)

13456-MN5-320

Unavailable

10

PLATE, ALTERNATOR SHAFT OIL PASSAGE

13459-MT8-000

$10.67

11

SPRING, THRUST

13538-MT8-000

Unavailable

12

GEAR, PRIMARY DRIVE (49T)

23110-MN5-010

$280.03

13

GEAR, PRIMARY DRIVEN (78T)

23121-MN5-000

Unavailable

14

BOSS, PRIMARY DRIVEN GEAR

23130-MN5-000

Unavailable

15

GEAR, STARTER DRIVEN (66T)

28110-MN5-000

$182.85

16

CLUTCH OUTER, STARTING

28125-MN5-014

$288.43

17

BOLT, UBS (8X20)

90004-MN5-000

$4.21

18

BOLT, FLANGE (12X30)

90005-MN5-000

$8.41

19

WASHER (12X33X4)

90402-MN5-000

Unavailable

20

WASHER (19.7X40X2.6)

90413-MN5-000

$13.98

21

WASHER, SPLINE (28MM)

90493-MN5-000

$21.93

22

BEARING, RADIAL BALL (6205)

91009-MN5-003

Unavailable

23

BEARING, RADIAL BALL (6003) (TOYO)

91015-MN5-003

Unavailable

24

BEARING, RADIAL BALL (6003U) (TOYO)

91016-MN5-003

Unavailable

25

BEARING, NEEDLE (28X35X60)

91024-MN5-003

$49.64

26

BEARING, NEEDLE (36X41X18.3)

91027-PC9-E01

Unavailable
