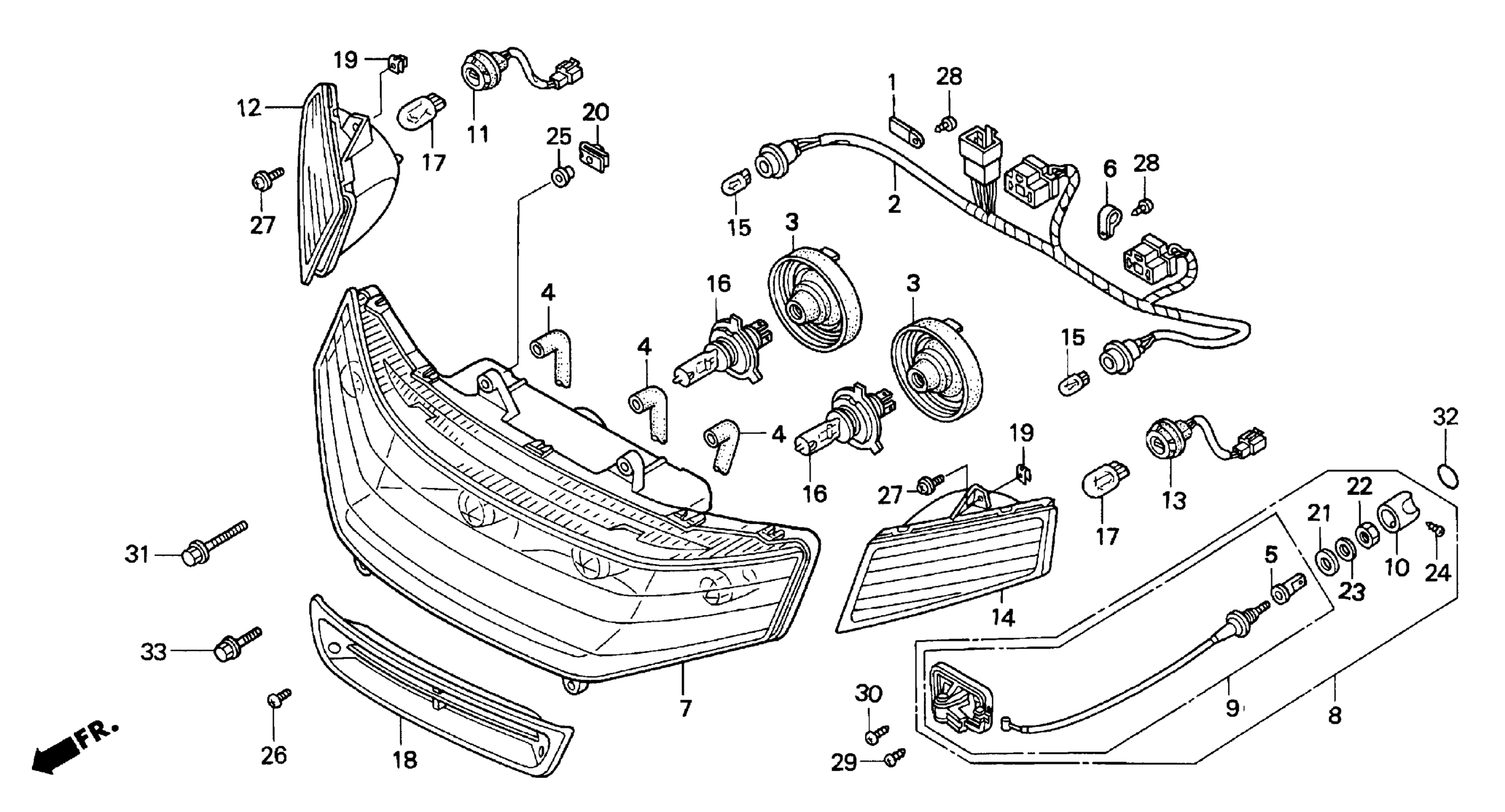

Honda GL1500AA (00) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-YA200001 HEADLIGHT Diagram

#

Description
Price

1

CLAMP, CONNECTOR

32910-MN5-003

Unavailable

2

SOCKET

33110-MAM-A82

Unavailable

3

COVER, RUBBER

33112-MAT-611

$12.19

4

PIPE

33113-MAM-A82

Unavailable

5

NUT, BEAM ADJ.

33117-MN5-003

$1.96

6

WIRE, CLAMP

33119-MAM-A82

Unavailable

7

HEADLIGHT UNIT

33120-MAM-A82

Unavailable

8

ADJUSTER ASSY., HEADLIGHT

33140-MT8-770

Unavailable

9

ADJUSTER, HEADLIGHT

33150-MN5-003

Unavailable

10

KNOB, BEAM ADJUSTING

33156-MT8-770

Unavailable

11

SOCKET, R. FR. TURN SIGNAL

33405-MAM-A82

$13.91

12

TURN SIGNAL, R. FR.

33410-MAM-A82

$138.46

13

SOCKET, L. FR. TURN SIGNAL

33455-MAM-A82

$13.91

14

TURN SIGNAL, L. FR.

33460-MAM-A82

$71.58

15

BULB (12V 5W) (KRYPTON) This part replaces 34306-MN5-701.

34306-SH3-003

$6.98

15

BULB (12V 5W) (KRYPTON)

34306-SH3-003

$6.98

16

BULB, HEADLIGHT (12V45/45W) (STANLEY) This part replaces 34901-MS2-671.

34901-MS2-672

$33.64

16

BULB, HEADLIGHT (12V 45/45W) (STANLEY)

34901-MS2-672

$33.64

17

BULB, TAILLIGHT (12V23/8W)

34906-MN8-911

$5.23

18

GRILLE, FR.

64270-MAM-000

$17.01

19

NUT, CLIP (4MM)

64521-MN5-000

$2.80

20

NUT, CLIP (6MM)

64529-MN5-000

$4.86

21

WASHER, SPECIAL

90150-MN5-003

Unavailable

22

NUT, SPECIAL (16MM)

90153-MN5-003

$4.29

23

WASHER, SPECIAL

90154-MN5-003

Unavailable

24

SCREW, TAPPING (4MM)

90417-MN5-003

$3.26

25

WASHER (6MM)

90512-440-980

$2.80

26

SCREW, PAN (4X8)

93500-04008-0G

$0.83

27

SCREW-WASHER (4X12)

93891-04012-07

$1.04

28

SCREW, TAPPING (4X12)

93901-34320

$0.81

29

SCREW, TAPPING (4X12)

93903-24380

Unavailable

30

SCREW, TAPPING (6X12)

93903-26180

$1.07

31

BOLT, FLANGE (6X55)

95801-06055-08

$1.57

32

MARK, BEAM ADJUSTING KNOB

33157-MT8-770

Unavailable

33

BOLT, SPECIAL (6X28)

90112-MN5-000

$5.46
