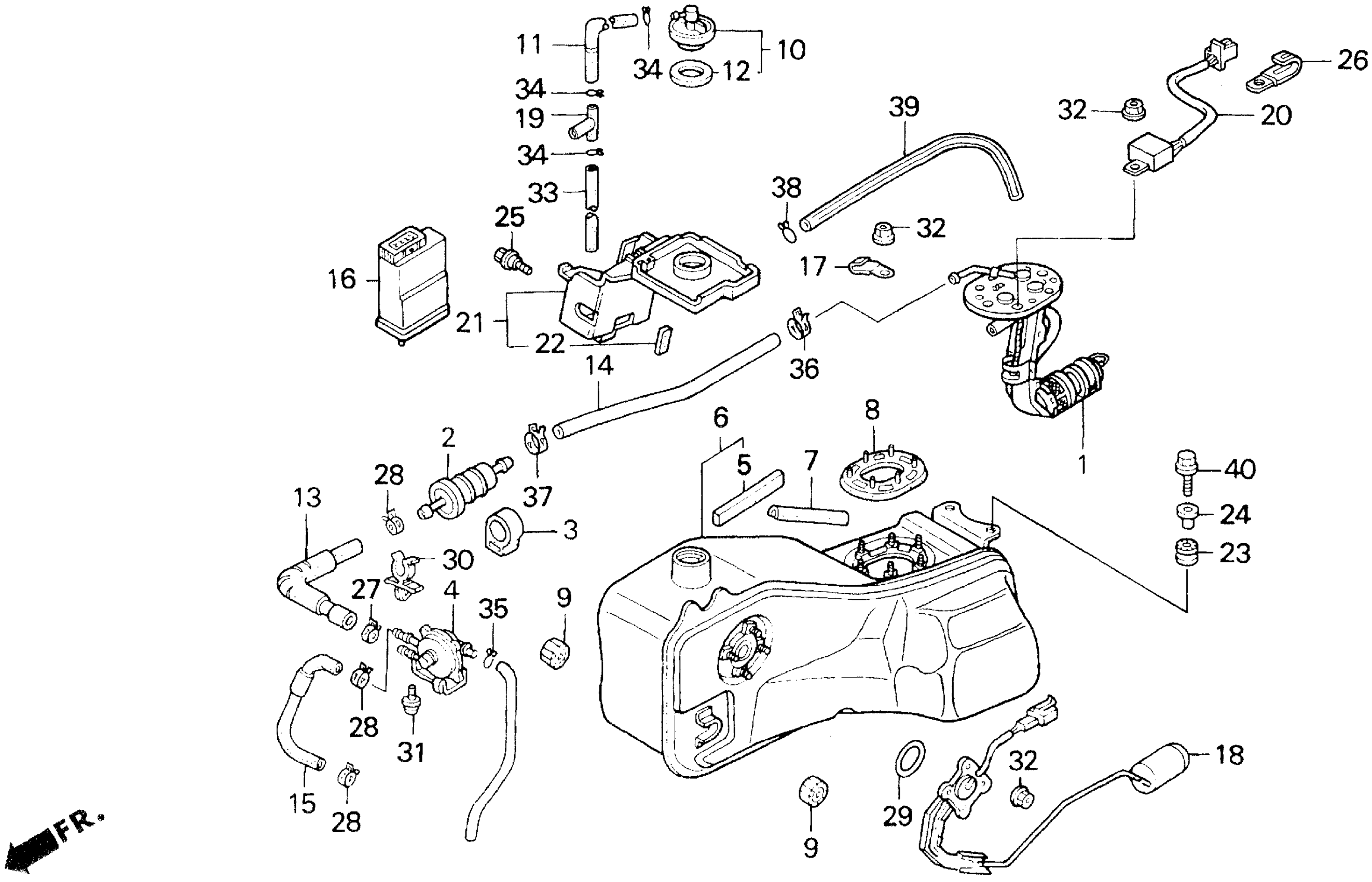

Honda GL1500AA (00) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-YA200001 FUEL TANK Diagram

PUMP ASSY., FUEL

16700-MAF-000

$504.18

FILTER, FUEL

16900-MG8-003

$23.49

CUSHION, FUEL STRAINER

16905-MG7-000

$7.95

PETCOCK ASSY., AUTOMATIC FUEL This part replaces 16970-MN5-003.

16970-MN5-023

$229.36

PETCOCK ASSY., AUTOMATIC FUEL This part replaces 16970-MN5-013.

16970-MN5-023

$229.36

PETCOCK ASSY., AUTOMATIC FUEL

16970-MN5-023

$229.36

CUSHION, BATTERY TRAY (A)

17509-MN5-000

$4.48

TANK, FUEL

17510-MZ3-000

$1,031.69

TRIM, FUEL TANK

17516-MK7-000

$9.94

GASKET, BASE

17574-MN5-000

$10.10

CUSHION, FR. FUEL TANK

17611-MG2-000

$11.43

CUSHION, FR. FUEL TANK This part replaces 17611-429-000.

17611-MG2-000

$11.43

CAP, FUEL FILLER

17670-MW5-741

Unavailable

HOSE, FUEL (4.5X730)

17681-MY4-000

$37.95

GASKET, FUEL FILLER CAP

17682-679-013

$8.95

TUBE, L. FUEL

17704-MN5-010

$17.46

TUBE A, FUEL

17707-MN5-000

Unavailable

TUBE B, FUEL

17708-MT2-000

Unavailable

CONTROL UNIT, ENGINE This part replaces 30410-MZ3-013.

30410-MZ3-772

Unavailable

CONTROL UNIT, ENGINE

30410-MZ3-772

Unavailable

CLAMP, WIRE

32111-426-000

Unavailable

CLAMP, WIRE This part replaces 32111-460-780.

32111-426-000

Unavailable

FUEL UNIT

37800-MT8-008

Unavailable

JOINT, THREE WAY

36010-PA6-004

Unavailable

JOINT (THREE-WAY) This part replaces 38773-PB9-000.

36010-PA6-004

Unavailable

TRAY, FUEL FILLER

83502-MT8-000

Unavailable

CUSHION, SPARK UNIT

84102-ML7-000

$2.90

RUBBER, FUEL TANK MOUNTING

84703-MN5-000

$5.28

COLLAR A

90001-438-850

$4.76

BOLT, SPECIAL (6MM)

90106-MY4-930

Unavailable

CLIP, FUEL HOSE

90678-MN5-000

$2.59

CLAMP, CANISTER HOSE

90682-SA0-671

$7.67

O-RING (39.5X5)

91305-MC7-000

$3.31

CLIP, TUBE

90602-ZG5-003

$2.78

CLIP, TUBE This part replaces 91405-750-800.

90602-ZG5-003

$2.78

SCREW-WASHER (5X10)

93893-05010-08

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

BULK HOSE, FUEL (4.5X3000) (4.5X100)

95001-45003-50M

$61.19

CLIP, TUBE (B8)

95002-02080

$1.80

CLIP, TUBE (B6.5)

95002-02650

$1.49

CLAMP, TUBE (D12)

95002-41200-08

$2.34

CLAMP, TUBE (D13)

95002-41300-08

$2.92

CLIP, TUBE (C12)

95002-80000

$1.49

BULK HOSE, VINYL (8X12X8000) (8X12X760)

95003-23008-60M

Unavailable

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

COVER SET, PETCOCK This part replaces 16953-ML0-014.

16953-ML0-034

$51.36

COVER SET, PETCOCK This part replaces 16953-ML0-024.

16953-ML0-034

$51.36

SCREW-WASHER (4X16)

93892-04016-00

$1.49

SCREW-WASHER (4X16) This part replaces 93892-04016-10.

93892-04016-00

$1.49

SCREW-WASHER (4X18)

93892-04018-00

$1.63

SCREW-WASHER (4X18) This part replaces 93892-04018-10.

93892-04018-00

$1.63
