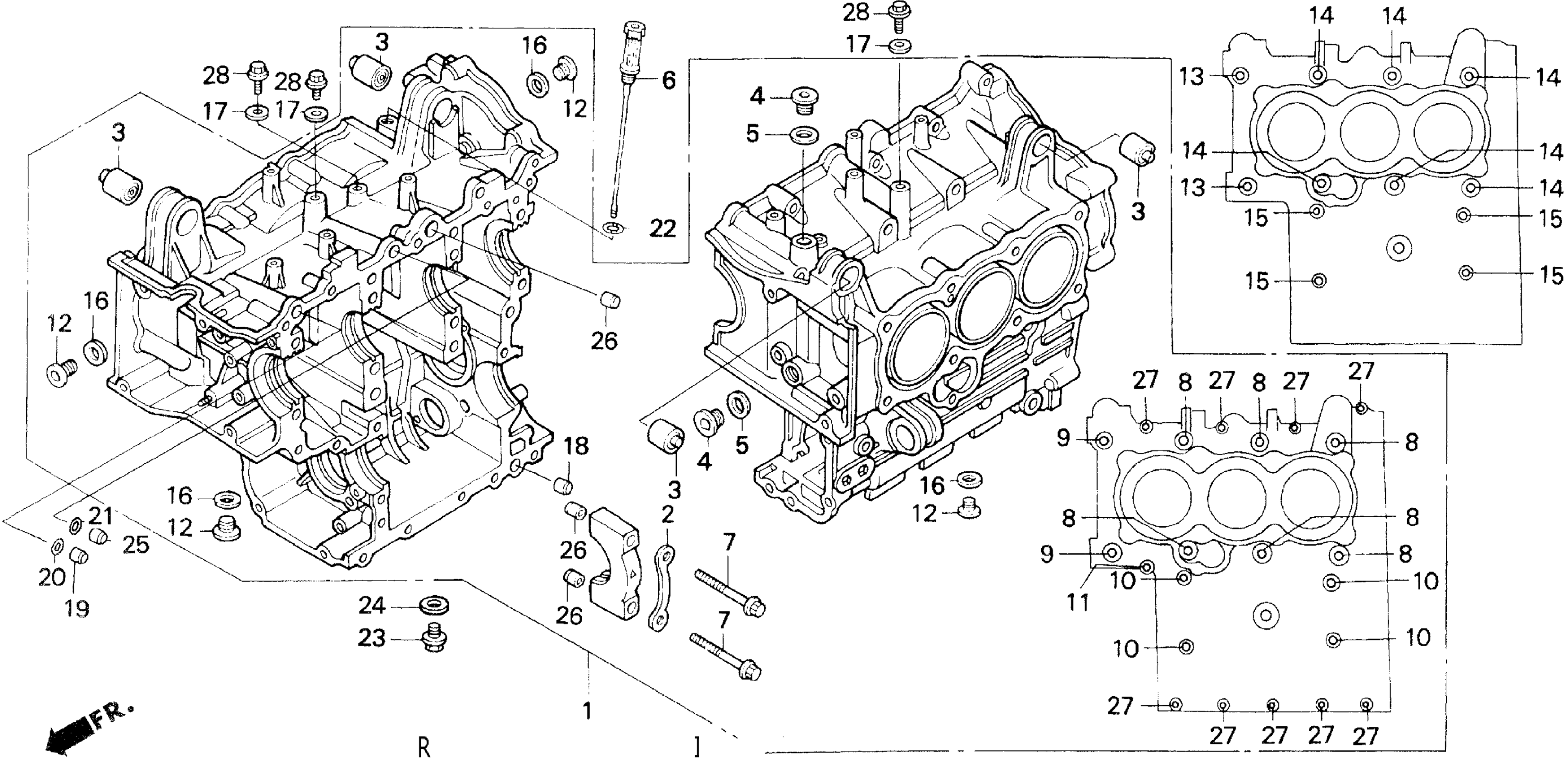

Honda GL1500AA (00) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-YA200001 CYLINDER BLOCK Diagram

#

Description
Price

1

BLOCK ASSY., CYLINDER (SC22E)

04911-MZ3-711

Unavailable

2

PLATE, BEARING CAP

11125-MN5-010

$13.88

3

BUSH, ENGINE HANGER (A)

11131-MN5-000

Unavailable

4

BOLT, SEALING (18MM)

12206-ML8-300

$8.70

5

WASHER, SEALING BOLT

12207-611-300

Unavailable

6

DIPSTICK, OIL

15650-MZ0-A00

Unavailable

7

BOLT, FLANGE (10X87)

90003-MN5-013

$8.62

8

BOLT, FLANGE (10X120) (SATO)

90009-371-015

$9.61

9

BOLT, FLANGE (10X13)

90011-MN5-004

$13.77

10

BOLT, FLANGE (8X123)

90012-MN5-000

$8.30

11

BOLT, FLANGE (6X35)

90019-MN5-000

Unavailable

12

BOLT, SEALING (20MM)

90048-MN5-000

$12.52

13

WASHER (10MM) This part replaces 90403-ML4-610.

90403-ML4-611

Unavailable

14

WASHER, SPECIAL (11X21X2.3)

90438-463-000

$2.42

15

WASHER, SEALING (8MM)

90441-MG8-000

$2.07

16

WASHER, SEALING (20MM)

90441-MN5-000

$4.62

17

WASHER, SEALING (8MM)

90495-MN5-000

$3.32

18

COLLAR (15X20)

90702-371-000

$5.35

19

PIN, DOWEL (14X12)

90706-MN5-000

Unavailable

20

O-RING (13.8X2.5)

91303-377-000

$3.18

21

O-RING (7.8X1.9) (ARAI)

91301-MJ0-003

$2.07

21

O-RING (7.8X1.9) (NOK)

91313-MN5-004

$1.99

22

O-RING (8.4X2.4)

91316-MJ8-003

$2.38

23

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.32

24

WASHER, DRAIN PLUG (14MM)

94109-14000

$0.57

25

PIN, DOWEL (8X14)

94301-08140

$2.04

26

PIN, DOWEL (12X20)

94301-12200

$2.25

27

BOLT, FLANGE (6X35)

95701-06035-08

$1.58

28

BOLT, FLANGE (8X16)

95701-08016-08

$1.59
