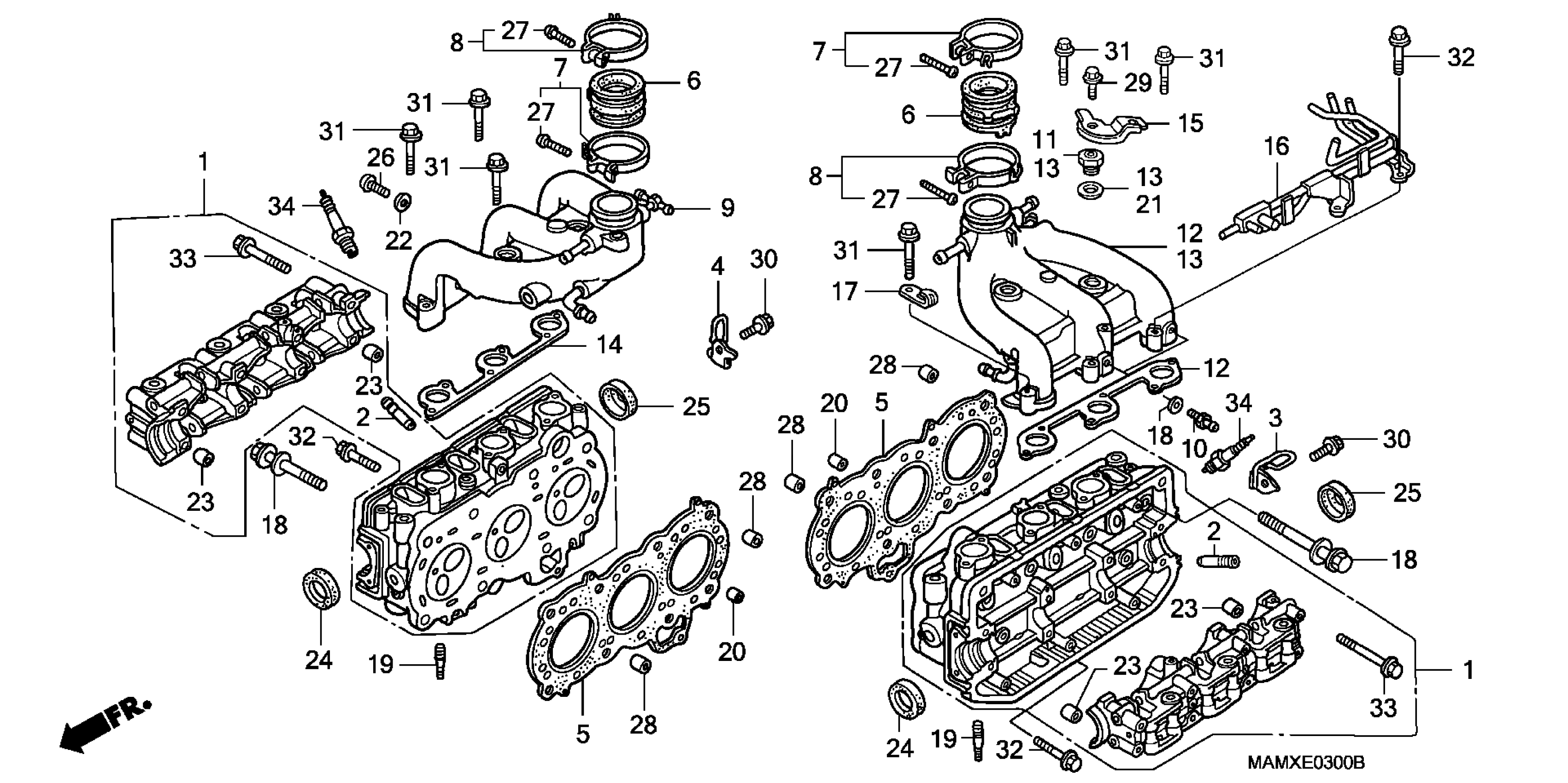

Honda GL1500AA (00) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-YA200001 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD

12200-MAM-A80

Unavailable

2

GUIDE, VALVE (OVER SIZE)

12204-MN5-305

Unavailable

3

CLAMP, TUBE (G)

12214-MN5-000

Unavailable

4

CLAMP, TUBE (D)

12215-MT2-000

Unavailable

5

GASKET, CYLINDER HEAD

12251-MN5-004

$30.91

5

GASKET, CYLINDER HEAD (0.75/1.00) | (Optional).

12251-MN5-305

Unavailable

6

INSULATOR, CARBURETOR

16211-MN5-000

$16.44

7

BAND A, INSULATOR

16218-MN5-000

$12.48

8

BAND B, INSULATOR

16219-MN5-000

$12.48

9

MANIFOLD, R. IN.

17110-MY4-000

Unavailable

10

JOINT, PRESSURE BOOST (D)

17113-MT8-000

Unavailable

12

MANIFOLD, L. IN.

17120-MY4-000

Unavailable

14

GASKET, IN. MANIFOLD

17231-MN5-004

$19.87

16

PIPE A, INSTALL

17380-MT8-000

Unavailable

17

CLIP, WIRE HARNESS

32170-443-850

$5.05

18

BOLT, FLANGE (9X91)

90010-MT8-003

$12.28

19

BOLT, STUD (8-6X40)

90035-MN5-000

$4.53

20

ORIFICE (2.0)

90084-MN5-000

Unavailable

22

WASHER, SEALING (5MM)

90452-323-000

$1.59

23

PIN, DOWEL (10X13.5)

90701-GB4-680

Unavailable

24

OIL SEAL (27X43X9)

91209-371-003

$17.60

25

SEAL, CAP (43X9)

91209-463-013

$11.58

26

SCREW, PAN (5X8)

93500-05008-0A

$1.49

27

SCREW, PAN (5X25)

93500-05025-0G

$1.49

28

PIN, DOWEL (12X20)

94301-12200

$2.29

30

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

31

BOLT, FLANGE (6X35)

95701-06035-08

$1.79

32

BOLT, FLANGE (6X40)

95701-06040-08

$1.80

33

BOLT, FLANGE (8X80)

95701-08080-00

$1.64

34

SPARK PLUG (DPR6EA-9) (NGK) | (Optional).

98069-56916

$2.62

34

SPARK PLUG (X20EPR-U9) (DENSO) | (Optional).

98069-56926

$2.54

34

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

34

SPARK PLUG (DPR8EA-9) (NGK) | (Optional).

98069-58916

$2.62

34

SPARK PLUG (X24EPR-U9) (DENSO) | (Optional).

98069-58926

$2.54
