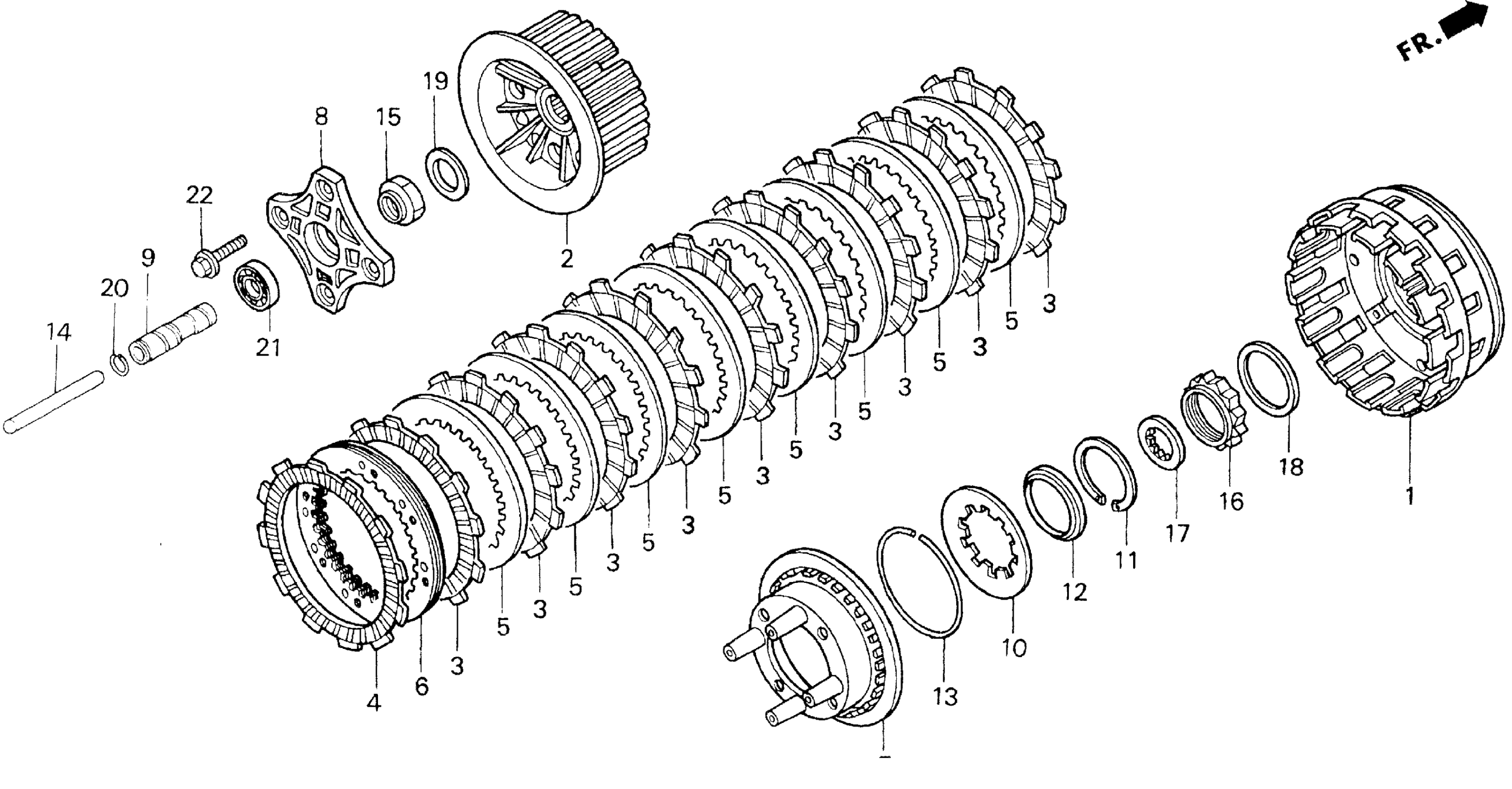

Honda GL1500AA (00) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-YA200001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER)

22100-MT8-010

$509.77

2

CENTER, CLUTCH

22120-MZ0-000

Unavailable

3

DISK A, CLUTCH FRICTION

22201-MZ0-000

$21.54

4

DISK B, CLUTCH FRICTION

22202-MZ0-000

$21.54

5

PLATE A, CLUTCH

22321-MN5-000

$13.97

6

PLATE B, CLUTCH

22322-MZ0-000

$92.49

7

PLATE, CLUTCH PRESSURE (30T)

22350-MN5-000

Unavailable

8

PLATE, CLUTCH LIFTER

22361-MN5-000

Unavailable

9

PIECE, CLUTCH END

22366-MN5-000

Unavailable

10

SPRING, CLUTCH

22402-MN5-000

$19.34

11

RING, CLUTCH SPRING SETTING

22422-MN5-000

Unavailable

12

SEAT, CLUTCH SPRING (A)

22423-MN5-000

Unavailable

13

SEAT, CLUTCH SPRING (B)

22425-MN5-000

Unavailable

14

ROD, CLUTCH LIFTER

22851-MN5-010

Unavailable

15

NUT, HEX. (22MM)

90206-MZ0-000

$10.76

16

NUT, LOCK (40MM)

90245-MN5-000

$34.46

17

WASHER, SPLINE (25MM)

90403-MN5-000

$9.33

18

WASHER, SPRING (40MM)

90491-MN5-000

$21.93

19

WASHER (22.2X35X2.6)

90498-MN5-000

$8.49

20

CLIP (10.6)

90602-KE1-000

Unavailable

21

BEARING, RADIAL BALL (6201) (TOYO)

91008-MN5-003

$24.48

22

BOLT, FLANGE (6X18)

95701-06018-08

$1.62
