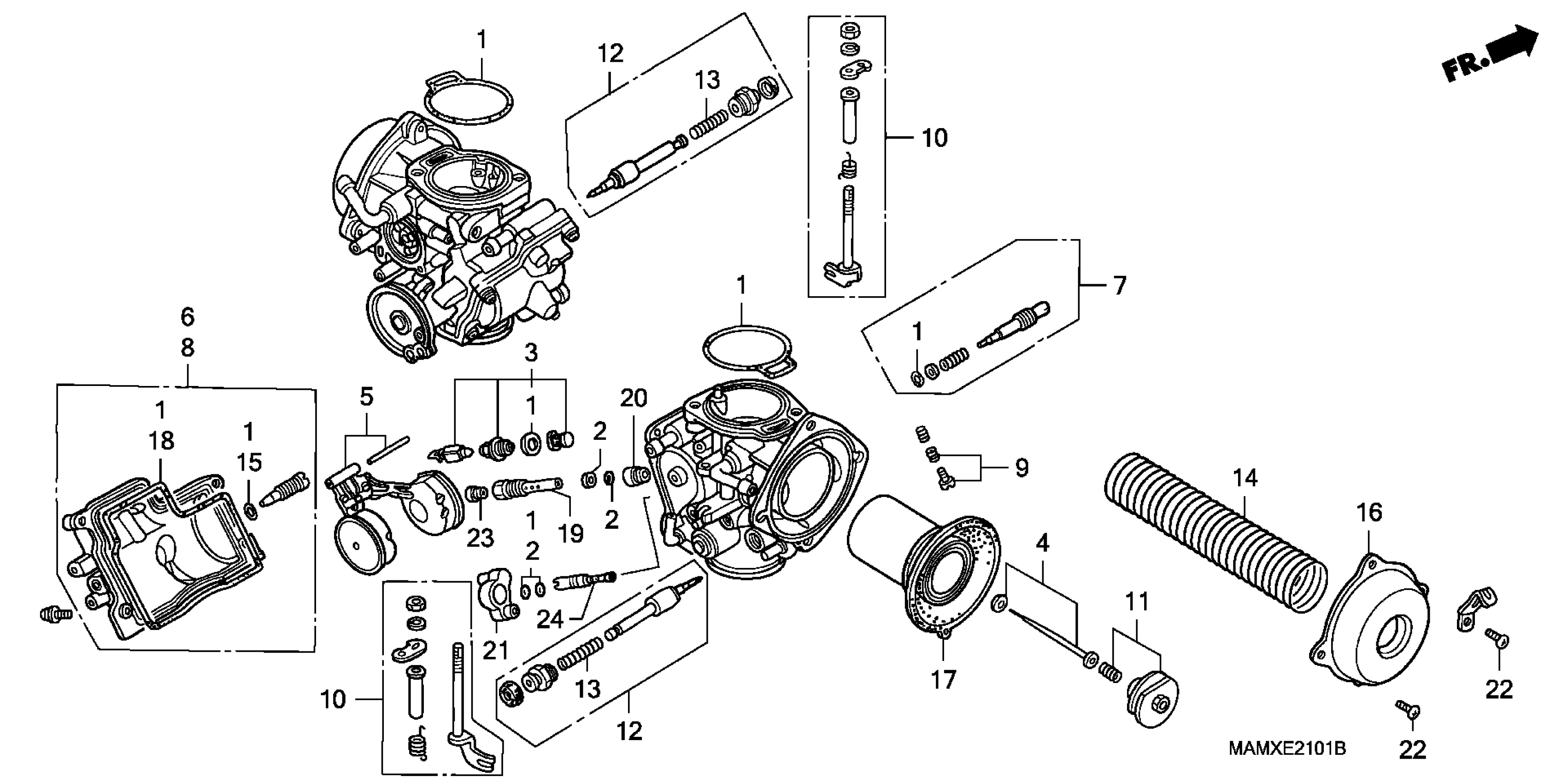

Honda GL1500AA (00) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-YA200001 CARBURETOR COMPONENTS Diagram

#

Description
Price

1

GASKET SET

16010-MAM-A60

$26.71

2

GASKET SET

16011-MAM-A60

$6.72

3

VALVE SET, FLOAT

16011-MAM-000

$61.68

4

NEEDLE SET, JET

16012-MY4-601

Unavailable

5

FLOAT SET

16013-MAM-000

$43.56

6

CHAMBER SET, FLOAT

16015-MAM-A60

Unavailable

7

SCREW SET This part replaces 16016-MAM-000.

16016-MZ8-A70

$21.20

8

CHAMBER SET, FLOAT

16023-MAM-A60

Unavailable

9

SCREW SET C

16029-MB0-671

$22.55

10

LEVER SET, STARTER

16031-MN5-014

Unavailable

11

PLATE SET

16037-MN5-004

Unavailable

12

VALVE SET, STARTER

16046-MAM-000

Unavailable

13

SPRING, COMPRESSION COIL

16050-MT2-004

Unavailable

14

SPRING, COMPRESSION COIL

16051-MT8-000

Unavailable

15

O-RING (1.3X4.3)

16075-GHB-640

$2.65

16

TOP

16107-MM8-004

Unavailable

17

PISTON, VACUUM

16111-MY4-000

$149.62

18

GASKET, FLOAT CHAMBER

16163-MAH-750

$31.54

19

HOLDER, NEEDLE JET

16165-MY4-000

Unavailable

20

HOLDER, JET

16168-MT8-000

$8.13

21

HOLDER, JET

16168-MY4-000

Unavailable

22

SCREW, PAN (4X10)

93500-04010-0A

$0.83

22

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$0.83

23

JET, MAIN (#148) This part replaces 99101-GHB-1480.

99102-MCG-1480

Unavailable

24

JET, SLOW (#65)

99103-MT8-0650

$20.01
