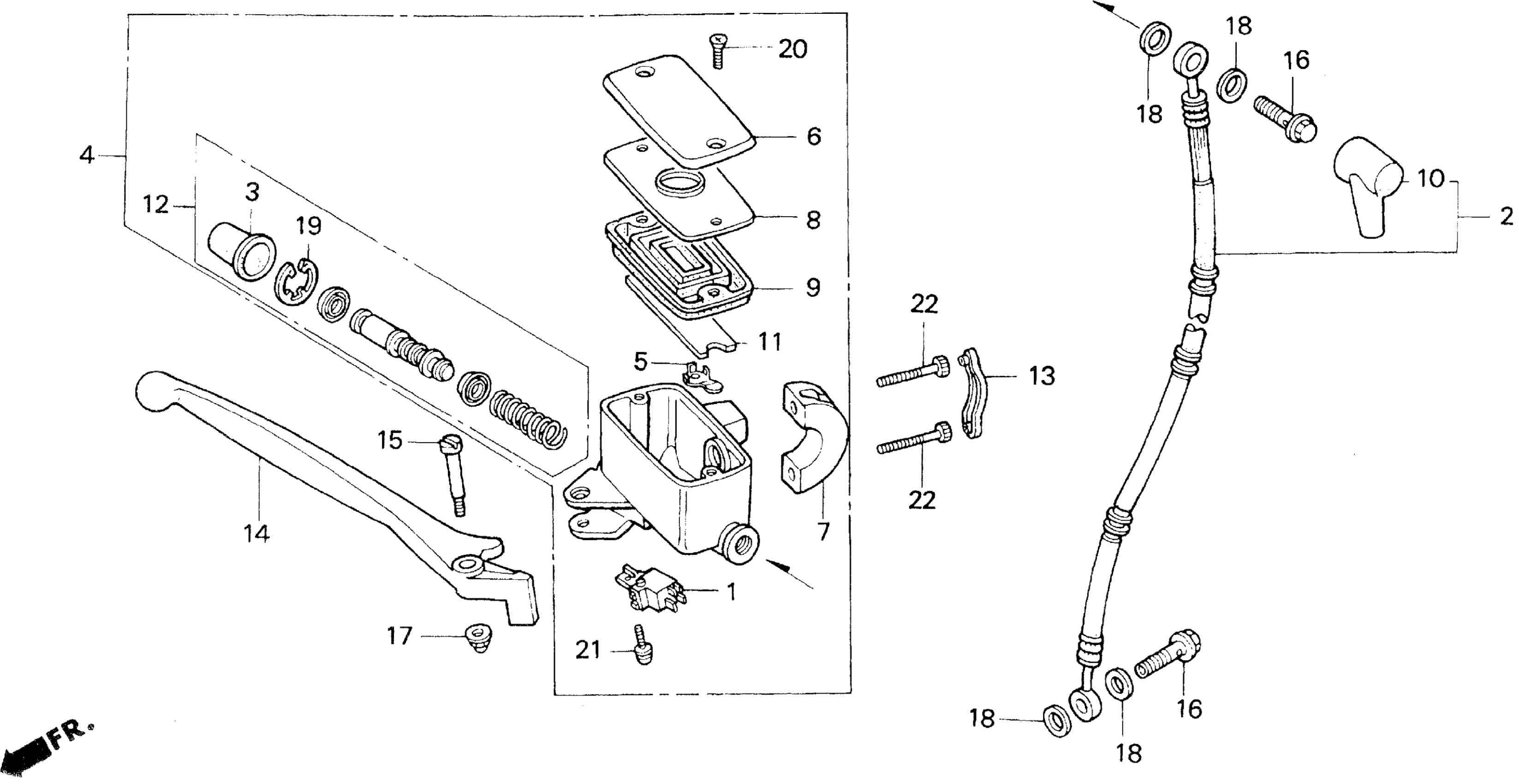

Honda GL1500AA (00) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-YA200001 BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP & CRUISE This part replaces 35340-MCA-000.

35340-MCA-S41

$15.66

1

SWITCH ASSY., FR. STOP & CRUISE This part replaces 35340-MG9-305.

35340-MCA-S41

$15.66

1

SWITCH ASSY., FR. STOP & CRUISE This part replaces 35340-MG9-951.

35340-MCA-S41

$15.66

2

HOSE, R. FR. BRAKE

45125-MAM-L41

Unavailable

3

BOOT

45504-410-003

$12.16

4

MASTER CYLINDER SUB-ASSY., FR.

45510-MAM-A61

Unavailable

5

PROTECTOR

45512-MA6-006

$4.28

6

CAP, MASTER CYLINDER

45513-MAM-A61

$33.75

7

HOLDER, MASTER CYLINDER This part replaces 45517-MAM-A61.

45517-MAM-A62

$14.27

7

HOLDER, MASTER CYLINDER

45517-MAM-A62

$14.27

8

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

9

DIAPHRAGM

45520-MM5-006

$15.12

10

BOOT, MASTER CYLINDER

45522-422-000

$8.68

11

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-MN5-006

$4.49

12

MASTER CYLINDER SET

45530-MG9-951

$62.90

13

CAP, BRAKE MASTER CYLINDER HOLDER

45553-MAM-A60

$3.12

14

LEVER, R. HANDLEBAR

53175-MT8-016

Unavailable

15

BOLT, HANDLE LEVER

90114-MG9-951

$7.88

16

BOLT, OIL (10X22)

90145-MS9-612

$7.54

17

NUT, CAP (6MM)

90202-ZV0-000

$2.91

18

WASHER, OIL BOLT

90545-300-000

$3.99

19

CIRCLIP

90651-MA5-671

$2.66

20

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

20

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

21

SCREW-WASHER (4X12)

93893-04012-07

$1.49

21

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

22

BOLT, SOCKET (6X20)

96600-06020-17

$1.49
