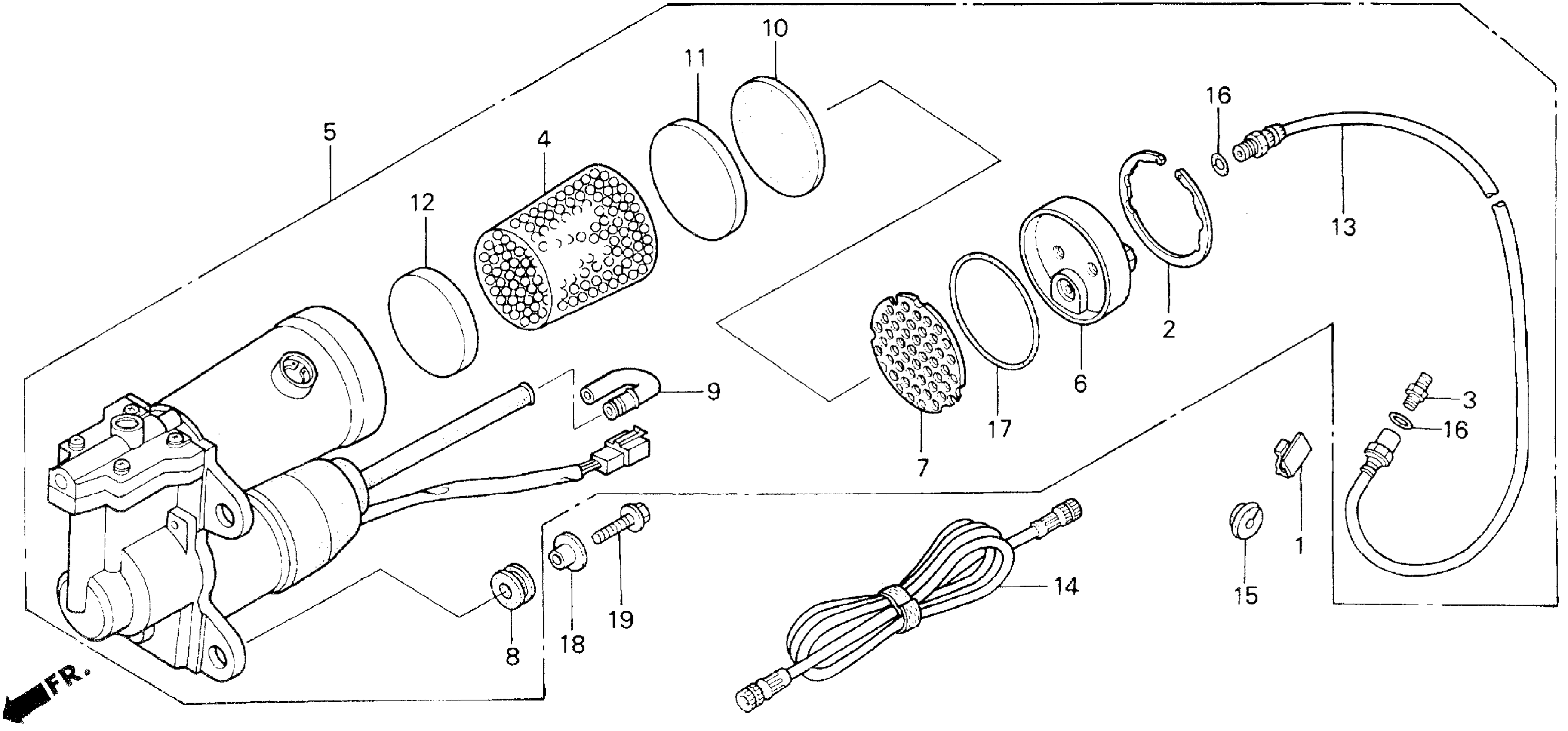

Honda GL1500AA (00) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-YA200001 AIR PUMP Diagram

CLAMP, CABLE (A)

32911-MG9-950

$1.90

CIRCLIP (INNER) (50MM)

51447-461-003

$4.53

VALVE, AIR (SHOWA)

51456-469-013

$33.69

DESICCANT

527A2-MN5-003

Unavailable

PUMP ASSY., AIR

52700-MN5-003

Unavailable

COVER, DRIER

52712-MN5-003

Unavailable

RETAINER

52713-MN5-003

Unavailable

GROMMET

52714-MN5-003

$3.44

END, PIECE

52715-MN5-003

Unavailable

FILTER (B)

52716-MN5-003

$3.69

FILTER (C)

52717-MN5-003

$3.67

FILTER (D)

52718-MN5-003

$3.67

HOSE ASSY., AIR (B) (SHOWA)

52740-MN5-003

Unavailable

HOSE, AIR SUPPLY | (Optional).

52817-MG9-871

Unavailable

GROMMET, SADDLE HOLE

81213-MN5-000

Unavailable

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

O-RING (5.8X1.9)

91305-323-000

$2.92

O-RING (49.5X2) (NOK) This part replaces 91351-MN5-003.

91362-SA5-952

Unavailable

O-RING (49.5X2) (NOK)

91362-SA5-952

Unavailable

COLLAR, DISTANCE

91551-723-650

Unavailable

BOLT, FLANGE (6X18)

95701-06018-08

$1.62
