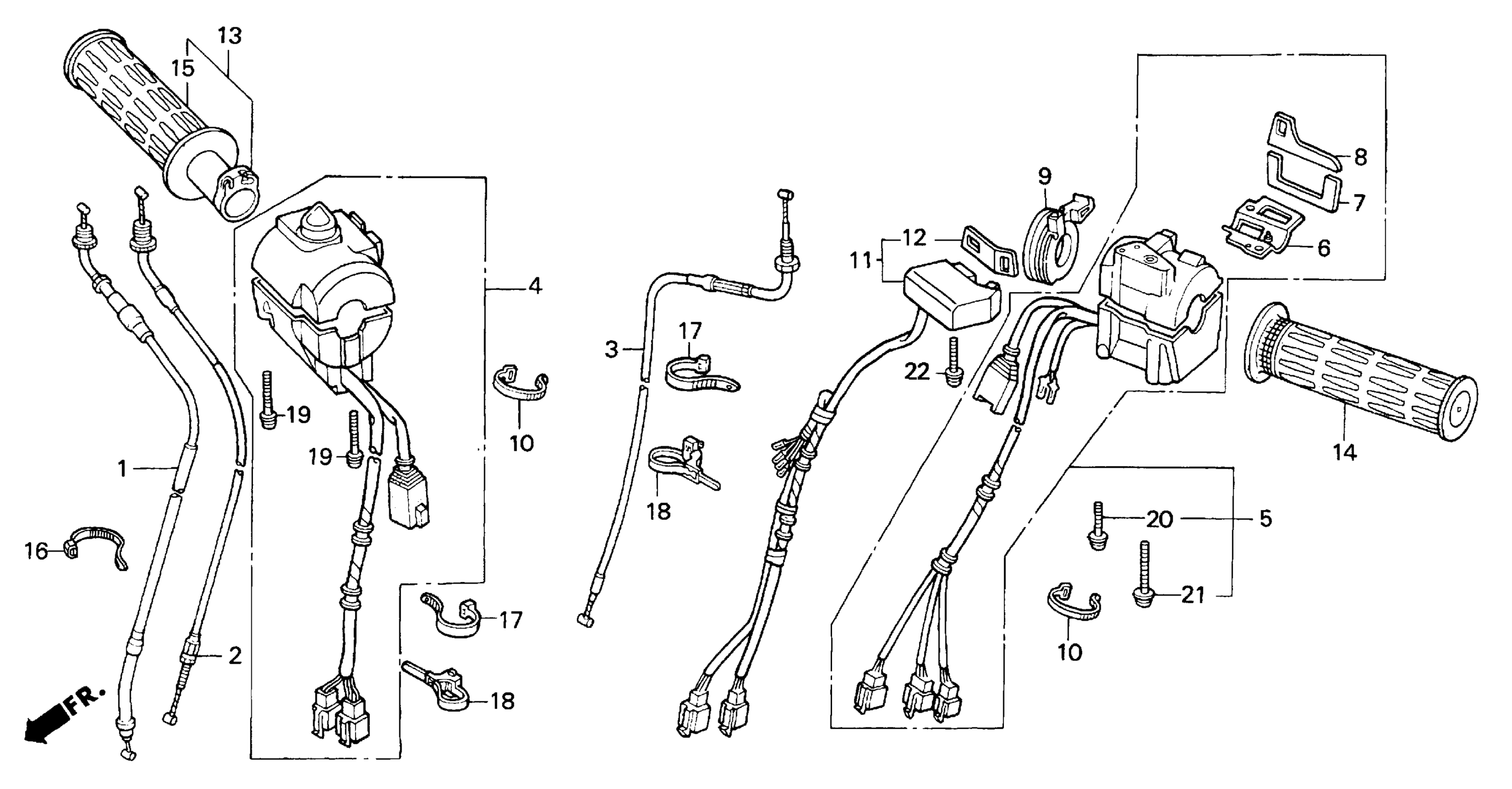

Honda GL1500AA (00) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-YA200001 A HANDLE SWITCH + CABLES Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MT8-004

$43.95

2

CABLE, HANDLE THROTTLE

17920-MT8-004

$47.74

3

CABLE, CHOKE

17950-MN5-004

$41.83

4

SWITCH SET, STARTER STOP

35013-MAM-A60

Unavailable

4

SWITCH SET, STARTER STOP This part replaces 35013-MAM-A90.

35013-MAM-A60

Unavailable

5

SWITCH SET, TURN SIGNAL

35020-MAM-A60

Unavailable

6

PLATE, TURN SIGNAL SETTING

35202-MN5-010

Unavailable

7

PLATE B, ORNAMENT

35204-MN5-000

Unavailable

8

PLATE A, ORNAMENT

35205-MAM-A61

Unavailable

9

LEVER, CHOKE

35209-MAM-A61

Unavailable

9

LEVER, CHOKE This part replaces 35209-MAM-A90.

35209-MAM-A61

Unavailable

10

BAND (BLACK 3.5X140)

35701-MG9-950

$1.81

11

SWITCH ASSY., AUDIO

39210-MAM-A61

$31.17

12

PLATE, ORNAMENT

39212-MAM-A01

Unavailable

13

GRIP, R.

53145-MG9-680

Unavailable

14

GRIP, R. HANDLEBAR This part replaces 53165-MG9-680.

53168-MG9-315

$12.34

14

GRIP, R. HANDLEBAR This part replaces 53168-MG9-305.

53168-MG9-315

$12.34

14

GRIP, R. HANDLEBAR

53168-MG9-315

$12.34

15

GRIP, L. HANDLEBAR This part replaces 53166-MG9-680.

53167-MG9-315

$9.08

15

GRIP, L. HANDLEBAR This part replaces 53167-MG9-305.

53167-MG9-315

$9.08

15

GRIP, L. HANDLEBAR

53167-MG9-315

$9.08

16

BAND, WIRE HARNESS

90650-MA6-720

$3.86

17

BAND, WIRE HARNESS

90651-MA6-720

$3.47

18

CLIP, HARNESS BAND (25MM)

90690-GHB-611

$1.99

18

CLIP, CABLE (20MM)

90690-GHB-661

$1.99

19

SCREW-WASHER (5X25)

93892-05025-07

$0.99

20

SCREW-WASHER (5X28)

93892-05028-07

$0.80

21

SCREW-WASHER (5X45)

93892-05045-07

$1.17

22

SCREW-WASHER (5X32)

93893-05032-08

Unavailable
