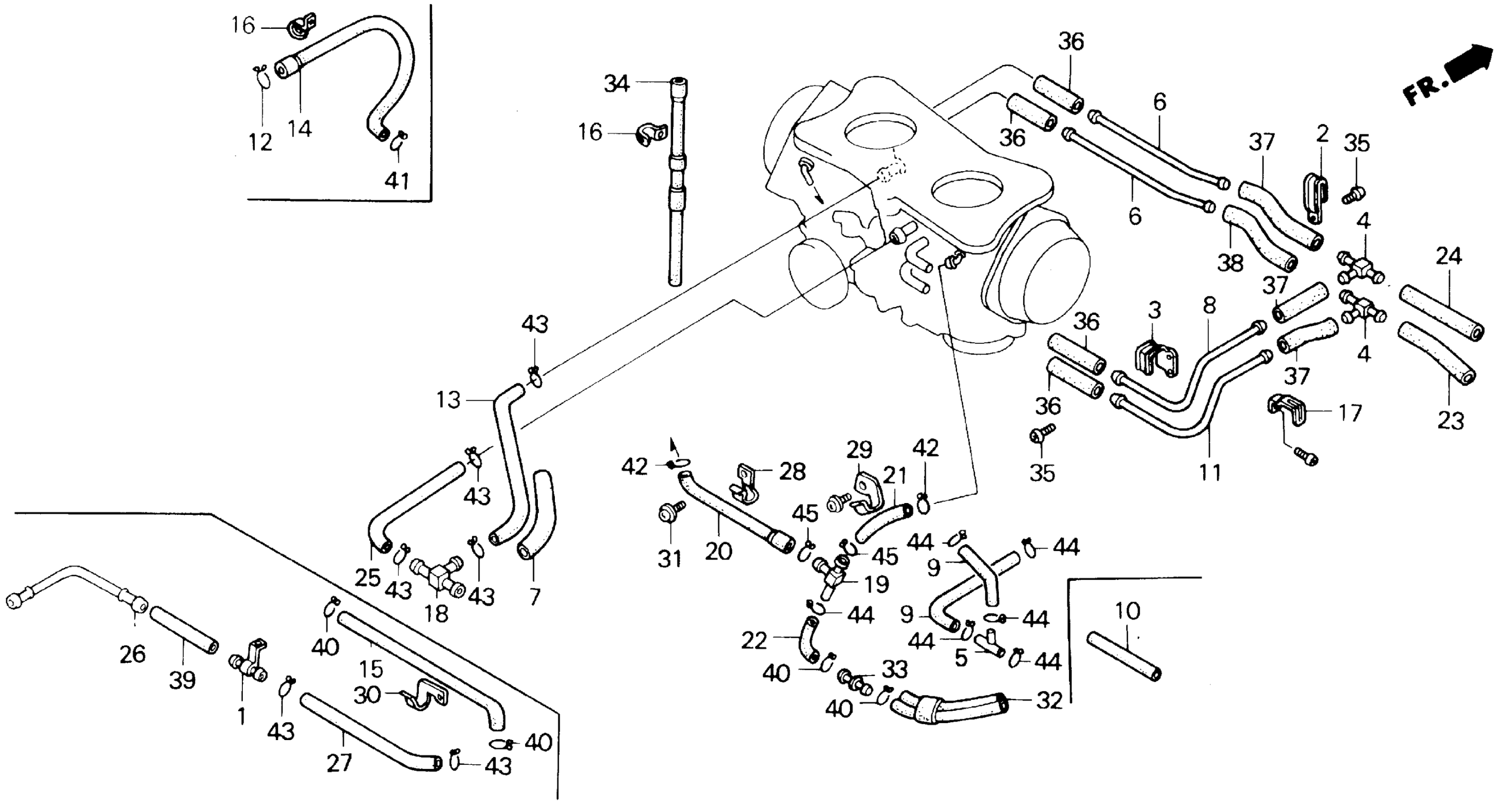

Honda GL1500A (90) GOLD WING, USA, VIN# 1HFSC220-LA200001 TO 1HFSC220-LA203608 TUBING (1) 90 Diagram

#

Description
Price

2

BINDER

16134-MT8-000

Unavailable

3

BINDER

16135-MT8-000

Unavailable

4

T-JOINT

16180-MT8-000

Unavailable

5

T-JOINT

16180-195-731

$12.95

6

TUBE

16197-MT8-000

Unavailable

7

TUBE

16198-MN5-000

Unavailable

8

TUBE

16198-MT8-000

Unavailable

9

TUBE, AIR VENT This part replaces 16199-GG2-701.

16199-428-405

$3.10

9

TUBE, DRAIN

16199-428-405

$3.10

11

TUBE

16199-MT8-000

Unavailable

13

TUBE, FUEL

17180-MN5-000

$11.73

16

CLIP, PLATE

17191-MN5-740

Unavailable

17

CLIP, PLATE

17191-MT2-740

$3.70

18

T-JOINT

17193-MT2-000

$13.16

19

T-JOINT

17194-MT2-000

Unavailable

20

TUBE

17282-MT2-000

Unavailable

21

TUBE

17283-MT2-000

Unavailable

22

TUBE

17285-MT2-010

Unavailable

23

TUBE, AIR PRIMARY (F)

17288-MN5-010

Unavailable

24

TUBE, AIR PRIMARY (E)

17289-MN5-000

$13.92

25

TUBE, FUEL

16143-KV0-405

$7.11

25

TUBE This part replaces 17290-MN5-000.

16143-KV0-405

$7.11

28

BINDER

17312-MT2-000

Unavailable

29

BINDER

17313-MT2-000

Unavailable

31

SCREW-WASHER

17315-MT2-000

Unavailable

32

TUBE, DRAIN

17316-MT2-010

Unavailable

33

JOINT (3.5) (TWO-WAY)

17414-PC6-660

$6.45

34

TUBE

17458-MT2-000

Unavailable

35

SCREW-WASHER (5X10)

93892-05010-00

$1.49

35

SCREW-WASHER (5X10) This part replaces 93892-05010-10.

93892-05010-00

$1.49

36

BULK HOSE, FUEL (4.5X3000) (4.5X30)

95001-45003-60M

$36.67

37

BULK HOSE, FUEL (4.5X3000) (95001-4500(95001-45001-60M)

95001-45003-60M

$36.67

38

BULK HOSE, FUEL (4.5X3000) (4.5X50)

95001-45003-60M

$36.67

40

CLIP, TUBE (B7)

95002-02070

$1.80

42

CLIP, TUBE (B10)

95002-02100

$1.90

43

CLIP, TUBE (B12)

95002-02120

$2.00

44

CLIP, TUBE (B6.5)

95002-02650

$1.49

45

CLIP, TUBE (C11)

95002-70000

$1.56
